Small overlap front: driver-side
Rating applies to 2015-17 models

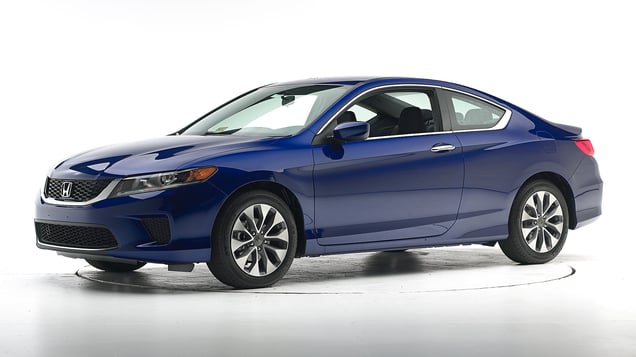

Tested vehicle: 2015 Honda Accord LX-S 2-door
The Honda Accord was redesigned for the 2013 model year. Beginning with 2015 2-door models, the frontal airbag programming was changed to improve occupant protection in small overlap frontal crashes.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1443 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 14 |
| Footrest (cm) | 10 |
| Left toepan (cm) | 5 |
| Brake pedal (cm) | 5 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 3 |
| Upper occupant compartment | |
| Steering column | 1 |
| Upper hinge pillar max (cm) | 3 |
| Upper dash (cm) | 3 |
| Lower instrument panel (cm) | 2 |
Driver injury measures
| Test ID | CEN1443 |
|---|---|
| Head | |
| HIC-15 | 270 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 11 |
| Maximum Nij | 0.19 |
| Chest maximum compression (mm) | 22 |
| Femur (kN) | |
| Left | 0.3 |
| Right | 0.2 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.48 |
| Right | 0.60 |
| Tibia axial force (kN) | |
| Left | 1.2 |
| Right | 2.2 |
| Foot acceleration (g) | |
| Left | 44 |
| Right | 63 |
Moderate overlap front: original test
Rating applies to 2013-17 models
Tested vehicle: 2013 Honda Accord LX-S 2-door
The Honda Accord was redesigned for the 2013 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1209 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 11 |
| Center (cm) | 9 |
| Right (cm) | 8 |
| Brake pedal (cm) | 7 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | 2 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | VTF1209 |
|---|---|
| Head | |
| HIC-15 | 141 |
| Peak gs at hard contact | no data |
| Neck | |
| Tension (kN) | 0.8 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.21 |
| Chest maximum compression (mm) | 27 |
| Legs | |
| Femur force - left (kN) | 1.0 |
| Femur force - right (kN) | 0.5 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.35 |
| Maximum tibia index - right | 0.45 |
| Tibia axial force - left (kN) | 1.9 |
| Tibia axial force - right (kN) | 2.9 |
| Foot acceleration (g) | |
| Left | 59 |
| Right | 77 |
Side: original test
Rating applies to 2013-17 models
Tested vehicle: 2013 Honda Accord EX 2-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Honda Accord was redesigned for the 2013 model year. Two side tests of the Accord were conducted, one by the Institute and the other by Honda. Ratings are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the Institute's crash test.
View of the vehicle after the crash with door removed, showing the side airbags and damage to the occupant compartment (Institute test car shown).
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag in the Institute's test.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1207 | CES1210 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 | -18.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | VTS1207 | CES1210 |
|---|---|---|
| Head HIC-15 | 223 | 180 |
| Neck | ||
| Tension (kN) | 1.0 | 1.0 |
| Compression (kN) | 0.4 | 0.2 |
| Shoulder | ||
| Lateral deflection (mm) | 42 | 36 |
| Lateral force (kN) | 1.5 | 1.4 |
| Torso | ||
| Maximum deflection (mm) | 33 | 26 |
| Average deflection (mm) | 26 | 24 |
| Maximum deflection rate (m/s) | 3.82 | 4.11 |
| Maximum viscous criterion (m/s) | 0.42 | 0.40 |
| Pelvis | ||
| Iliac force (kN) | 1.5 | 1.3 |
| Acetabulum force (kN) | 2.6 | 2.2 |
| Combined force (kN) | 3.7 | 3.3 |
| Left femur | ||
| L-M force (kN) | 1.3 | 1.0 |
| L-M moment (Nm) | 205 | 195 |
| A-P moment (Nm) | 48 | 25 |
Passenger injury measures
| Test ID | VTS1207 | CES1210 |
|---|---|---|
| Head HIC-15 | 131 | 127 |
| Neck | ||
| Tension (kN) | 0.2 | 0.3 |
| Compression (kN) | 0.8 | 0.8 |
| Shoulder | ||
| Lateral deflection (mm) | 22 | 29 |
| Lateral force (kN) | 1.1 | 1.4 |
| Torso | ||
| Maximum deflection (mm) | 30 | 25 |
| Average deflection (mm) | 23 | 17 |
| Maximum deflection rate (m/s) | 4.94 | 1.86 |
| Maximum viscous criterion (m/s) | 0.45 | 0.23 |
| Pelvis | ||
| Iliac force (kN) | 0.5 | 0.2 |
| Acetabulum force (kN) | 2.1 | 1.6 |
| Combined force (kN) | 2.3 | 1.8 |
| Left femur | ||
| L-M force (kN) | 0.5 | 0.4 |
| L-M moment (Nm) | 92 | 60 |
| A-P moment (Nm) | 52 | 51 |
Roof strength
Rating applies to 2013-17 models
Tested vehicle: 2013 Honda Accord LX-S 2-door
| Overall evaluation | |
|---|---|
| Curb weight | 3,240 lbs |
| Peak force | 15,048 lbs |
| Strength-to-weight ratio | 4.64 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 30 |
| Distance below top of head (mm) | 30 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 11.3 |
| Head contact time (ms) | 62 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 430 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
