Top Safety Pick

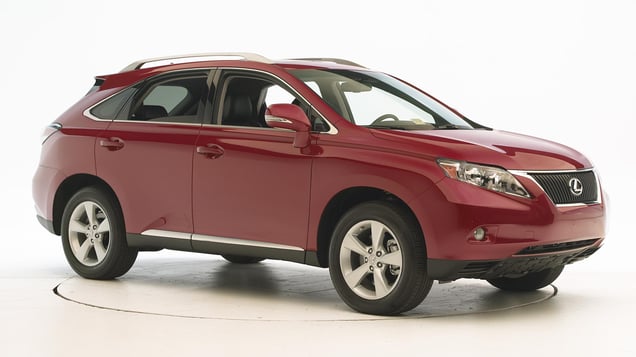

2014 Lexus RX

midsize luxury SUV / 4-door SUV

Crashworthiness

Rating overview
Evaluation criteria	Rating
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Evaluation criteria	Rating
Front crash prevention: vehicle-to-vehicle
Optional system	Not tested

Other available safety features

Optional blind spot detection

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2010-15 models

Tested vehicle: 2010 Lexus RX 350 4-door 4wd

The Lexus RX was redesigned for the 2010 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTF0823
Footwell intrusion
Footrest (cm)	10
Left (cm)	8
Center (cm)	7
Right (cm)	6
Brake pedal (cm)	2
Instrument panel rearward movement
Left (cm)	0
Right (cm)	0
Steering column movement
Upward (cm)	-2
Rearward (cm)	-3
A-pillar rearward movement (cm)	0

Evaluation criteria	Measurement
Test ID	VTF0823
Head
HIC-15	207
Peak gs at hard contact	16
Neck
Tension (kN)	1.5
Extension bending moment (Nm)	16
Maximum Nij	0.33
Chest maximum compression (mm)	33
Legs
Femur force - left (kN)	1.0
Femur force - right (kN)	1.2
Knee displacement - left (mm)	1
Knee displacement - right (mm)	2
Maximum tibia index - left	0.57
Maximum tibia index - right	0.31
Tibia axial force - left (kN)	2.5
Tibia axial force - right (kN)	2.4
Foot acceleration (g)
Left	49
Right	61

About the original moderate overlap front test

Side: original test

Rating applies to 2013-15 models

Tested vehicle: 2015 Lexus RX 350 4-door 4wd with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags

The Lexus RX was redesigned for the 2010 model year. Beginning with 2013 models, design changes were made to the side curtain airbags and rear door trim panels to improve occupant protection in side impact crashes. Beginning with 2015 models, the side curtain airbags were extended farther forward, but this change does not affect performance in the Institute's side impact test.

Three tests of the RX were conducted by Toyota, one a 2010 model, the second a 2013 model, and the third was designated as a 2011 model but included all of the design changes of the 2013 and 2015 models. Side ratings are assigned by the Institute. Ratings for the 2013 and 2015 models are combined, but the structure rating is based on all three tests because there were no structural changes.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Technical measurements for this test

Test ID	VTS0803	VTS1208	VTS1319
B-pillar to longitudinal centerline of driver's seat (cm)	-17.5	-17.0	-16.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS1208	VTS1319
Head HIC-15	284	203
Neck
Tension (kN)	1.0	0.3
Compression (kN)	0.1	0.8
Shoulder
Lateral deflection (mm)	25	26
Lateral force (kN)	1.4	1.5
Torso
Maximum deflection (mm)	27	31
Average deflection (mm)	24	24
Maximum deflection rate (m/s)	3.06	3.20
Maximum viscous criterion (m/s)	0.25	0.36
Pelvis
Iliac force (kN)	1.5	1.5
Acetabulum force (kN)	1.4	1.2
Combined force (kN)	2.8	2.7
Left femur
L-M force (kN)	0.3	0.6
L-M moment (Nm)	65	94
A-P moment (Nm)	29	49

Evaluation criteria	Measurement
Test ID	VTS1208	VTS1319
Head HIC-15	68	33
Neck
Tension (kN)	0.1	0.2
Compression (kN)	0.2	0.2
Shoulder
Lateral deflection (mm)	9	15
Lateral force (kN)	0.7	0.7
Torso
Maximum deflection (mm)	29	25
Average deflection (mm)	17	18
Maximum deflection rate (m/s)	2.33	3.60
Maximum viscous criterion (m/s)	0.32	0.26
Pelvis
Iliac force (kN)	0.8	0.4
Acetabulum force (kN)	0.8	0.7
Combined force (kN)	1.6	0.9
Left femur
L-M force (kN)	1.0	0.8
L-M moment (Nm)	174	226
A-P moment (Nm)	65	77

About the original side crash test

Roof strength

Rating applies to 2010-15 models

Tested vehicle: 2010 Lexus RX 350 4-door 4wd

Overall evaluation
Curb weight	4,367 lbs
Peak force	18,634 lbs
Strength-to-weight ratio	4.27

About the roof strength test

Head restraints & seats

Seat type: All seats AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	All seats AHR
Geometry
Backset (mm)	28
Distance below top of head (mm)	36
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	11.7
Head contact time (ms)	69
Force rating	1
Neck forces
Max neck shear force (N)	14
Max neck tension (N)	456

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Front crash prevention: vehicle-to-vehicle

System details

Optional Pre-Collision System

Package name

Optional Pre-Collision System

Overall evaluation

Applies to 2014 models

This system meets the requirements for forward collision warning.
Autobrake not tested.

About the original front crash prevention test
