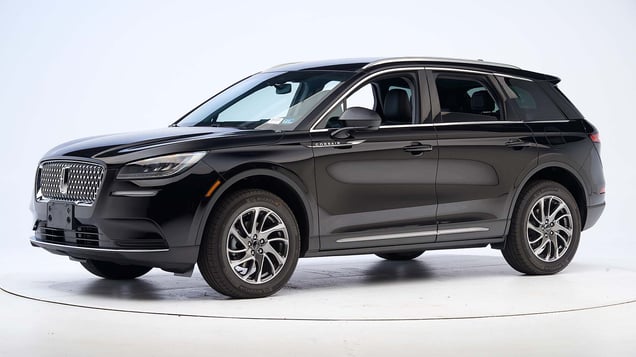

2024 Lincoln Corsair

small SUV / 4-door SUV

Crashworthiness

Rating overview
Evaluation criteria	Rating
Small overlap front
Moderate overlap front: original test
Side: original test
Side: updated test

Crash avoidance & mitigation

Evaluation criteria	Rating
Headlights (varies by trim/option)

Seat belts & child restraints

Evaluation criteria	Rating
LATCH ease of use	+

Other available safety features

Standard blind spot detection
Standard lane departure warning & prevention
Standard rear automatic braking

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front

The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.

Driver-side

Rating applies to 2020-25 models

Tested vehicle: 2020 Ford Escape SE 4-door 4wd

The Ford Escape was redesigned for the 2020 model year, and the Lincoln Corsair was introduced in the same model year. The Corsair replaces the Lincoln MKC.

Evaluation criteria	Rating
Overall driver-side evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEN1910
Lower occupant compartment
Lower hinge pillar max (cm)	2
Footrest (cm)	2
Left toepan (cm)	1
Brake pedal (cm)	1
Parking brake (cm)
Rocker panel lateral average (cm)	1
Upper occupant compartment
Steering column	0
Upper hinge pillar max (cm)	1
Upper dash (cm)	1
Lower instrument panel (cm)	1

Evaluation criteria	Measurement
Test ID	CEN1910
Head
HIC-15	80
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.0
Extension bending moment (Nm)	15
Maximum Nij	0.23
Chest maximum compression (mm)	24
Femur (kN)
Left	0.1
Right	0.0
Knee displacement (mm)
Left	1
Right	2
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.42
Right	0.33
Tibia axial force (kN)
Left	1.1
Right	0.1
Foot acceleration (g)
Left	43
Right	19

Passenger-side

Rating applies to 2020-25 models

Tested vehicle: 2020 Ford Escape SE 4-door 4wd

The Ford Escape was redesigned for the 2020 model year, and the Lincoln Corsair was introduced in the same model year. The Corsair replaces the Lincoln MKC. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Ford.

Evaluation criteria	Rating
Overall passenger-side evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTP1931
Lower occupant compartment
Lower hinge pillar max (cm)	7
Footrest (cm)	4
Right toepan (cm)	8
Center toepan (cm)	1
Rocker panel lateral average (cm)	0
Upper occupant compartment
Center dash (cm)	6
Upper hinge pillar max (cm)	9
Upper dash (cm)	9
Right lower dash (cm)	8

Evaluation criteria	Measurement
Test ID	VTP1931
Head
HIC-15	78
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	11
Maximum Nij	0.20
Chest maximum compression (mm)	21
Femur (kN)
Left	1.0
Right	4.8
Knee displacement (mm)
Left	2
Right	4
Knee-thigh-hip injury risk (%)
Left	0
Right	3
Maximum tibia index
Left	0.29
Right	0.39
Tibia axial force (kN)
Left	0.9
Right	0.7
Foot acceleration (g)
Left	75
Right	52

Evaluation criteria	Measurement
Test ID	VTP1931
Head
HIC-15	72
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	7
Maximum Nij	0.16
Chest maximum compression (mm)	25
Femur (kN)
Left	0.0
Right	0.1
Knee displacement (mm)
Left	1
Right	1
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.44
Right	0.21
Tibia axial force (kN)
Left	0.2
Right	0.2
Foot acceleration (g)
Left	19
Right	36

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2020-25 models

Tested vehicle: 2020 Ford Escape SE 4-door 4wd

The Ford Escape was redesigned for the 2020 model year, and the Lincoln Corsair was introduced in the same model year. The Corsair replaces the Lincoln MKC. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Ford.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTF1921
Footwell intrusion
Footrest (cm)	3
Left (cm)	6
Center (cm)	5
Right (cm)	4
Brake pedal (cm)	7
Instrument panel rearward movement
Left (cm)	-1
Right (cm)	0
Steering column movement
Upward (cm)	-1
Rearward (cm)	-1
A-pillar rearward movement (cm)	0

Evaluation criteria	Measurement
Test ID	VTF1921
Head
HIC-15	276
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	8
Maximum Nij	0.23
Chest maximum compression (mm)	25
Legs
Femur force - left (kN)	0.4
Femur force - right (kN)	0.5
Knee displacement - left (mm)	1
Knee displacement - right (mm)	1
Maximum tibia index - left	0.25
Maximum tibia index - right	0.34
Tibia axial force - left (kN)	1.9
Tibia axial force - right (kN)	2.5
Foot acceleration (g)
Left	57
Right	67

About the original moderate overlap front test

Side: original test

Rating applies to 2020-25 models

Tested vehicle: 2020 Ford Escape SE 4-door 4wd

The Ford Escape was redesigned for the 2020 model year, and the Lincoln Corsair was introduced in the same model year. The Corsair replaces the Lincoln MKC. Side ratings are assigned by the Institute based on a test conducted by Ford.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Technical measurements for this test

Test ID	VTS1922
B-pillar to longitudinal centerline of driver's seat (cm)	-22.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS1922
Head HIC-15	193
Neck
Tension (kN)	1.8
Compression (kN)	0.5
Shoulder
Lateral deflection (mm)	45
Lateral force (kN)	1.7
Torso
Maximum deflection (mm)	38
Average deflection (mm)	34
Maximum deflection rate (m/s)	4.06
Maximum viscous criterion (m/s)	0.78
Pelvis
Iliac force (kN)	1.0
Acetabulum force (kN)	1.6
Combined force (kN)	2.6
Left femur
L-M force (kN)	0.2
L-M moment (Nm)	71
A-P moment (Nm)	26

Evaluation criteria	Measurement
Test ID	VTS1922
Head HIC-15	108
Neck
Tension (kN)	0.4
Compression (kN)	0.1
Shoulder
Lateral deflection (mm)	37
Lateral force (kN)	1.2
Torso
Maximum deflection (mm)	32
Average deflection (mm)	27
Maximum deflection rate (m/s)	1.89
Maximum viscous criterion (m/s)	0.27
Pelvis
Iliac force (kN)	0.5
Acetabulum force (kN)	2.4
Combined force (kN)	2.4
Left femur
L-M force (kN)	0.1
L-M moment (Nm)	80
A-P moment (Nm)	17

About the original side crash test

Side: updated test

Rating applies to 2020-25 models

Tested vehicle: 2021 Ford Escape S 4-door 4wd

The Ford Escape was redesigned for the 2020 model year, and the Lincoln Corsair was introduced in the same model year. The Corsair replaces the Lincoln MKC.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection The dummy's head moved downward past the side curtain airbag and struck the window sill of the driver door hard, while the head was in proximity to the intruding barrier. Although the barrier did not hit the dummy's head in this test, this near miss indicates that only slightly different crash circumstances could produce a direct hit to a person's head. The head protection is inadequate.
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows that the driver dummy's head moved downward, past the side curtain airbag, and contacted the window sill (inset).

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbags.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CES2105
B-pillar to longitudinal centerline of driver's seat (cm)	-17.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	CES2105
Head
HIC-15	391
Peak gs at hard contact	93
Neck
Tension (kN)	1.7
Compression (kN)	0.1
Shoulder
Lateral deflection (mm)	28
Lateral force (kN)	1.0
Torso
Maximum deflection (mm)	45
Average deflection (mm)	39
Maximum deflection rate (m/s)	3.66
Maximum viscous criterion (m/s)	0.64
Pelvis
Combined force (kN)	5.2

Evaluation criteria	Measurement
Test ID	CES2105
Head
HIC-15	168
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.9
Compression (kN)	0.2
Shoulder
Lateral deflection (mm)	39
Lateral force (kN)	1.7
Torso
Maximum deflection (mm)	38
Average deflection (mm)	35
Maximum deflection rate (m/s)	2.34
Maximum viscous criterion (m/s)	0.41
Pelvis
Combined force (kN)	4.9

About the side crash test

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

Reserve trim equipped with Technology package
Grand Touring trim equipped with Elements Technology package

Evaluation criteria	Rating
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	Yes
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on the gradual left curve.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	Reserve trim equipped with Technology package Grand Touring trim equipped with Elements Technology package
Low-beam headlight type	LED projector
High-beam headlight type	LED projector
Curve-adaptive?	Yes
High-beam assist?	Yes
Overall rating Applies to 2020-25 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	143.7 m	6.5%
Straightaway left edge	65.1 m	6.5%
250m radius right curve, right edge	78.1 m	76.5%
250m radius left curve, right edge	67.6 m	None
150m radius right curve, right edge	68.2 m	148.9%
150m radius left curve, left edge	69.2 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	204.0 m
Straightaway left edge	165.8 m
250m radius right curve, right edge	93.1 m
250m radius left curve, left edge	98.7 m
150m radius right curve, right edge	73.5 m
150m radius left curve, left edge	74.7 m

Trim level(s)

Standard trim
Reserve trim
Grand Touring trim

Evaluation criteria	Rating
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair in all 4 tests.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual left curve and fair on the sharp left and both right curves.

High-beam assist compensates for some limitations of this vehicle's low beams on both left curves and on both right curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	Standard trim Reserve trim Grand Touring trim
Low-beam headlight type	LED reflector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2022-25 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	113.2 m	181.6%
Straightaway left edge	61.7 m	181.6%
250m radius right curve, right edge	60.7 m	27.7%
250m radius left curve, left edge	65.0 m	None
150m radius right curve, right edge	49.3 m	20.6%
150m radius left curve, left edge	50.1 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	165.8 m
Straightaway left edge	134.8 m
250m radius right curve, right edge	73.1 m
250m radius left curve, left edge	80.4 m
150m radius right curve, right edge	57.5 m
150m radius left curve, left edge	62.8 m

About the headlight evaluation

Child seat anchors

Rating applies to 2020-25 models

Evaluation criteria	Rating
Overall evaluation	+ extra LATCH positions
Vehicle trim	Reserve
Seat type	leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Evaluation criteria	Rating
Overall evaluation	+ extra LATCH positions
Vehicle trim	Reserve
Seat type	leather

Rating icon	Rating
G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

Position	Rating
1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	Can be borrowed from 1 and 3
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors

Technical measurements for this test

Lower anchor A
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	71
Lower anchor B
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	77
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	58
Lower anchor B
Open access rated	Yes
Depth	Visible
Force (lbs)	0
Clearance angle (degrees)	73
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	Yes
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

About the child seat anchor evaluation
