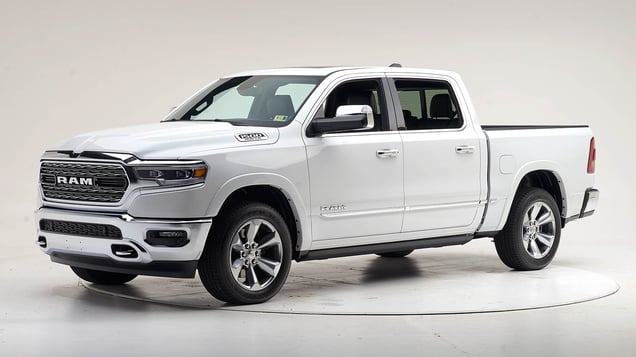

2020 Ram 1500
large pickup / Crew cab pickup
Award applies only to vehicles with optional front crash prevention and specific headlights
Small overlap front: driver-side
Rating applies to 2019-24 models built after July 2018
Tested vehicle: 2019 Ram 1500 Big Horn Crew Cab 2wd
The Ram 1500 Crew Cab was redesigned for the 2019 model year. The earlier design remained in production for the 2019-20 model years and was called the Ram 1500 Classic Crew Cab. The ratings on this page do not apply to the Classic.
For the redesigned pickup beginning with 2019 models built after July 2018, the cab mounts to the vehicle frame at the C-pillars were strengthened to improve occupant protection in small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
Two tests of the Ram 1500 Crew Cab were conducted by the Institute; vehicle specifications for the two trucks were identical. In the first test, Fiat Chrysler identified possible prior dummy ankle damage that may have caused elevated injury measures on the left lower leg. In the second test with a new ankle assembly installed, there were also indications of elevated left lower leg injury. Therefore, the ratings are based on combined results from both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the second of two driver-side small overlap frontal crash tests.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well (second test shown).
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury (second test shown).
Forces on the left lower leg were high enough to indicate a likely risk of injury in the first test (shown) and a moderate risk in the second test.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1809 | CEN1814 |
|---|---|---|
| Lower occupant compartment | ||
| Lower hinge pillar max (cm) | 3 | 2 |
| Footrest (cm) | 9 | 12 |
| Left toepan (cm) | 9 | 17 |
| Brake pedal (cm) | 7 | 10 |
| Parking brake (cm) | ||
| Rocker panel lateral average (cm) | 1 | 2 |
| Upper occupant compartment | ||
| Steering column | 2 | 3 |
| Upper hinge pillar max (cm) | 3 | 4 |
| Upper dash (cm) | 3 | 4 |
| Lower instrument panel (cm) | 3 | 3 |
Driver injury measures
| Test ID | CEN1809 | CEN1814 |
|---|---|---|
| Head | ||
| HIC-15 | 48 | 75 |
| Peak gs at hard contact | no contact | no contact |
| Neck | ||
| Tension (kN) | 0.5 | 0.8 |
| Extension bending moment (Nm) | 5 | 7 |
| Maximum Nij | 0.11 | 0.15 |
| Chest maximum compression (mm) | 17 | 21 |
| Femur (kN) | ||
| Left | 1.4 | 2.2 |
| Right | 0.3 | 0.5 |
| Knee displacement (mm) | ||
| Left | 3 | 7 |
| Right | 1 | 2 |
| Knee-thigh-hip injury risk (%) | ||
| Left | 0 | 0 |
| Right | 0 | 0 |
| Maximum tibia index | ||
| Left | 1.47 | 0.93 |
| Right | 0.50 | 0.43 |
| Tibia axial force (kN) | ||
| Left | 5.0 | 4.1 |
| Right | 1.5 | 1.3 |
| Foot acceleration (g) | ||
| Left | 133 | 94 |
| Right | 31 | 36 |
Small overlap front: passenger-side
Rating applies to 2019-24 models built after July 2018
Tested vehicle: 2019 Ram1500 Tradesman Crew Cab 2wd
The Ram 1500 Crew Cab was redesigned for the 2019 model year. The earlier design remained in production for the 2019-20 model years and was called the Ram 1500 Classic Crew Cab. The ratings on this page do not apply to the Classic.
For the redesigned pickup beginning with 2019 models built after July 2018, the cab mounts to the vehicle frame at the C-pillars were strengthened to improve occupant protection in small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the passenger-side small overlap frontal crash test.
The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was maintained reasonably well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
Despite intrusion of the toepan and dashboard, risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on passenger side
| Test ID | CEP1819 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 8 |
| Footrest (cm) | 23 |
| Right toepan (cm) | 20 |
| Center toepan (cm) | 11 |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Center dash (cm) | 3 |
| Upper hinge pillar max (cm) | 6 |
| Upper dash (cm) | 7 |
| Right lower dash (cm) | 6 |
Passenger injury measures
| Test ID | CEP1819 |
|---|---|
| Head | |
| HIC-15 | 173 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.6 |
| Extension bending moment (Nm) | 5 |
| Maximum Nij | 0.11 |
| Chest maximum compression (mm) | 13 |
| Femur (kN) | |
| Left | 2.7 |
| Right | 1.6 |
| Knee displacement (mm) | |
| Left | 10 |
| Right | 3 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.67 |
| Right | 0.73 |
| Tibia axial force (kN) | |
| Left | 2.2 |
| Right | 2.9 |
| Foot acceleration (g) | |
| Left | 106 |
| Right | 100 |
Driver injury measures
| Test ID | CEP1819 |
|---|---|
| Head | |
| HIC-15 | 22 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.7 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.22 |
| Chest maximum compression (mm) | 22 |
| Femur (kN) | |
| Left | 0.0 |
| Right | 1.7 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 6 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.28 |
| Right | 0.55 |
| Tibia axial force (kN) | |
| Left | 0.1 |
| Right | 0.7 |
| Foot acceleration (g) | |
| Left | 42 |
| Right | 37 |
Moderate overlap front: original test
Rating applies to 2019-24 models
Tested vehicle: 2019 Ram 1500 Big Horn Crew Cab 2wd
The Ram 1500 Crew Cab was redesigned for the 2019 model year. The earlier design remained in production for the 2019-20 model years and was called the Ram 1500 Classic Crew Cab. The ratings on this page do not apply to the Classic.
Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1819 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 10 |
| Center (cm) | 11 |
| Right (cm) | 3 |
| Brake pedal (cm) | 3 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 3 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF1819 |
|---|---|
| Head | |
| HIC-15 | 135 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.6 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.18 |
| Chest maximum compression (mm) | 25 |
| Legs | |
| Femur force - left (kN) | 2.3 |
| Femur force - right (kN) | 1.0 |
| Knee displacement - left (mm) | 5 |
| Knee displacement - right (mm) | 5 |
| Maximum tibia index - left | 0.53 |
| Maximum tibia index - right | 0.62 |
| Tibia axial force - left (kN) | 2.5 |
| Tibia axial force - right (kN) | 2.9 |
| Foot acceleration (g) | |
| Left | 88 |
| Right | 68 |
Side: original test
Rating applies to 2019-23 models
Tested vehicle: 2019 Ram 1500 Big Horn Crew Cab 2wd
The Ram 1500 Crew Cab was redesigned for the 2019 model year. The earlier design remained in production for the 2019-20 model years and was called the Ram 1500 Classic Crew Cab. The ratings on this page do not apply to the Classic.
Side ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1816 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1816 |
|---|---|
| Head HIC-15 | 147 |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.5 |
| Shoulder | |
| Lateral deflection (mm) | 28 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 36 |
| Average deflection (mm) | 34 |
| Maximum deflection rate (m/s) | 3.80 |
| Maximum viscous criterion (m/s) | 0.67 |
| Pelvis | |
| Iliac force (kN) | 1.7 |
| Acetabulum force (kN) | 2.0 |
| Combined force (kN) | 3.7 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 154 |
| A-P moment (Nm) | -19 |
Passenger injury measures
| Test ID | VTS1816 |
|---|---|
| Head HIC-15 | 71 |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 33 |
| Lateral force (kN) | 1.5 |
| Torso | |
| Maximum deflection (mm) | 27 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 3.14 |
| Maximum viscous criterion (m/s) | 0.32 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 1.8 |
| Combined force (kN) | 2.1 |
| Left femur | |
| L-M force (kN) | 0.2 |
| L-M moment (Nm) | 19 |
| A-P moment (Nm) | -41 |
Side: updated test
Rating applies to 2019-24 models
Tested vehicle: 2023 Ram 1500 Big Horn Crew Cab 4wd
The Ram 1500 Crew Cab was redesigned for the 2019 model year. The earlier design remained in production for the 2019-20 model years and was called the Ram 1500 Classic Crew Cab. The ratings on this page do not apply to the Classic.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES2310 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES2310 |
|---|---|
| Head | |
| HIC-15 | 27 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 0.5 |
| Shoulder | |
| Lateral deflection (mm) | 12 |
| Lateral force (kN) | 0.6 |
| Torso | |
| Maximum deflection (mm) | 15 |
| Average deflection (mm) | 12 |
| Maximum deflection rate (m/s) | 2.57 |
| Maximum viscous criterion (m/s) | 0.10 |
| Pelvis | |
| Combined force (kN) | 2.7 |
Passenger injury measures
| Test ID | CES2310 |
|---|---|
| Head | |
| HIC-15 | 58 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 40 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 21 |
| Average deflection (mm) | 14 |
| Maximum deflection rate (m/s) | 2.57 |
| Maximum viscous criterion (m/s) | 0.28 |
| Pelvis | |
| Combined force (kN) | 2.6 |
Roof strength
Rating applies to 2019-23 models
Tested vehicle: 2019 Ram 1500 Laramie Crew Cab 2wd
Rating applies to both the Ram 1500 Crew Cab (tested) and the structurally similar Ram 1500 Quad Cab.
| Overall evaluation | |
|---|---|
| Curb weight | 5,254 lbs |
| Peak force | 22,302 lbs |
| Strength-to-weight ratio | 4.24 |
Head restraints & seats
Seat type: Power leather seat
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power leather seat |
|---|---|
| Geometry | |
| Backset (mm) | 18 |
| Distance below top of head (mm) | 44 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 11.3 |
| Head contact time (ms) | 51 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 498 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 4 different headlight variations available on this vehicle.
Trim level(s)
- Laramie Longhorn trim
- Limited trim
| Low-beam headlight type | LED projector |
|---|---|
| High-beam headlight type | LED projector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual left and both right curves and fair on the sharp left curve.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED projector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating Applies to 2019-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 89.3 m | None |
| Straightaway left edge | 52.3 m | None |
| 250m radius right curve, right edge | 86.1 m | None |
| 250m radius left curve, left edge | 54.4 m | None |
| 150m radius right curve, right edge | 73.4 m | None |
| 150m radius left curve, left edge | 51.7 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 148.5 m |
| Straightaway left edge | 141.9 m |
| 250m radius right curve, right edge | 91.9 m |
| 250m radius left curve, left edge | 75.3 m |
| 150m radius right curve, right edge | 74.5 m |
| 150m radius left curve, left edge | 59.4 m |
Trim level(s)
- Tradesman trim
- Big Horn trim
- Lone Star trim
| Low-beam headlight type | Halogen reflector |
|---|---|
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was inadequate in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | Halogen reflector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2019-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 84.2 m | None |
| Straightaway left edge | 60.2 m | None |
| 250m radius right curve, right edge | 52.4 m | None |
| 250m radius left curve, left edge | 51.6 m | None |
| 150m radius right curve, right edge | 40.1 m | None |
| 150m radius left curve, left edge | 43.4 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 146.6 m |
| Straightaway left edge | 143.4 m |
| 250m radius right curve, right edge | 59.1 m |
| 250m radius left curve, left edge | 59.4 m |
| 150m radius right curve, right edge | 44.8 m |
| 150m radius left curve, left edge | 47.8 m |
Trim level(s)
- Laramie trim equipped with Laramie 1 Equipment Group package
- Laramie trim equipped with Laramie 2 Equipment Group package
- Laramie trim equipped with Advanced Safety Group package
- Rebel trim equipped with Safety/Convenience Group package
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was good on the sharp right curve, fair on the gradual right curve and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2019-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 68.5 m | None |
| Straightaway left edge | 47.9 m | None |
| 250m radius right curve, right edge | 64.6 m | None |
| 250m radius left curve, left edge | 46.3 m | None |
| 150m radius right curve, right edge | 56.9 m | None |
| 150m radius left curve, left edge | 44.6 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 146.0 m |
| Straightaway left edge | 128.4 m |
| 250m radius right curve, right edge | 72.2 m |
| 250m radius left curve, left edge | 58.1 m |
| 150m radius right curve, right edge | 59.6 m |
| 150m radius left curve, left edge | 48.3 m |
Trim level(s)
- Big Horn trim equipped with Premium Lighting Group package
- Rebel trim
- Laramie trim
- Lone Star trim equipped with Premium Lighting Group package
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was good on the sharp right curve, fair on the gradual right curve and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2019-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 68.5 m | None |
| Straightaway left edge | 47.9 m | None |
| 250m radius right curve, right edge | 64.6 m | None |
| 250m radius left curve, left edge | 46.3 m | None |
| 150m radius right curve, right edge | 56.9 m | None |
| 150m radius left curve, left edge | 44.6 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 146.0 m |
| Straightaway left edge | 128.4 m |
| 250m radius right curve, right edge | 72.2 m |
| 250m radius left curve, left edge | 58.1 m |
| 150m radius right curve, right edge | 59.6 m |
| 150m radius left curve, left edge | 48.3 m |
Front crash prevention: vehicle-to-vehicle
Child seat anchors
Rating applies to 2019-24 models
| Overall evaluation | |
| Vehicle trim | Limited Crew Cab |
| Seat type | leather |
This vehicle has 3 rear seating positions with complete child seat attachment (LATCH) hardware.
| Overall evaluation | |
| Vehicle trim | Limited Crew Cab |
| Seat type | leather |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 3 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 5 |
| Clearance angle (degrees) | 75 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 2 |
| Clearance angle (degrees) | 71 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 13 |
| Clearance angle (degrees) | 71 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 29 |
| Clearance angle (degrees) | 60 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 8 |
| Clearance angle (degrees) | 66 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 7 |
| Clearance angle (degrees) | 66 |
| Tether anchor | |
| Location | Back wall |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
