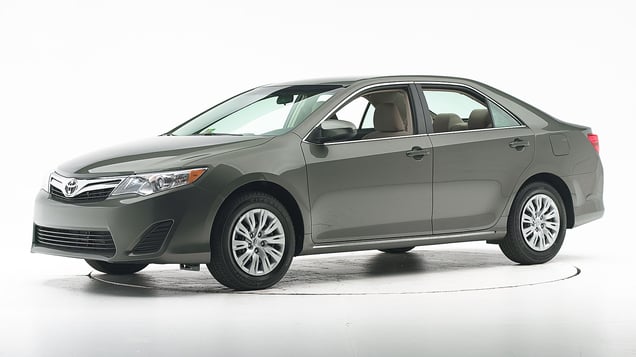

2014 Toyota Camry
midsize car / 4-door sedan
Award applies only to vehicles built after December 2013
Small overlap front: driver-side
Rating applies to 2014 models built after December 2013
Tested vehicle: 2014 Toyota Camry LE 4-door
The Toyota Camry was redesigned for the 2012 model year. Beginning with 2014 models built after December 2013, the front structure was modified to improve occupant protection in small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.) The 2014 cars with the modifications were listed as "2014.5" models on their original window stickers.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head contacted the frontal airbag but nearly slid off the left side, leaving the head vulnerable to contact with forward side structure. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
The dummy’s head contacted the frontal airbag but then nearly slid off the left side. The side curtain airbag did not extend far enough forward toward the A-pillar to protect the head from contact with forward side structure.
Except for door hinge pillar deformation and parking brake pedal movement (pedal not visible), intrusion into the driver's space was reasonably well controlled, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1349 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 16 |
| Footrest (cm) | 8 |
| Left toepan (cm) | 5 |
| Brake pedal (cm) | 6 |
| Parking brake (cm) | 17 |
| Rocker panel lateral average (cm) | 2 |
| Upper occupant compartment | |
| Steering column | 2 |
| Upper hinge pillar max (cm) | 8 |
| Upper dash (cm) | 10 |
| Lower instrument panel (cm) | 9 |
Driver injury measures
| Test ID | CEN1349 |
|---|---|
| Head | |
| HIC-15 | 126 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.4 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.30 |
| Chest maximum compression (mm) | 20 |
| Femur (kN) | |
| Left | 1.5 |
| Right | 1.0 |
| Knee displacement (mm) | |
| Left | 3 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.80 |
| Right | 0.40 |
| Tibia axial force (kN) | |
| Left | 3.6 |
| Right | 2.1 |
| Foot acceleration (g) | |
| Left | 52 |
| Right | 35 |
Rating applies to 2012-14 models built before January 2014
Tested vehicle: 2012 Toyota Camry LE 4-door
The Toyota Camry was redesigned for the 2012 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 19 cm to the right, resulting in little airbag cushioning for the chest. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso, contributing to the head hitting the instrument panel. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects. The side torso airbag deployed. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
During the crash, the dummy's head barely contacted the frontal airbag before sliding off to the left as the steering column moved to the right. The seat belt allowed the dummy to move too far forward, as is evident from the gap between the seat back and the dummy's torso, and the head hit the instrument panel. The side curtain airbag did not extend far enough forward toward the A-pillar.
Intrusion into the occupant compartment was extensive. The door hinge pillar began to tear as the wheel and tire was pushed back, and this intrusion combined with that of the parking brake pedal and instrument panel contributed to a moderate risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1215 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 37 |
| Footrest (cm) | 17 |
| Left toepan (cm) | 9 |
| Brake pedal (cm) | 8 |
| Parking brake (cm) | 31 |
| Rocker panel lateral average (cm) | 6 |
| Upper occupant compartment | |
| Steering column | 7 |
| Upper hinge pillar max (cm) | 19 |
| Upper dash (cm) | 25 |
| Lower instrument panel (cm) | 21 |
Driver injury measures
| Test ID | CEN1215 |
|---|---|
| Head | |
| HIC-15 | 100 |
| Peak gs at hard contact | 36 |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.26 |
| Chest maximum compression (mm) | 19 |
| Femur (kN) | |
| Left | 3.4 |
| Right | 2.4 |
| Knee displacement (mm) | |
| Left | 9 |
| Right | 4 |
| Knee-thigh-hip injury risk (%) | |
| Left | 1 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.83 |
| Right | 0.60 |
| Tibia axial force (kN) | |
| Left | 1.8 |
| Right | 3.8 |
| Foot acceleration (g) | |
| Left | 57 |
| Right | 61 |
Moderate overlap front: original test
Rating applies to 2012-17 models
Tested vehicle: 2012 Toyota Camry LE 4-door
The Toyota Camry was redesigned for the 2012 model year. Frontal ratings are assigned by the Institute based on a test conducted by Toyota.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1109 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 9 |
| Left (cm) | 8 |
| Center (cm) | 5 |
| Right (cm) | 6 |
| Brake pedal (cm) | 7 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | VTF1109 |
|---|---|
| Head | |
| HIC-15 | 115 |
| Peak gs at hard contact | 25 |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 26 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 24 |
| Legs | |
| Femur force - left (kN) | 1.6 |
| Femur force - right (kN) | 2.3 |
| Knee displacement - left (mm) | 3 |
| Knee displacement - right (mm) | 2 |
| Maximum tibia index - left | 0.42 |
| Maximum tibia index - right | 0.38 |
| Tibia axial force - left (kN) | 2.5 |
| Tibia axial force - right (kN) | 3.9 |
| Foot acceleration (g) | |
| Left | 43 |
| Right | 72 |
Side: original test
Rating applies to 2012-17 models
Tested vehicle: 2012 Toyota Camry SE 4-door with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags
The Toyota Camry was redesigned for the 2012 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1106 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -12.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1106 |
|---|---|
| Head HIC-15 | 312 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 39 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 29 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 3.48 |
| Maximum viscous criterion (m/s) | 0.31 |
| Pelvis | |
| Iliac force (kN) | 2.0 |
| Acetabulum force (kN) | 1.8 |
| Combined force (kN) | 3.7 |
| Left femur | |
| L-M force (kN) | 0.4 |
| L-M moment (Nm) | 88 |
| A-P moment (Nm) | 44 |
Passenger injury measures
| Test ID | VTS1106 |
|---|---|
| Head HIC-15 | 52 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 14 |
| Lateral force (kN) | 0.4 |
| Torso | |
| Maximum deflection (mm) | 21 |
| Average deflection (mm) | 18 |
| Maximum deflection rate (m/s) | 3.81 |
| Maximum viscous criterion (m/s) | 0.16 |
| Pelvis | |
| Iliac force (kN) | 0.7 |
| Acetabulum force (kN) | 1.4 |
| Combined force (kN) | 1.9 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 183 |
| A-P moment (Nm) | 41 |
Roof strength
Rating applies to 2012-17 models
Tested vehicle: 2012 Toyota Camry LE 4-door
| Overall evaluation | |
|---|---|
| Curb weight | 3,167 lbs |
| Peak force | 15,148 lbs |
| Strength-to-weight ratio | 4.78 |
Head restraints & seats
Seat type: Power cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 37 |
| Distance below top of head (mm) | 33 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.1 |
| Head contact time (ms) | 57 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 406 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
