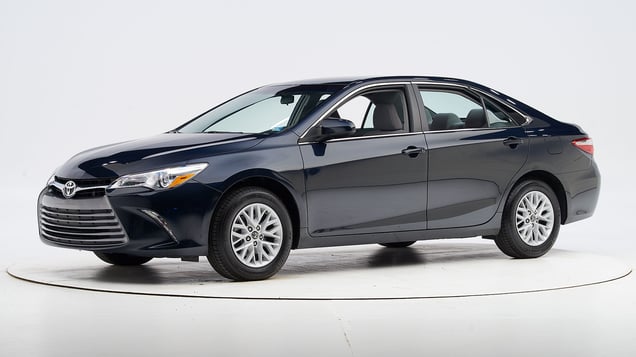

2017 Toyota Camry

Rating overview
Evaluation criteria	Rating
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Evaluation criteria	Rating
Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Optional system	Advanced

Evaluation criteria	Rating
LATCH ease of use

Small overlap front: driver-side

Rating applies to 2015-17 models

Tested vehicle: 2014 Toyota Camry LE 4-door

The Toyota Camry was redesigned for the 2012 model year. Beginning with 2014 models built after December 2013, the front structure was modified to improve occupant protection in small overlap frontal crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Beginning with 2015 models, the side curtain airbags were lengthened to further improve occupant protection in this same type of crash. Assessment of side airbag coverage is determined by the Institute based on a test of a 2015 model Camry conducted by Toyota. All other assessments, ratings, and vehicle specifications are based on an Institute test of a 2014 model Camry built after the front structure was modified.

Evaluation criteria	Rating

Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the Institute's small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well in the Institute's test.

Except for door hinge pillar deformation and parking brake pedal movement (pedal not visible), intrusion into the driver's space was reasonably well controlled, and risk of injuries to the dummy's legs and feet was low (Institute test car shown).

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEN1349
Lower occupant compartment
Lower hinge pillar max (cm)	16
Footrest (cm)	8
Left toepan (cm)	5
Brake pedal (cm)	6
Parking brake (cm)	17
Rocker panel lateral average (cm)	2
Upper occupant compartment
Steering column	2
Upper hinge pillar max (cm)	8
Upper dash (cm)	10
Lower instrument panel (cm)	9

Evaluation criteria	Measurement
Test ID	CEN1349
Head
HIC-15	126
Peak gs at hard contact	no contact
Neck
Tension (kN)	1.4
Extension bending moment (Nm)	22
Maximum Nij	0.30
Chest maximum compression (mm)	20
Femur (kN)
Left	1.5
Right	1.0
Knee displacement (mm)
Left	3
Right	1
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.80
Right	0.40
Tibia axial force (kN)
Left	3.6
Right	2.1
Foot acceleration (g)
Left	52
Right	35

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2012-17 models

Tested vehicle: 2012 Toyota Camry LE 4-door

The Toyota Camry was redesigned for the 2012 model year. Frontal ratings are assigned by the Institute based on a test conducted by Toyota.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTF1109
Footwell intrusion
Footrest (cm)	9
Left (cm)	8
Center (cm)	5
Right (cm)	6
Brake pedal (cm)	7
Instrument panel rearward movement
Left (cm)	2
Right (cm)	1
Steering column movement
Upward (cm)	-1
Rearward (cm)	-4
A-pillar rearward movement (cm)	2

Evaluation criteria	Measurement
Test ID	VTF1109
Head
HIC-15	115
Peak gs at hard contact	25
Neck
Tension (kN)	1.2
Extension bending moment (Nm)	26
Maximum Nij	0.25
Chest maximum compression (mm)	24
Legs
Femur force - left (kN)	1.6
Femur force - right (kN)	2.3
Knee displacement - left (mm)	3
Knee displacement - right (mm)	2
Maximum tibia index - left	0.42
Maximum tibia index - right	0.38
Tibia axial force - left (kN)	2.5
Tibia axial force - right (kN)	3.9
Foot acceleration (g)
Left	43
Right	72

About the original moderate overlap front test

Side: original test

Rating applies to 2012-17 models

Tested vehicle: 2012 Toyota Camry SE 4-door with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags

The Toyota Camry was redesigned for the 2012 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Technical measurements for this test

Test ID	VTS1106
B-pillar to longitudinal centerline of driver's seat (cm)	-12.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS1106
Head HIC-15	312
Neck
Tension (kN)	0.9
Compression (kN)	0.2
Shoulder
Lateral deflection (mm)	39
Lateral force (kN)	1.6
Torso
Maximum deflection (mm)	29
Average deflection (mm)	20
Maximum deflection rate (m/s)	3.48
Maximum viscous criterion (m/s)	0.31
Pelvis
Iliac force (kN)	2.0
Acetabulum force (kN)	1.8
Combined force (kN)	3.7
Left femur
L-M force (kN)	0.4
L-M moment (Nm)	88
A-P moment (Nm)	44

Evaluation criteria	Measurement
Test ID	VTS1106
Head HIC-15	52
Neck
Tension (kN)	0.2
Compression (kN)	0.3
Shoulder
Lateral deflection (mm)	14
Lateral force (kN)	0.4
Torso
Maximum deflection (mm)	21
Average deflection (mm)	18
Maximum deflection rate (m/s)	3.81
Maximum viscous criterion (m/s)	0.16
Pelvis
Iliac force (kN)	0.7
Acetabulum force (kN)	1.4
Combined force (kN)	1.9
Left femur
L-M force (kN)	1.1
L-M moment (Nm)	183
A-P moment (Nm)	41

About the original side crash test

Roof strength

Rating applies to 2012-17 models

Tested vehicle: 2012 Toyota Camry LE 4-door

Overall evaluation
Curb weight	3,167 lbs
Peak force	15,148 lbs
Strength-to-weight ratio	4.78

About the roof strength test

Head restraints & seats

Seat type: Power cloth seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Power cloth seats
Geometry
Backset (mm)	37
Distance below top of head (mm)	33
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	12.1
Head contact time (ms)	57
Force rating	1
Neck forces
Max neck shear force (N)	0
Max neck tension (N)	406

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 4 different headlight variations available on this vehicle.

Trim level(s)

XLE 2.5-liter 4 cylinder trim equipped with Technology package
XSE 2.5-liter 4 cylinder trim equipped with Technology package
Hybrid XLE trim equipped with Technology package

Evaluation criteria	Rating
Low-beam headlight type	Halogen projector
High-beam headlight type	Halogen reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the gradual right and gradual left curves and inadequate on the sharp left and sharp right curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	XLE 2.5-liter 4 cylinder trim equipped with Technology package XSE 2.5-liter 4 cylinder trim equipped with Technology package Hybrid XLE trim equipped with Technology package
Low-beam headlight type	Halogen projector
High-beam headlight type	Halogen reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2016-17 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	91.4 m	6.7%
Straightaway left edge	53.7 m	6.7%
250m radius right curve, right edge	52.3 m	None
250m radius left curve, left edge	48.0 m	None
150m radius right curve, right edge	43.3 m	None
150m radius left curve, left edge	40.2 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	163.2 m
Straightaway left edge	143.9 m
250m radius right curve, right edge	70.4 m
250m radius left curve, left edge	69.5 m
150m radius right curve, right edge	54.2 m
150m radius left curve, left edge	54.6 m

Trim level(s)

LE 2.5-liter 4 cylinder trim
XLE 2.5-liter 4 cylinder trim
SE 2.5-liter 4 cylinder trim
Special Edition 2.5-liter 4 cylinder trim
XSE 2.5-liter 4 cylinder trim
Hybrid LE trim
Hybrid SE trim
Hybrid XLE trim

Evaluation criteria	Rating
Low-beam headlight type	Halogen projector
High-beam headlight type	Halogen reflector
Curve-adaptive?	No
High-beam assist?	No
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams created some glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the gradual right and gradual left curves and inadequate on the sharp left and sharp right curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	LE 2.5-liter 4 cylinder trim XLE 2.5-liter 4 cylinder trim SE 2.5-liter 4 cylinder trim Special Edition 2.5-liter 4 cylinder trim XSE 2.5-liter 4 cylinder trim Hybrid LE trim Hybrid SE trim Hybrid XLE trim
Low-beam headlight type	Halogen projector
High-beam headlight type	Halogen reflector
Curve-adaptive?	No
High-beam assist?	No
Overall rating Applies to 2016-17 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	91.4 m	6.7%
Straightaway left edge	53.7 m	6.7%
250m radius right curve, right edge	52.3 m	None
250m radius left curve, left edge	48.0 m	None
150m radius right curve, right edge	43.3 m	None
150m radius left curve, left edge	40.2 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	163.2 m
Straightaway left edge	143.9 m
250m radius right curve, right edge	70.4 m
250m radius left curve, left edge	69.5 m
150m radius right curve, right edge	54.2 m
150m radius left curve, left edge	54.6 m

Trim level(s)

XLE 3.5-liter V6 trim equipped with Technology package
XSE 3.5-liter V6 trim equipped with Technology package

Evaluation criteria	Rating
Low-beam headlight type	LED projector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the sharp left and both right curves and inadequate on the gradual left curve.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp right and sharp left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	XLE 3.5-liter V6 trim equipped with Technology package XSE 3.5-liter V6 trim equipped with Technology package
Low-beam headlight type	LED projector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	Yes
Overall rating Applies to 2016-17 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	108.6 m	75.6%
Straightaway left edge	58.8 m	75.6%
250m radius right curve, right edge	64.1 m	None
250m radius left curve, left edge	54.8 m	None
150m radius right curve, right edge	52.0 m	None
150m radius left curve, left edge	50.3 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	173.4 m
Straightaway left edge	141.5 m
250m radius right curve, right edge	83.2 m
250m radius left curve, left edge	78.0 m
150m radius right curve, right edge	60.9 m
150m radius left curve, left edge	59.5 m

Trim level(s)

XLE 3.5-liter V6 trim
XSE 3.5-liter V6 trim

Evaluation criteria	Rating
Low-beam headlight type	LED projector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	No
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the sharp left and both right curves and inadequate on the gradual left curve.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp right and sharp left curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	XLE 3.5-liter V6 trim XSE 3.5-liter V6 trim
Low-beam headlight type	LED projector
High-beam headlight type	LED reflector
Curve-adaptive?	No
High-beam assist?	No
Overall rating Applies to 2016-17 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	108.6 m	75.6%
Straightaway left edge	58.8 m	75.6%
250m radius right curve, right edge	64.1 m	None
250m radius left curve, left edge	54.8 m	None
150m radius right curve, right edge	52.0 m	None
150m radius left curve, left edge	50.3 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	173.4 m
Straightaway left edge	141.5 m
250m radius right curve, right edge	83.2 m
250m radius left curve, left edge	78.0 m
150m radius right curve, right edge	60.9 m
150m radius left curve, left edge	59.5 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

Optional Pre-Collision System

Package name

Optional Technology Package

Overall evaluation

Applies to 2015-17 models

Advanced

with optional equipment

This system meets the requirements for forward collision warning.
In the 12 mph test, impact speed was reduced by 10 mph.
In the 25 mph test, impact speed was reduced by 5 mph.

About the original front crash prevention test

Child seat anchors

Rating applies to 2015-17 models

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	LE
Seat type	cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	LE
Seat type	cloth

Rating icon	Rating
G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

Position	Rating
1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors

Technical measurements for this test

Lower anchor A
Open access rated	No
Depth (cm)	4-6
Force (lbs)	17
Clearance angle (degrees)	58
Lower anchor B
Open access rated	No
Depth (cm)	4-6
Force (lbs)	21
Clearance angle (degrees)	63
Tether anchor
Location	Rear deck
Confusing hardware present	No
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Rear deck
Confusing hardware present	No
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
Open access rated	No
Depth (cm)	4-6
Force (lbs)	39
Clearance angle (degrees)	63
Lower anchor B
Open access rated	No
Depth (cm)	4-6
Force (lbs)	24
Clearance angle (degrees)	68
Tether anchor
Location	Rear deck
Confusing hardware present	No
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

About the child seat anchor evaluation

2017 Toyota Camry

midsize car / 4-door sedan

Crashworthiness

Crash avoidance & mitigation

Seat belts & child restraints

Other available safety features

Small overlap front: driver-side

Moderate overlap front: original test

Side: original test

Roof strength

Head restraints & seats

Headlights

Trim level(s)

Trim level(s)

Trim level(s)

Trim level(s)

Front crash prevention: vehicle-to-vehicle

System details

Package name

Overall evaluation

Child seat anchors
