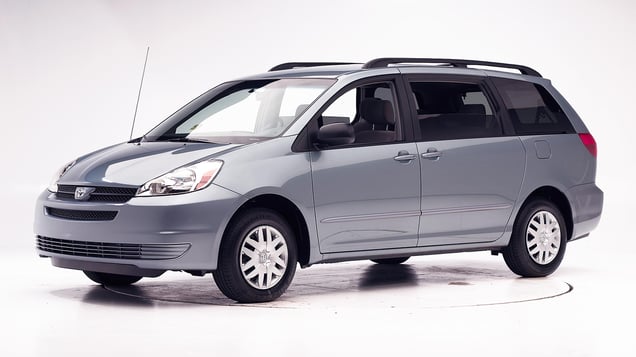

2005 Toyota Sienna
minivan
Moderate overlap front: original test
Rating applies to 2004-10 models
Tested vehicle: 2004 Toyota Sienna LE
The Toyota Sienna was redesigned for the 2004 model year.
The Insurance Institute for Highway Safety has evaluated the crashworthiness of the Sienna in two 40 mph moderate overlap frontal crash tests into deformable barriers. Two tests were conducted because a major fuel leak occurred in the first test. Toyota identified a defect in the manufacturing process of the plastic fuel tank and recalled the affected models. A second test was conducted to assess the effect of the manufacturing fix. For this test, Toyota retrofitted a redesigned fuel tank into the van. Due to the similarity of results (except for the fuel leak), the evaluation of the Sienna is based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the second of two frontal offset crash tests.
The dummy's position in relation to the steering wheel and instrument panel after both crash tests indicates that the driver's survival space was maintained well (second test shown).<strong> </strong>.
Smeared greasepaint indicates where the dummy's head hit the B-pillar and head restraint during rebound in the second test. The head rebounded similarly in the first test. Head accelerations from these hits were low in both tests.
Intrusion into the driver's space was minimal, and forces on the legs and feet were low in both tests (second test shown).
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0310 | CEF0314 |
|---|---|---|
| Footwell intrusion | ||
| Footrest (cm) | 10 | 9 |
| Left (cm) | 15 | 13 |
| Center (cm) | 11 | 8 |
| Right (cm) | 12 | 9 |
| Brake pedal (cm) | 4 | 2 |
| Instrument panel rearward movement | ||
| Left (cm) | 4 | 2 |
| Right (cm) | 5 | 4 |
| Steering column movement | ||
| Upward (cm) | -6 | -2 |
| Rearward (cm) | 5 | -1 |
| A-pillar rearward movement (cm) | 1 | 1 |
Driver injury measures
| Test ID | CEF0310 | CEF0314 |
|---|---|---|
| Head | ||
| HIC-15 | 127 | 148 |
| Peak gs at hard contact | 8 | 8 |
| Neck | ||
| Tension (kN) | 1.4 | 1.3 |
| Extension bending moment (Nm) | 24 | 19 |
| Maximum Nij | 0.33 | 0.27 |
| Chest maximum compression (mm) | 27 | 29 |
| Legs | ||
| Femur force - left (kN) | 4.7 | 4.1 |
| Femur force - right (kN) | 3.1 | 3.6 |
| Knee displacement - left (mm) | 0 | 3 |
| Knee displacement - right (mm) | 1 | 2 |
| Maximum tibia index - left | 0.55 | 0.34 |
| Maximum tibia index - right | 0.57 | 0.46 |
| Tibia axial force - left (kN) | 1.0 | 0.9 |
| Tibia axial force - right (kN) | 2.6 | 2.4 |
| Foot acceleration (g) | ||
| Left | 81 | 71 |
| Right | 62 | 53 |
Side: original test
Rating applies to 2005 models built after February 2005
Tested vehicle: 2005 Toyota Sienna LE with optional head curtain airbags for all three rows of seats and optional front seat-mounted torso airbags
The Toyota Sienna was redesigned for the 2004 model year. Beginning with 2005 models manufactured after February 2005, changes were made to the vehicle side structure and to the optional side torso airbags to improve occupant protection in side impact crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door). Beginning with 2006 models, side airbags were made standard.
Two tests of a 2005 Sienna were conducted, one with optional side airbags for the driver and rear passenger, and one without. Both were manufactured after the structural and airbag modifications had been made. These vehicles are rated separately, except that the structural ratings for both vehicles are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Action shot taken during the side impact crash test showing the driver dummy's head was protected from being hit by hard structures by the side curtain and side torso airbags.
Smeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0517 | CES0518 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -8.5 | -9.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | CES0517 |
|---|---|
| Head HIC-15 | 121 |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 45 |
| Lateral force (kN) | 2.1 |
| Torso | |
| Maximum deflection (mm) | 34 |
| Average deflection (mm) | 31 |
| Maximum deflection rate (m/s) | 2.46 |
| Maximum viscous criterion (m/s) | 0.39 |
| Pelvis | |
| Iliac force (kN) | 1.3 |
| Acetabulum force (kN) | 2.4 |
| Combined force (kN) | 3.6 |
| Left femur | |
| L-M force (kN) | 1.0 |
| L-M moment (Nm) | 99 |
| A-P moment (Nm) | -20 |
Passenger injury measures
| Test ID | CES0517 |
|---|---|
| Head HIC-15 | 99 |
| Neck | |
| Tension (kN) | 0.6 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 43 |
| Lateral force (kN) | 1.5 |
| Torso | |
| Maximum deflection (mm) | 27 |
| Average deflection (mm) | 19 |
| Maximum deflection rate (m/s) | 2.86 |
| Maximum viscous criterion (m/s) | 0.35 |
| Pelvis | |
| Iliac force (kN) | 0.7 |
| Acetabulum force (kN) | 3.2 |
| Combined force (kN) | 3.5 |
| Left femur | |
| L-M force (kN) | 1.0 |
| L-M moment (Nm) | 134 |
| A-P moment (Nm) | -44 |
Rating applies to 2005 models built after February 2005
Tested vehicle: 2005 Toyota Sienna LE without optional side airbags
The Toyota Sienna was redesigned for the 2004 model year. Beginning with 2005 models manufactured after February 2005, changes were made to the vehicle side structure and to the optional side torso airbags to improve occupant protection in side impact crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door). Beginning with 2006 models, side airbags were made standard.
Two tests of a 2005 Sienna were conducted, one with optional side airbags for the driver and rear passenger, and one without. Both were manufactured after the structural and airbag modifications had been made. These vehicles are rated separately, except that the structural ratings for both vehicles are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection The intruding barrier came close to the dummy's head in this test. Although the barrier did not hit the head, this near miss indicates that only slightly different crash circumstances could produce a direct hit to a person's head. |
|
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head was hit by the pillar behind the rear passenger door. This pillar is required by federal standard to provide some protection for occupants' heads. |
|
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the damage to the occupant compartment.
Action shot taken during the side impact crash test showing the driver dummy's head leaning well outward and approaching the crash test barrier.
View of the rear dummy after the crash test. The head was hit by the pillar behind the door during the crash.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0517 | CES0518 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -8.5 | -9.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | CES0518 |
|---|---|
| Head HIC-15 | 282 |
| Neck | |
| Tension (kN) | 2.3 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 39 |
| Lateral force (kN) | 2.6 |
| Torso | |
| Maximum deflection (mm) | 35 |
| Average deflection (mm) | 29 |
| Maximum deflection rate (m/s) | 4.89 |
| Maximum viscous criterion (m/s) | 0.65 |
| Pelvis | |
| Iliac force (kN) | 2.5 |
| Acetabulum force (kN) | 2.6 |
| Combined force (kN) | 4.4 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 124 |
| A-P moment (Nm) | -18 |
Passenger injury measures
| Test ID | CES0518 |
|---|---|
| Head HIC-15 | 104 |
| Neck | |
| Tension (kN) | 1.5 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 40 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 23 |
| Average deflection (mm) | 19 |
| Maximum deflection rate (m/s) | 2.82 |
| Maximum viscous criterion (m/s) | 0.32 |
| Pelvis | |
| Iliac force (kN) | 0.7 |
| Acetabulum force (kN) | 3.2 |
| Combined force (kN) | 3.6 |
| Left femur | |
| L-M force (kN) | 1.3 |
| L-M moment (Nm) | 127 |
| A-P moment (Nm) | -36 |
Head restraints & seats
Seat type: Seats with adjustable lumbar
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Seats with adjustable lumbar |
|---|---|
| Geometry | |
| Backset (mm) | 55 |
| Distance below top of head (mm) | 68 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 12.6 |
| Head contact time (ms) | 101 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 35 |
| Max neck tension (N) | 1,181 |
Seat type: Seats without adjustable lumbar
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Seats without adjustable lumbar |
|---|---|
| Geometry | |
| Backset (mm) | 62 |
| Distance below top of head (mm) | 82 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 0.0 |
| Head contact time (ms) | |
| Force rating | 0 |
| Neck forces | |
| Max neck shear force (N) | |
| Max neck tension (N) | |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
