Small overlap front: driver-side
Rating applies to 2011-14 models
Tested vehicle: 2012 Acura TSX 4-door
The Acura TSX was redesigned for the 2009 model year. The small overlap front test ratings also apply to the station wagon version of the TSX, known as the TSX Sport Wagon, beginning with 2011 models.
Two tests of the TSX were conducted because the onboard (car interior) cameras failed during the first test. Also in the first test, the driver side curtain and side thorax airbags deployed, but they did not in the second test. Honda subsequently provided data showing that the side airbags are close to their deployment threshold under the small overlap test conditions. The restraints and dummy kinematics rating is based on the second test. Injury and structural ratings are based on both tests.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics In the second test, the dummy’s head contacted the frontal airbag but slid off the left side, leaving the head vulnerable to contact with forward side structure. The side curtain airbag did not deploy, also leaving the dummy’s head vulnerable to contact with side structure and outside objects. |
Action shot taken during the second of two small overlap frontal crash tests.
The dummy's position in relation to the door frame, steering wheel, and instrument panel indicates that the driver's survival space was not maintained well (second test without side airbag deployment).
In the second test, the dummy’s head contacted the frontal airbag but then slid off the left side as the steering column moved to the right. The side curtain airbag did not deploy.
Intrusion by the door hinge pillar and instrument panel contributed to a high risk of injury to the dummy's left lower leg.
Measures of occupant compartment intrusion on driver side
Test ID | CEN1202 | CEN1213 |
---|---|---|
Lower occupant compartment | ||
Lower hinge pillar max (cm) | 25 | 21 |
Footrest (cm) | 13 | 11 |
Left toepan (cm) | 4 | 6 |
Brake pedal (cm) | 6 | 9 |
Parking brake (cm) | 0 | 0 |
Rocker panel lateral average (cm) | 5 | 5 |
Upper occupant compartment | ||
Steering column | 2 | 5 |
Upper hinge pillar max (cm) | 12 | 15 |
Upper dash (cm) | 14 | 16 |
Lower instrument panel (cm) | 18 | 15 |
Driver injury measures
Test ID | CEN1202 | CEN1213 |
---|---|---|
Head | ||
HIC-15 | 77 | 116 |
Peak gs at hard contact | no contact | no contact |
Neck | ||
Tension (kN) | 1.1 | 1.1 |
Extension bending moment (Nm) | 12 | 8 |
Maximum Nij | 0.23 | 0.24 |
Chest maximum compression (mm) | 27 | 28 |
Femur (kN) | ||
Left | 3.7 | 3.0 |
Right | 0.6 | 2.7 |
Knee displacement (mm) | ||
Left | 4 | 15 |
Right | 1 | 0 |
Knee-thigh-hip injury risk (%) | ||
Left | 1 | 0 |
Right | 0 | 0 |
Maximum tibia index | ||
Left | 1.31 | 1.21 |
Right | 0.38 | 0.43 |
Tibia axial force (kN) | ||
Left | 3.3 | 3.2 |
Right | 1.7 | 2.1 |
Foot acceleration (g) | ||
Left | 71 | 58 |
Right | 55 | 60 |
Moderate overlap front: original test
Rating applies to 2011-14 models
Tested vehicle: 2009 Acura TSX 4-door
The Acura TSX was redesigned for the 2009 model year. Frontal ratings are assigned by the Institute based on a test conducted by Honda.
The frontal crash test ratings also apply to the station wagon version of the TSX, known as the TSX Sport Wagon, beginning with 2011 models.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF0804 |
---|---|
Footwell intrusion | |
Footrest (cm) | 2 |
Left (cm) | 8 |
Center (cm) | 8 |
Right (cm) | 5 |
Brake pedal (cm) | 3 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 0 |
Steering column movement | |
Upward (cm) | 0 |
Rearward (cm) | 0 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF0804 |
---|---|
Head | |
HIC-15 | 160 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.8 |
Extension bending moment (Nm) | 13 |
Maximum Nij | 0.19 |
Chest maximum compression (mm) | 29 |
Legs | |
Femur force - left (kN) | 0.9 |
Femur force - right (kN) | 0.8 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.26 |
Maximum tibia index - right | 0.46 |
Tibia axial force - left (kN) | 1.4 |
Tibia axial force - right (kN) | 2.2 |
Foot acceleration (g) | |
Left | 63 |
Right | 56 |
Side: original test
Rating applies to 2011-14 models
Tested vehicle: 2009 Acura TSX 4-door with standard front and rear head curtain airbags and standard front seat-mounted side torso airbags
The Acura TSX was redesigned for the 2009 model year. The side impact crash test ratings also apply to the station wagon version of the TSX, known as the TSX Sport Wagon, beginning with 2011 models.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
Test ID | CES0826 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -12.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | CES0826 |
---|---|
Head HIC-15 | 345 |
Neck | |
Tension (kN) | 1.3 |
Compression (kN) | 0.0 |
Shoulder | |
Lateral deflection (mm) | 44 |
Lateral force (kN) | 1.9 |
Torso | |
Maximum deflection (mm) | 33 |
Average deflection (mm) | 30 |
Maximum deflection rate (m/s) | 2.83 |
Maximum viscous criterion (m/s) | 0.51 |
Pelvis | |
Iliac force (kN) | 2.6 |
Acetabulum force (kN) | 2.1 |
Combined force (kN) | 4.5 |
Left femur | |
L-M force (kN) | 0.4 |
L-M moment (Nm) | 126 |
A-P moment (Nm) | 43 |
Passenger injury measures
Test ID | CES0826 |
---|---|
Head HIC-15 | 244 |
Neck | |
Tension (kN) | 0.1 |
Compression (kN) | 0.2 |
Shoulder | |
Lateral deflection (mm) | 39 |
Lateral force (kN) | 1.6 |
Torso | |
Maximum deflection (mm) | 32 |
Average deflection (mm) | 29 |
Maximum deflection rate (m/s) | 4.13 |
Maximum viscous criterion (m/s) | 0.61 |
Pelvis | |
Iliac force (kN) | 0.8 |
Acetabulum force (kN) | 1.6 |
Combined force (kN) | 2.3 |
Left femur | |
L-M force (kN) | 0.2 |
L-M moment (Nm) | 119 |
A-P moment (Nm) | -43 |
Roof strength
Rating applies to 2012-14 models

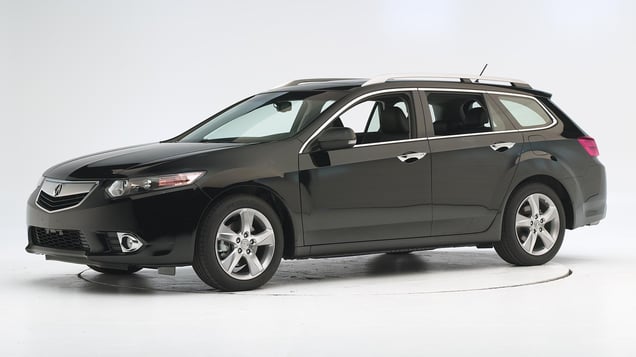

Tested vehicle: 2012 Acura TSX wagon
Overall evaluation | |
---|---|
Curb weight | 3,567 lbs |
Peak force | 19,099 lbs |
Strength-to-weight ratio | 5.35 |
Head restraints & seats
Seat type: Power leather seats with manual adjustable lumbar AHR
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seats with manual adjustable lumbar AHR |
---|---|
Geometry | |
Backset (mm) | 42 |
Distance below top of head (mm) | 36 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 14.5 |
Head contact time (ms) | 64 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 0 |
Max neck tension (N) | 367 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
