2005 BMW X5

midsize luxury SUV / 4-door SUV

Crashworthiness

Rating overview
Evaluation criteria	Rating
Moderate overlap front: original test
Head restraints & seats

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2001-06 models built after June 2000

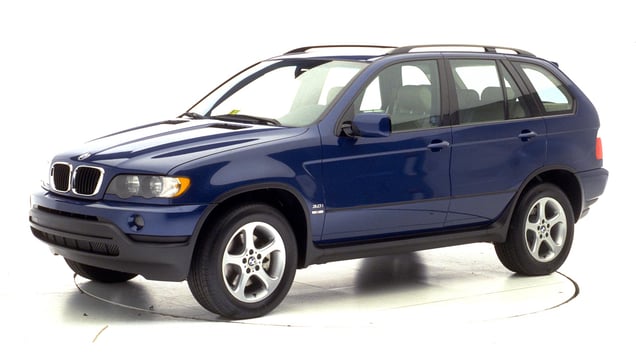

Tested vehicle: 2001 BMW X5 3.0i 4-door 4wd

The BMW X5 was introduced in the 2000 model year. All 2001-06 X5 models manufactured after June 2000 include structural changes to improve occupant protection in frontal crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door).

The Insurance Institute for Highway Safety has evaluated the crashworthiness of a 2001 X5 with the structural changes in a 40 mph frontal offset crash test into a deformable barrier.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates the driver's survival space was maintained very well.

Dummies' knees and/or shins routinely hit and often damage the areas under the instrument panel. These areas are smoothly padded and contoured in the X5.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CF00023
Footwell intrusion
Footrest (cm)	6
Left (cm)	7
Center (cm)	5
Right (cm)	1
Brake pedal (cm)	1
Instrument panel rearward movement
Left (cm)	2
Right (cm)	1
Steering column movement
Upward (cm)	3
Rearward (cm)	1
A-pillar rearward movement (cm)	1

Evaluation criteria	Measurement
Test ID	CF00023
Head
HIC-15	177
Peak gs at hard contact	21
Neck
Tension (kN)	1.2
Extension bending moment (Nm)	13
Maximum Nij	0.20
Chest maximum compression (mm)	38
Legs
Femur force - left (kN)	0.8
Femur force - right (kN)	1.2
Knee displacement - left (mm)	0
Knee displacement - right (mm)	1
Maximum tibia index - left	0.46
Maximum tibia index - right	0.37
Tibia axial force - left (kN)	1.3
Tibia axial force - right (kN)	1.4
Foot acceleration (g)
Left	51
Right	146

About the original moderate overlap front test

Head restraints & seats

Seat type: Base seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Base seats
Geometry
Backset (mm)	70
Distance below top of head (mm)	82
Seat design parameters
Pass/fail	Fail
Max T1 acceleration (g)	0.0
Head contact time (ms)
Force rating	0
Neck forces
Max neck shear force (N)
Max neck tension (N)

Seat type: Sport seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Sport seats
Geometry
Backset (mm)	78
Distance below top of head (mm)	82
Seat design parameters
Pass/fail	Fail
Max T1 acceleration (g)	0.0
Head contact time (ms)
Force rating	0
Neck forces
Max neck shear force (N)
Max neck tension (N)

Seat type: Comfort seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Comfort seats
Geometry
Backset (mm)	38
Distance below top of head (mm)	42
Seat design parameters
Pass/fail	Fail
Max T1 acceleration (g)	11.4
Head contact time (ms)	100
Force rating	3
Neck forces
Max neck shear force (N)	205
Max neck tension (N)	1,091

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
