Small overlap front: driver-side
Rating applies to 2018-20 models
Tested vehicle: 2018 Buick Regal Sportback Preferred 4-door 2wd
The Buick Regal was redesigned for the 2018 model year. There are two variants, the Sportback 4-door hatchback and the TourX wagon.
Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by General Motors. The ratings apply to both the Sportback and TourX.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTN1807 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 12 |
Footrest (cm) | 7 |
Left toepan (cm) | 1 |
Brake pedal (cm) | 5 |
Parking brake (cm) | |
Rocker panel lateral average (cm) | 0 |
Upper occupant compartment | |
Steering column | 1 |
Upper hinge pillar max (cm) | 4 |
Upper dash (cm) | 4 |
Lower instrument panel (cm) | 4 |
Driver injury measures
Test ID | VTN1807 |
---|---|
Head | |
HIC-15 | 87 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.2 |
Extension bending moment (Nm) | 11 |
Maximum Nij | 0.23 |
Chest maximum compression (mm) | 22 |
Femur (kN) | |
Left | 1.2 |
Right | 0.1 |
Knee displacement (mm) | |
Left | 1 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.63 |
Right | 0.49 |
Tibia axial force (kN) | |
Left | 3.9 |
Right | 0.7 |
Foot acceleration (g) | |
Left | 46 |
Right | 51 |
Moderate overlap front: original test
Rating applies to 2018-20 models
Tested vehicle: 2018 Buick Regal Sportback Preferred 4-door 2wd
The Buick Regal was redesigned for the 2018 model year. There are two variants, the Sportback 4-door hatchback and the TourX wagon.
Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by General Motors. The ratings apply to both the Sportback and TourX.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1814 |
---|---|
Footwell intrusion | |
Footrest (cm) | 2 |
Left (cm) | 1 |
Center (cm) | 4 |
Right (cm) | 3 |
Brake pedal (cm) | 5 |
Instrument panel rearward movement | |
Left (cm) | 1 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | 1 |
Rearward (cm) | 1 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF1814 |
---|---|
Head | |
HIC-15 | 222 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.2 |
Extension bending moment (Nm) | 10 |
Maximum Nij | 0.22 |
Chest maximum compression (mm) | 27 |
Legs | |
Femur force - left (kN) | 0.5 |
Femur force - right (kN) | 0.6 |
Knee displacement - left (mm) | 1 |
Knee displacement - right (mm) | 1 |
Maximum tibia index - left | 0.44 |
Maximum tibia index - right | 0.33 |
Tibia axial force - left (kN) | 1.8 |
Tibia axial force - right (kN) | 1.5 |
Foot acceleration (g) | |
Left | 66 |
Right | 76 |
Side: original test
Rating applies to 2018-20 models

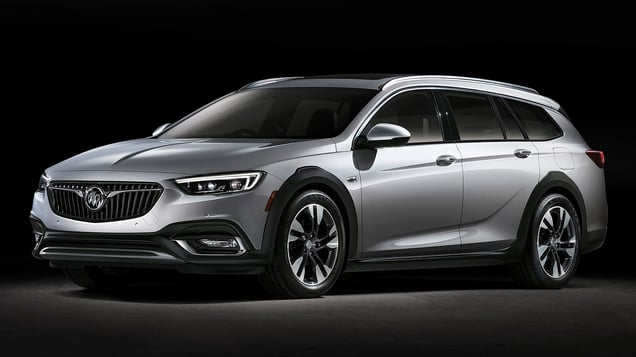

Tested vehicle: 2018 Buick Regal TourX Essence 4-door 4wd
The Buick Regal was redesigned for the 2018 model year. There are two variants, the Sportback 4-door hatchback and the TourX wagon. Side ratings are assigned by the Institute based on a test conducted by General Motors and apply to the TourX.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1812 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -12.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1812 |
---|---|
Head HIC-15 | 460 |
Neck | |
Tension (kN) | 1.2 |
Compression (kN) | 0.4 |
Shoulder | |
Lateral deflection (mm) | 50 |
Lateral force (kN) | 1.4 |
Torso | |
Maximum deflection (mm) | 43 |
Average deflection (mm) | 40 |
Maximum deflection rate (m/s) | 4.43 |
Maximum viscous criterion (m/s) | 0.99 |
Pelvis | |
Iliac force (kN) | 2.1 |
Acetabulum force (kN) | 1.5 |
Combined force (kN) | 3.3 |
Left femur | |
L-M force (kN) | 1.0 |
L-M moment (Nm) | 42 |
A-P moment (Nm) | 127 |
Passenger injury measures
Test ID | VTS1812 |
---|---|
Head HIC-15 | 44 |
Neck | |
Tension (kN) | 0.6 |
Compression (kN) | 0.5 |
Shoulder | |
Lateral deflection (mm) | 31 |
Lateral force (kN) | 1.1 |
Torso | |
Maximum deflection (mm) | 29 |
Average deflection (mm) | 20 |
Maximum deflection rate (m/s) | 1.97 |
Maximum viscous criterion (m/s) | 0.27 |
Pelvis | |
Iliac force (kN) | 0.4 |
Acetabulum force (kN) | 1.6 |
Combined force (kN) | 1.8 |
Left femur | |
L-M force (kN) | 0.7 |
L-M moment (Nm) | 30 |
A-P moment (Nm) | 139 |
