2019 Cadillac XTS

large luxury car / 4-door sedan

2019 Cadillac XTS 4-door sedan

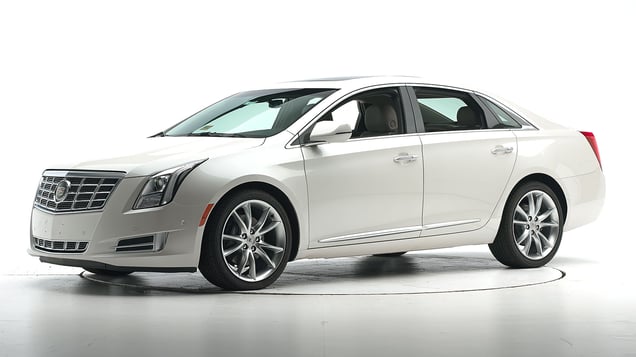

2014 Cadillac XTS shown

Crashworthiness

Rating overview
Evaluation criteriaRating
Moderate overlap front: original test
G
Side: original test
G
Roof strength
G
Head restraints & seats
G

Crash avoidance & mitigation

Evaluation criteriaRating
Front crash prevention: vehicle-to-vehicle
Optional system
Superior
Optional system
Not tested

Seat belts & child restraints

Evaluation criteriaRating
LATCH ease of use
A

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2013-19 models

Tested vehicle: 2013 Cadillac XTS Premium 4-door 4wd

The Cadillac XTS was introduced in the 2013 model year and is derived from the Buick LaCrosse. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by General Motors.

Evaluation criteriaRating
Overall evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Chest
G
Leg/foot, left
G
Leg/foot, right
A
Driver restraints and dummy kinematics
G
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Evaluation criteriaMeasurement
Test ID VTF1202
Footwell intrusion
Footrest (cm) 4
Left (cm) 9
Center (cm) 12
Right (cm) 8
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 2
Right (cm) 1
Steering column movement
Upward (cm) 0
Rearward (cm) -3
A-pillar rearward movement (cm) 1

Driver injury measures

Evaluation criteria Measurement
Test ID VTF1202
Head
HIC-15 190
Peak gs at hard contact no contact
Neck
Tension (kN) 0.8
Extension bending moment (Nm) 19
Maximum Nij 0.20
Chest maximum compression (mm) 22
Legs
Femur force - left (kN) 0.5
Femur force - right (kN) 2.0
Knee displacement - left (mm) 1
Knee displacement - right (mm) 1
Maximum tibia index - left 0.26
Maximum tibia index - right 0.47
Tibia axial force - left (kN) 1.9
Tibia axial force - right (kN) 4.4
Foot acceleration (g)
Left 44
Right 89

About the original moderate overlap front test

Side: original test

Rating applies to 2013-19 models

Tested vehicle: 2013 Cadillac XTS Luxury 4-door 2wd with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags

The Cadillac XTS was introduced in the 2013 model year and is derived from the Buick LaCrosse. Side ratings are assigned by the Institute based on a test conducted by General Motors.

Evaluation criteriaRating
Overall evaluation
G
Structure and safety cage
G
Driver injury measures
Head/neck
G
Torso
A
Pelvis/leg
G
Driver head protection
G
Rear passenger injury measures
Head/neck
G
Torso
G
Pelvis/leg
G
Rear passenger head protection
G
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1210
B-pillar to longitudinal centerline of driver's seat (cm) -18.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Evaluation criteria Measurement
Test ID VTS1210
Head HIC-15 307
Neck
Tension (kN) 1.6
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 33
Lateral force (kN) 1.7
Torso
Maximum deflection (mm) 40
Average deflection (mm) 37
Maximum deflection rate (m/s) 3.57
Maximum viscous criterion (m/s) 0.67
Pelvis
Iliac force (kN) 2.0
Acetabulum force (kN) 2.2
Combined force (kN) 4.0
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 18
A-P moment (Nm) 53

Passenger injury measures

Evaluation criteria Measurement
Test ID VTS1210
Head HIC-15 93
Neck
Tension (kN) 0.3
Compression (kN) 0.8
Shoulder
Lateral deflection (mm) 11
Lateral force (kN) 0.6
Torso
Maximum deflection (mm) 17
Average deflection (mm) 14
Maximum deflection rate (m/s) 2.19
Maximum viscous criterion (m/s) 0.20
Pelvis
Iliac force (kN) 0.4
Acetabulum force (kN) 2.9
Combined force (kN) 3.0
Left femur
L-M force (kN) 0.4
L-M moment (Nm) 32
A-P moment (Nm) 80

About the original side crash test

Roof strength

Rating applies to 2013-19 models

Tested vehicle: 2013 Cadillac XTS Luxury Collection 4-door 2wd

Overall evaluation
G
Curb weight4,083 lbs
Peak force18,066 lbs
Strength-to-weight ratio4.42

About the roof strength test

Head restraints & seats

Seat type: Power leather seats

Overall evaluation
G
Dynamic rating
G
Seat/head restraint geometry
G
Technical measurements for this test
Seat type Power leather seats
Geometry
Backset (mm) 24
Distance below top of head (mm) 32
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.3
Head contact time (ms) 65
Force rating 1
Neck forces
Max neck shear force (N) 64
Max neck tension (N) 579

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Front crash prevention: vehicle-to-vehicle

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Optional Forward Automatic Braking

Package name

  • Optional Driver Assist Package

Overall evaluation

Applies to 2018-19 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, impact speed was reduced by 12 mph.

System details

  • Optional Low Speed Forward Automatic Braking

Package name

  • Optional Driver Awareness Package

Overall evaluation

Applies to 2018-19 models

  • This system meets the requirements for forward collision warning.
  • Autobrake not tested.

About the original front crash prevention test

Child seat anchors

Rating applies to 2017-19 models

Evaluation criteriaRating
Overall evaluation
A
Vehicle trimLuxury
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor, a single lower anchor and the ability to borrow the second anchor from another position.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Evaluation criteriaRating
Overall evaluation
A
Vehicle trimLuxury
Seat type leather
1 2 3
Rating iconRating
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

PositionRating
1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
1 dedicated anchor and 1 that can be borrowed from seat 3
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 20
Clearance angle (degrees) 75
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 33
Clearance angle (degrees) 67
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Open access rated No
Depth (cm) 4-6
Force (lbs) 24
Clearance angle (degrees) 55
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 20
Clearance angle (degrees) 69
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 18
Clearance angle (degrees) 69
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
