2017 Dodge Durango

midsize SUV / 4-door SUV

2017 Dodge Durango 4-door SUV

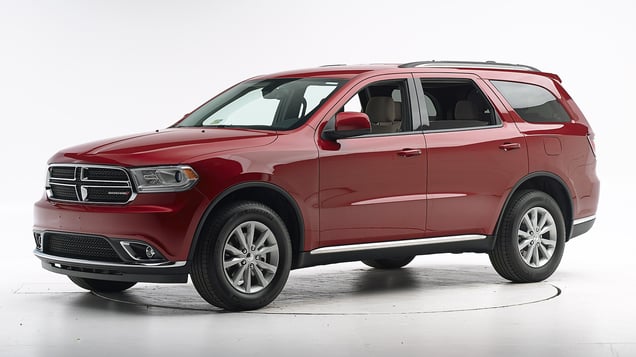

2015 Dodge Durango shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Optional system
Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2011-24 models

Tested vehicle: 2015 Dodge Durango SXT 4-door 4wd

The Dodge Durango was redesigned for the 2011 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
The dummy’s face remained in contact with the frontal airbag, but its head still rolled around the left side of the steering wheel toward the intruding A-pillar. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects. The side torso airbag deployed.

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.

The dummy’s head contacted the frontal airbag but then rolled around to the left side. The side curtain airbag does not extend far enough forward toward the A-pillar to protect the head from possible contact with forward side structure.

Parking brake pedal, door hinge pillar, and instrument panel intrusion was extensive and contributed to a high risk of injury to the left lower leg, a significant risk to the left foot, and a moderate risk to the left hip.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1510
Lower occupant compartment
Lower hinge pillar max (cm) 26
Footrest (cm) 25
Left toepan (cm) 18
Brake pedal (cm) 29
Parking brake (cm) 30
Rocker panel lateral average (cm) 4
Upper occupant compartment
Steering column 9
Upper hinge pillar max (cm) 21
Upper dash (cm) 18
Lower instrument panel (cm) 19

Driver injury measures

Test ID CEN1510
Head
HIC-15 119
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 6
Maximum Nij 0.25
Chest maximum compression (mm) 26
Femur (kN)
Left 5.3
Right 2.5
Knee displacement (mm)
Left 10
Right 4
Knee-thigh-hip injury risk (%)
Left 6
Right 0
Maximum tibia index
Left 1.53
Right 0.59
Tibia axial force (kN)
Left 1.9
Right 1.4
Foot acceleration (g)
Left 256
Right 61

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2011-24 models

Tested vehicle: 2011 Jeep Grand Cherokee Laredo 4-door 4wd

The Dodge Durango was redesigned for the 2011 model year. The vehicle is derived from the Jeep Grand Cherokee, which was also redesigned for 2011. The Durango has a longer wheelbase and overall length to accommodate three rows of seats. Frontal structure is essentially similar to that of the Grand Cherokee, and the seat belts and frontal airbags are identical. Frontal ratings are assigned by the Institute based on a test of a 2011 Jeep Grand Cherokee conducted by Chrysler Corporation.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1003
Footwell intrusion
Footrest (cm) 2
Left (cm) 2
Center (cm) 2
Right (cm) 2
Brake pedal (cm) 1
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -3
Rearward (cm) -7
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1003
Head
HIC-15 193
Peak gs at hard contact no contact
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 24
Maximum Nij 0.30
Chest maximum compression (mm) 39
Legs
Femur force - left (kN) 1.9
Femur force - right (kN) 0.5
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.27
Maximum tibia index - right 0.42
Tibia axial force - left (kN) 1.4
Tibia axial force - right (kN) 1.5
Foot acceleration (g)
Left 52
Right 50

About the original moderate overlap front test

Side: original test

Rating applies to 2011-24 models built after May 2011

Tested vehicle: 2011 Dodge Durango Express 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags

The Dodge Durango was redesigned for the 2011 model year. Beginning with 2011 models built after May 2011, design changes were made to the side airbags to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.) The tested car was built after the side airbag changes were made.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy's head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1113
B-pillar to longitudinal centerline of driver's seat (cm) -16.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1113
Head HIC-15 118
Neck
Tension (kN) 1.2
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 42
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 39
Average deflection (mm) 35
Maximum deflection rate (m/s) 3.13
Maximum viscous criterion (m/s) 0.58
Pelvis
Iliac force (kN) 0.6
Acetabulum force (kN) 1.2
Combined force (kN) 1.8
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 38
A-P moment (Nm) -33

Passenger injury measures

Test ID CES1113
Head HIC-15 60
Neck
Tension (kN) 0.2
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 21
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 25
Average deflection (mm) 19
Maximum deflection rate (m/s) 3.12
Maximum viscous criterion (m/s) 0.26
Pelvis
Iliac force (kN) 0.0
Acetabulum force (kN) 2.1
Combined force (kN) 2.1
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 37
A-P moment (Nm) 35

About the original side crash test

Roof strength

Rating applies to 2011-23 models

Tested vehicle: 2011 Dodge Durango Express 4-door 4wd

Overall evaluation
Curb weight5,059 lbs
Peak force23,602 lbs
Strength-to-weight ratio4.67

About the roof strength test

Head restraints & seats

Seat type: Power cloth seats (AHR)

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seats (AHR)
Geometry
Backset (mm) 48
Distance below top of head (mm) 18
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 15.6
Head contact time (ms) 47
Force rating 1
Neck forces
Max neck shear force (N) 21
Max neck tension (N) 342

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • Citadel trim
  • R/T trim
  • Citadel Anodized Platinum trim
  • GT trim equipped with Safety/Security and Convenience Group package
Low-beam headlight typeHID projector
High-beam headlight typeHID projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the sharp left and both right curves and inadequate on the gradual left curve.

The low beams created some glare.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

High-beam assist compensates for some limitations of this vehicle's low beams on both left curves and on the gradual right curve.

Technical measurements for this test
Trim level(s)
  • Citadel trim
  • R/T trim
  • Citadel Anodized Platinum trim
  • GT trim equipped with Safety/Security and Convenience Group package
Low-beam headlight type HID projector
High-beam headlight type HID projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2017-20 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 105.6 m None
Straightaway left edge 61.6 m None
250m radius right curve, right edge 61.1 m 5.0%
250m radius left curve, left edge 50.2 m None
150m radius right curve, right edge 51.8 m 34.1%
150m radius left curve, left edge 45.8 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 132.4 m
Straightaway left edge 94.3 m
250m radius right curve, right edge 61.2 m
250m radius left curve, left edge 56.3 m
150m radius right curve, right edge 51.2 m
150m radius left curve, left edge 49.7 m

Trim level(s)

  • SXT trim
  • SXT Plus trim
  • GT trim
Low-beam headlight typeHalogen projector
High-beam headlight typeHalogen projector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • SXT trim
  • SXT Plus trim
  • GT trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen projector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2017-20 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 94.5 m None
Straightaway left edge 66.2 m None
250m radius right curve, right edge 49.9 m None
250m radius left curve, left edge 49.0 m None
150m radius right curve, right edge 39.6 m None
150m radius left curve, left edge 40.5 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 123.2 m
Straightaway left edge 113.3 m
250m radius right curve, right edge 49.9 m
250m radius left curve, left edge 51.5 m
150m radius right curve, right edge 39.2 m
150m radius left curve, left edge 40.6 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Full Speed Forward Collision Warning Plus

Package name

  • Optional Technology Group

Overall evaluation

Applies to 2017-20 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Child seat anchors

Rating applies to 2015-24 models

Overall evaluation
Vehicle trimSXT
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 3 additional seating positions with a tether anchor only.

Overall evaluation
Vehicle trimSXT
Seat type cloth
1 2 3 6 4
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
4
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
none available
6
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
none available
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 13
Clearance angle (degrees) 82
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 16
Clearance angle (degrees) 80
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 20
Clearance angle (degrees) 65
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 18
Clearance angle (degrees) 66
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 31

6

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 33

4

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
