2007 Ford Mustang
midsize convertible / 2-door convertible
Moderate overlap front: original test
Rating applies to 2007-09 models built after May 2007

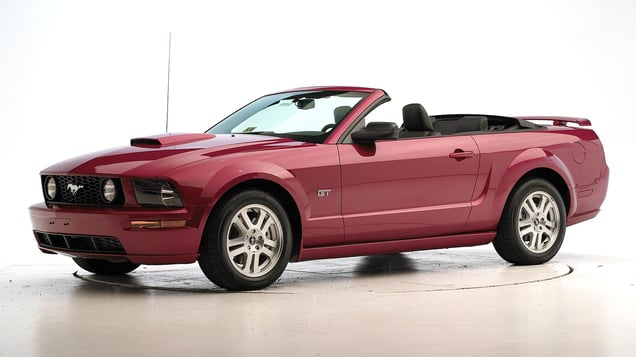

Tested vehicle: 2007 Ford Mustang GT 2-door convertible
The Ford Mustang was redesigned for the 2005 model year and modified beginning with 2007 models manufactured after May 2007 to reduce the likelihood of door opening in frontal offset crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door).
Two tests of a 2007 Mustang convertible were conducted, one before the door modifications were made, and one after. During the first crash test, the window glass in the down position pushed on the driver door latch linkage, and the door opened. Ford responded by adding structure in the doors to prevent the window glass from contacting the latch mechanism and asked the Institute to test the Mustang again. In the second test, the driver door did not open.
The two cars are rated separately, but the overall rating for each is Acceptable.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics Dummy movement was reasonably well controlled. The dummy's head hit the A-pillar, which bent downward and inward during the crash. |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
Smeared greasepaint indicates where the dummy's head hit the A-pillar. Head acceleration from this hit was low.
Forces on the lower right leg were just high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0715 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 13 |
| Left (cm) | 16 |
| Center (cm) | 20 |
| Right (cm) | 18 |
| Brake pedal (cm) | 9 |
| Instrument panel rearward movement | |
| Left (cm) | 4 |
| Right (cm) | 3 |
| Steering column movement | |
| Upward (cm) | 1 |
| Rearward (cm) | 8 |
| A-pillar rearward movement (cm) | 8 |
Driver injury measures
| Test ID | CEF0715 |
|---|---|
| Head | |
| HIC-15 | 275 |
| Peak gs at hard contact | 83 |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 21 |
| Maximum Nij | 0.33 |
| Chest maximum compression (mm) | 26 |
| Legs | |
| Femur force - left (kN) | 3.5 |
| Femur force - right (kN) | 1.6 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.24 |
| Maximum tibia index - right | 0.83 |
| Tibia axial force - left (kN) | 1.7 |
| Tibia axial force - right (kN) | 2.5 |
| Foot acceleration (g) | |
| Left | 52 |
| Right | 91 |
Rating applies to 2005-07 models built before June 2007
Tested vehicle: 2007 Ford Mustang GT 2-door convertible
The Ford Mustang was redesigned for the 2005 model year and modified beginning with 2007 models manufactured after May 2007 to reduce the likelihood of a door opening in frontal offset crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door).
Two tests of the 2007 Mustang convertible were conducted, one before the door modifications were made, and one after. During the first crash test, the window glass in the down position pushed on the driver door latch linkage, and the door opened. Ford responded by adding structure in the doors to prevent the window glass from contacting the latch mechanism and asked the Institute to test the Mustang again. In the second test, the driver door did not open.
The two cars are rated separately, but the overall rating for each is Acceptable.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics Dummy movement was reasonably well controlled. However, the dummy's head hit the A-pillar, which bent downward and inward during the crash. During rebound, the head hit the top of the A-pillar. Late in the crash, the driver door opened. This opening didn't significantly affect dummy movement during the test but shouldn't happen because, in some crashes, it could allow partial or complete occupant ejection. |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
Smeared greasepaint indicates where the dummy's head hit the A-pillar twice. Head accelerations from these hits were low.
The driver door opened, which could allow occupant ejection in some crashes.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0704 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 14 |
| Left (cm) | 18 |
| Center (cm) | 21 |
| Right (cm) | 20 |
| Brake pedal (cm) | 12 |
| Instrument panel rearward movement | |
| Left (cm) | 5 |
| Right (cm) | 4 |
| Steering column movement | |
| Upward (cm) | 4 |
| Rearward (cm) | 9 |
| A-pillar rearward movement (cm) | 9 |
Driver injury measures
| Test ID | CEF0704 |
|---|---|
| Head | |
| HIC-15 | 252 |
| Peak gs at hard contact | 57 |
| Neck | |
| Tension (kN) | 0.7 |
| Extension bending moment (Nm) | no data |
| Maximum Nij | 0.00 |
| Chest maximum compression (mm) | 36 |
| Legs | |
| Femur force - left (kN) | 3.6 |
| Femur force - right (kN) | 2.3 |
| Knee displacement - left (mm) | 3 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.38 |
| Maximum tibia index - right | 0.98 |
| Tibia axial force - left (kN) | 1.8 |
| Tibia axial force - right (kN) | 2.9 |
| Foot acceleration (g) | |
| Left | 57 |
| Right | 90 |
Side: original test
Rating applies to 2007 models built after January 2007
Tested vehicle: 2007 Ford Mustang GT 2-door convertible with optional front seat-mounted combination head and torso airbags
The Ford Mustang was redesigned for the 2005 model year. Beginning with 2007 models manufactured after January 2007, the optional side airbags were modified to improve occupant protection in side impact crashes (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door). Beginning with 2008 models, the side airbags were made standard.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head was hit by the interior side trim and convertible boot (cover for the folded roof). These impacts did not produce high head injury measures, but the head protection is inadequate. |
|
View of the vehicle just after the crash test.
View of the vehicle after the crash with door removed, showing the side airbag and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbag.
Smeared red and yellow greasepaint shows where the rear passenger dummy’s head was hit by the interior side trim.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0703 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -17.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES0703 |
|---|---|
| Head HIC-15 | 213 |
| Neck | |
| Tension (kN) | 0.7 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 44 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 46 |
| Average deflection (mm) | 38 |
| Maximum deflection rate (m/s) | 4.27 |
| Maximum viscous criterion (m/s) | 0.86 |
| Pelvis | |
| Iliac force (kN) | 1.7 |
| Acetabulum force (kN) | 3.4 |
| Combined force (kN) | 4.9 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 95 |
| A-P moment (Nm) | 43 |
Passenger injury measures
| Test ID | CES0703 |
|---|---|
| Head HIC-15 | 287 |
| Neck | |
| Tension (kN) | 1.2 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 29 |
| Lateral force (kN) | 1.9 |
| Torso | |
| Maximum deflection (mm) | 27 |
| Average deflection (mm) | 18 |
| Maximum deflection rate (m/s) | 2.85 |
| Maximum viscous criterion (m/s) | 0.37 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 1.2 |
| Combined force (kN) | 1.5 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 135 |
| A-P moment (Nm) | -19 |
Head restraints & seats
Seat type: Manual-power leather seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual-power leather seats |
|---|---|
| Geometry | |
| Backset (mm) | 25 |
| Distance below top of head (mm) | 28 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 10.9 |
| Head contact time (ms) | 94 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 269 |
| Max neck tension (N) | 704 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
