2005 Ford Ranger
small pickup / Extended cab pickup
Moderate overlap front: original test
Rating applies to 1999-2011 models

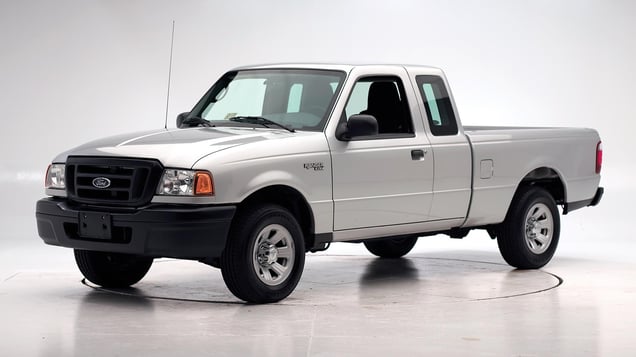

Tested vehicle: 2005 Ford Ranger XLT SuperCab 4x2
The Ford Ranger and Mazda B Series were redesigned for the 1998 model year. Extended cab models with four doors were introduced in the 1999 model year. The Mazda B Series was discontinued after the 2009 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics Dummy movement was reasonably well controlled. After the dummy moved forward into the airbag, it rebounded into the seat without its head coming close to any stiff structure that could cause injury. However, there was too much forward tipping of the driver seat and too much upward movement of the steering wheel. |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well, but steering wheel movement and seat tipping were both excessive.
Dummy movement was reasonably well controlled, despite the excessive tipping of the seat. During rebound, the dummy's head hit the head restraint.
Forces on both lower legs were high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0507 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 19 |
| Left (cm) | 19 |
| Center (cm) | 14 |
| Right (cm) | 14 |
| Brake pedal (cm) | 14 |
| Instrument panel rearward movement | |
| Left (cm) | 8 |
| Right (cm) | 7 |
| Steering column movement | |
| Upward (cm) | 13 |
| Rearward (cm) | 3 |
| A-pillar rearward movement (cm) | 9 |
Driver injury measures
| Test ID | CEF0507 |
|---|---|
| Head | |
| HIC-15 | 339 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Extension bending moment (Nm) | 36 |
| Maximum Nij | 0.33 |
| Chest maximum compression (mm) | 31 |
| Legs | |
| Femur force - left (kN) | 1.6 |
| Femur force - right (kN) | 4.1 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.38 |
| Maximum tibia index - right | 0.68 |
| Tibia axial force - left (kN) | 4.2 |
| Tibia axial force - right (kN) | 6.2 |
| Foot acceleration (g) | |
| Left | 102 |
| Right | 92 |
Side: original test
Rating applies to 1999-2009 models
Tested vehicle: 2008 Ford Ranger XLT SuperCab 4x2 without side airbags (not available)
The Ford Ranger and Mazda B Series were redesigned for the 1998 model year. Extended cab models with four doors were introduced in the 1999 model year, and this version was used in the side impact test. The Mazda B Series was discontinued after the 2009 model year. Structure ratings are based on this test and on a later test of a 2010 Ranger model with side airbags. NOTE: the ratings are based only on the driver, and the side-facing rear jump seats weren’t tested because they are not recommended for safe transport.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection Although the intruding barrier did not hit the dummy's head in this test, the head was not protected from contacts outside the vehicle. This indicates that only slightly different crash circumstances could produce a direct hit to a person's head. |
|
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with the driver door removed, showing the damage to the occupant compartment.
Action shot taken during the side impact crash test showing the driver dummy's head leaning well outward and approaching the window sill.
Smeared greasepaint shows where the dummy's shoulder and arm stub were struck by the sill and door trim panel, respectively. The vehicle offered no protection for the head.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0820 | CES0929 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -11.0 | -12.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | CES0820 |
|---|---|
| Head HIC-15 | 340 |
| Neck | |
| Tension (kN) | 2.4 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 54 |
| Lateral force (kN) | 3.0 |
| Torso | |
| Maximum deflection (mm) | 62 |
| Average deflection (mm) | 55 |
| Maximum deflection rate (m/s) | 9.58 |
| Maximum viscous criterion (m/s) | 2.55 |
| Pelvis | |
| Iliac force (kN) | 2.8 |
| Acetabulum force (kN) | 3.1 |
| Combined force (kN) | 5.6 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 94 |
| A-P moment (Nm) | 22 |
Passenger injury measures
| Test ID | CES0820 |
|---|---|
| Head HIC-15 | |
| Neck | |
| Tension (kN) | |
| Compression (kN) | |
| Shoulder | |
| Lateral deflection (mm) | |
| Lateral force (kN) | |
| Torso | |
| Maximum deflection (mm) | 0 |
| Average deflection (mm) | |
| Maximum deflection rate (m/s) | 0.00 |
| Maximum viscous criterion (m/s) | 0.00 |
| Pelvis | |
| Iliac force (kN) | |
| Acetabulum force (kN) | |
| Combined force (kN) | |
| Left femur | |
| L-M force (kN) | |
| L-M moment (Nm) | |
| A-P moment (Nm) | |
Roof strength
Rating applies to 1999-2011 models
Tested vehicle: 2010 Ford Ranger XLT SuperCab 2wd
| Overall evaluation | |
|---|---|
| Curb weight | 3,681 lbs |
| Peak force | 12,219 lbs |
| Strength-to-weight ratio | 3.32 |
Head restraints & seats
Seat type: All seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | All seats |
|---|---|
| Geometry | |
| Backset (mm) | 25 |
| Distance below top of head (mm) | 20 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 17.0 |
| Head contact time (ms) | 68 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 46 |
| Max neck tension (N) | 612 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
