Top Safety Pick +Top Safety Pick criteria

2016 Honda Civic

small car / 4-door sedan

Award applies only to vehicles with optional front crash prevention

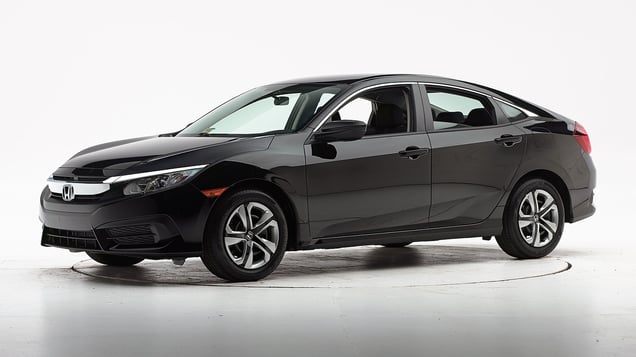

2016 Honda Civic 4-door sedan

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Optional system
Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2016-21 models

Tested vehicle: 2016 Honda Civic LX 4-door

The Honda Civic was redesigned for the 2016 model year. The ratings also apply to the 4-door hatchback version of the Civic, introduced in the 2017 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to control the dummy’s head movement, although the head hit the steering wheel on the left side as the frontal airbag was bottomed out.

Forces during the crash contributed to a moderate risk of injury to the dummy's right lower leg.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1536
Lower occupant compartment
Lower hinge pillar max (cm) 3
Footrest (cm) 7
Left toepan (cm) 6
Brake pedal (cm) 2
Parking brake (cm)
Rocker panel lateral average (cm) 1
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 2
Upper dash (cm) 2
Lower instrument panel (cm) 2

Driver injury measures

Test ID CEN1536
Head
HIC-15 610
Peak gs at hard contact 88
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 15
Maximum Nij 0.26
Chest maximum compression (mm) 21
Femur (kN)
Left 0.2
Right 0.5
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.51
Right 0.99
Tibia axial force (kN)
Left 2.2
Right 3.5
Foot acceleration (g)
Left 83
Right 97

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2016-21 models

Tested vehicle: 2016 Honda Civic Touring 4-door

The Honda Civic was redesigned for the 2016 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda. The ratings also apply to the 4-door hatchback version of the Civic, introduced in the 2017 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1510
Footwell intrusion
Footrest (cm) 5
Left (cm) 9
Center (cm) 6
Right (cm) 4
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 1
Rearward (cm) -1
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1510
Head
HIC-15 422
Peak gs at hard contact no contact
Neck
Tension (kN) 0.6
Extension bending moment (Nm) 47
Maximum Nij 0.20
Chest maximum compression (mm) 26
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 0.2
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.33
Maximum tibia index - right 0.45
Tibia axial force - left (kN) 1.7
Tibia axial force - right (kN) 2.0
Foot acceleration (g)
Left 45
Right 48

About the original moderate overlap front test

Side: original test

Rating applies to 2016-21 models

Tested vehicle: 2016 Honda Civic LX 4-door

The Honda Civic was redesigned for the 2016 model year. Side ratings are assigned by the Institute based on a test conducted by Honda. The ratings also apply to the 4-door hatchback version of the Civic, introduced in the 2017 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1509
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1509
Head HIC-15 299
Neck
Tension (kN) 0.9
Compression (kN) 0.1
Shoulder
Lateral deflection (mm) 33
Lateral force (kN) 1.7
Torso
Maximum deflection (mm) 27
Average deflection (mm) 25
Maximum deflection rate (m/s) 3.50
Maximum viscous criterion (m/s) 0.38
Pelvis
Iliac force (kN) 1.0
Acetabulum force (kN) 1.9
Combined force (kN) 2.8
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 127
A-P moment (Nm) 21

Passenger injury measures

Test ID VTS1509
Head HIC-15 320
Neck
Tension (kN) 0.5
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 41
Lateral force (kN) 1.4
Torso
Maximum deflection (mm) 27
Average deflection (mm) 17
Maximum deflection rate (m/s) 2.90
Maximum viscous criterion (m/s) 0.27
Pelvis
Iliac force (kN) 0.1
Acetabulum force (kN) 0.4
Combined force (kN) 0.4
Left femur
L-M force (kN) 2.9
L-M moment (Nm) 250
A-P moment (Nm) 74

About the original side crash test

Roof strength

Rating applies to 2016-21 models

Tested vehicle: 2016 Honda Civic LX 4-door

Rating applies to both the Civic 4-door sedan (tested) and 4-door hatchback versions and to the structurally similar 2019 and later Insight 4-door sedan.

Overall evaluation
Curb weight2,738 lbs
Peak force15,829 lbs
Strength-to-weight ratio5.78

About the roof strength test

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 30
Distance below top of head (mm) 34
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.7
Head contact time (ms) 59
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 211

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • LX trim
  • EX trim
  • EX-T trim
  • EX-L trim
Low-beam headlight typeHalogen projector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was inadequate in all 4 tests.

Technical measurements for this test
Trim level(s)
  • LX trim
  • EX trim
  • EX-T trim
  • EX-L trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2016-19 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 88.5 m None
Straightaway left edge 29.2 m None
250m radius right curve, right edge 48.5 m None
250m radius left curve, left edge 35.8 m None
150m radius right curve, right edge 37.1 m None
150m radius left curve, left edge 30.2 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 164.4 m
Straightaway left edge 133.7 m
250m radius right curve, right edge 62.7 m
250m radius left curve, left edge 57.6 m
150m radius right curve, right edge 45.1 m
150m radius left curve, left edge 43.9 m

Trim level(s)

  • Touring trim
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on both right curves and inadequate on both left curves.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was fair on the gradual left and both right curves and inadequate on the sharp left curve.

Technical measurements for this test
Trim level(s)
  • Touring trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2016-18 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 103.7 m 100.7%
Straightaway left edge 55.7 m 100.7%
250m radius right curve, right edge 62.5 m None
250m radius left curve, left edge 47.3 m None
150m radius right curve, right edge 52.8 m None
150m radius left curve, left edge 44.9 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 169.4 m
Straightaway left edge 122.6 m
250m radius right curve, right edge 70.9 m
250m radius left curve, left edge 65.1 m
150m radius right curve, right edge 57.3 m
150m radius left curve, left edge 52.1 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Collision Mitigation Braking System

Package name

  • Optional Honda Sensing Package

Overall evaluation

Applies to 2016-18 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Child seat anchors

Rating applies to 2016-21 models

Overall evaluation
Vehicle trimEX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimEX
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 24
Clearance angle (degrees) 81
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 15
Clearance angle (degrees) 80
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 11
Clearance angle (degrees) 71
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 22
Clearance angle (degrees) 83
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Rating applies to 2016-21 models

Overall evaluation
Vehicle trimLX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimLX
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 24
Clearance angle (degrees) 84
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 25
Clearance angle (degrees) 79
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 19
Clearance angle (degrees) 72
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 26
Clearance angle (degrees) 81
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
