Moderate overlap front: original test
Rating applies to 2011-16 models

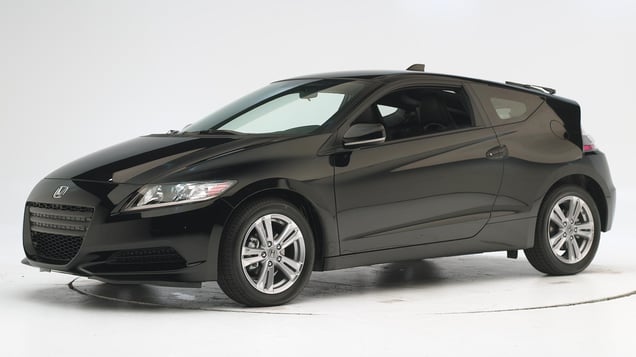

Tested vehicle: 2011 Honda CR-Z 2-door
The Honda CR-Z was introduced in the 2011 model year. The CR-Z seats only two people; there is no rear seat.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.
Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF1105 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 3 |
| Left (cm) | 8 |
| Center (cm) | 11 |
| Right (cm) | 5 |
| Brake pedal (cm) | 10 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | -1 |
| Steering column movement | |
| Upward (cm) | 1 |
| Rearward (cm) | -3 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | CEF1105 |
|---|---|
| Head | |
| HIC-15 | 474 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.28 |
| Chest maximum compression (mm) | 31 |
| Legs | |
| Femur force - left (kN) | 1.2 |
| Femur force - right (kN) | 0.2 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.30 |
| Maximum tibia index - right | 0.38 |
| Tibia axial force - left (kN) | 2.7 |
| Tibia axial force - right (kN) | 2.0 |
| Foot acceleration (g) | |
| Left | 85 |
| Right | 71 |
Side: original test
Rating applies to 2011-16 models
Tested vehicle: 2011 Honda CR-Z 2-door with standard front head curtain airbags and standard front seat-mounted torso airbags
The Honda CR-Z was introduced in the 2011 model year. The CR-Z seats only two people; there is no rear seat.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with the door removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Forces on the left femur were elevated as the door interior panel and armrest intruded into the driver dummy's space.
Measures of occupant compartment intrusion on driver side
| Test ID | CES1101 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -17.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES1101 |
|---|---|
| Head HIC-15 | 286 |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 27 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 38 |
| Average deflection (mm) | 32 |
| Maximum deflection rate (m/s) | 4.12 |
| Maximum viscous criterion (m/s) | 0.57 |
| Pelvis | |
| Iliac force (kN) | 0.7 |
| Acetabulum force (kN) | 2.1 |
| Combined force (kN) | 2.7 |
| Left femur | |
| L-M force (kN) | 1.6 |
| L-M moment (Nm) | 329 |
| A-P moment (Nm) | 117 |
Passenger injury measures
| Test ID | CES1101 |
|---|---|
| Head HIC-15 | |
| Neck | |
| Tension (kN) | |
| Compression (kN) | |
| Shoulder | |
| Lateral deflection (mm) | |
| Lateral force (kN) | |
| Torso | |
| Maximum deflection (mm) | |
| Average deflection (mm) | |
| Maximum deflection rate (m/s) | |
| Maximum viscous criterion (m/s) | |
| Pelvis | |
| Iliac force (kN) | |
| Acetabulum force (kN) | |
| Combined force (kN) | |
| Left femur | |
| L-M force (kN) | |
| L-M moment (Nm) | |
| A-P moment (Nm) | |
Roof strength
Rating applies to 2012-16 models
Tested vehicle: 2012 Honda CR-Z 2-door
| Overall evaluation | |
|---|---|
| Curb weight | 2,682 lbs |
| Peak force | 15,883 lbs |
| Strength-to-weight ratio | 5.92 |
Head restraints & seats
Seat type: Manual cloth seat (AHR)
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seat (AHR) |
|---|---|
| Geometry | |
| Backset (mm) | 34 |
| Distance below top of head (mm) | 12 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 11.9 |
| Head contact time (ms) | 62 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 25 |
| Max neck tension (N) | 340 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
