2021 Honda HR-V

small SUV / 4-door SUV

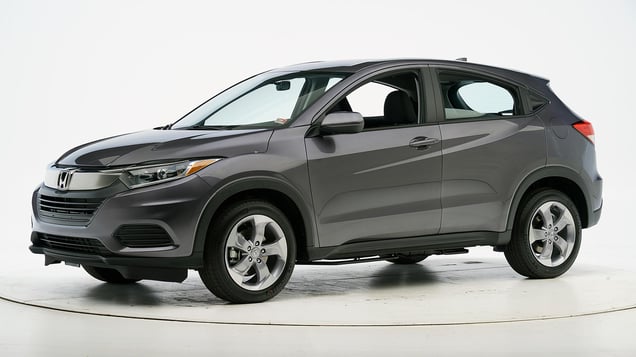

2021 Honda HR-V 4-door SUV

Crashworthiness

Rating overview
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Moderate overlap front: updated test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Optional system
Superior

Seat belts & child restraints

Seat belt reminders
LATCH ease of use

Other available safety features

  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda HR-V EX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with the 2019 model year, the front door hinge pillars and front-end structure were reinforced to improve occupant protection in both small overlap and moderate overlap frontal crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1901
Lower occupant compartment
Lower hinge pillar max (cm) 6
Footrest (cm) 6
Left toepan (cm) 5
Brake pedal (cm) 6
Parking brake (cm)
Rocker panel lateral average (cm) 3
Upper occupant compartment
Steering column 0
Upper hinge pillar max (cm) 5
Upper dash (cm) 5
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1901
Head
HIC-15 179
Peak gs at hard contact no contact
Neck
Tension (kN) 1.2
Extension bending moment (Nm) 4
Maximum Nij 0.21
Chest maximum compression (mm) 23
Femur (kN)
Left 1.0
Right 0.1
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.38
Right 0.34
Tibia axial force (kN)
Left 1.7
Right 2.0
Foot acceleration (g)
Left 68
Right 43

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with the 2019 model year, the front door hinge pillars and front-end structure were reinforced to improve occupant protection in both small overlap and moderate overlap frontal crashes. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1906
Lower occupant compartment
Lower hinge pillar max (cm) 11
Footrest (cm) 9
Right toepan (cm) 10
Center toepan (cm) 6
Rocker panel lateral average (cm) 4
Upper occupant compartment
Center dash (cm) 8
Upper hinge pillar max (cm) 11
Upper dash (cm) 11
Right lower dash (cm) 10

Passenger injury measures

Test ID VTP1906
Head
HIC-15 295
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 18
Maximum Nij 0.19
Chest maximum compression (mm) 21
Femur (kN)
Left 2.0
Right 3.4
Knee displacement (mm)
Left 3
Right 4
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.52
Right 0.24
Tibia axial force (kN)
Left 2.7
Right 2.7
Foot acceleration (g)
Left 53
Right 71

Driver injury measures

Test ID VTP1906
Head
HIC-15 118
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Extension bending moment (Nm) 10
Maximum Nij 0.17
Chest maximum compression (mm) 25
Femur (kN)
Left 0.1
Right 0.5
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.25
Right 0.21
Tibia axial force (kN)
Left 1.4
Right 0.3
Foot acceleration (g)
Left 34
Right 62

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2019-22 models

Tested vehicle: 2019 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with the 2019 model year, the front door hinge pillars and front-end structure were reinforced to improve occupant protection in both small overlap and moderate overlap frontal crashes. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1815
Footwell intrusion
Footrest (cm) 4
Left (cm) 10
Center (cm) 10
Right (cm) 9
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) 2
Rearward (cm) -6
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1815
Head
HIC-15 323
Peak gs at hard contact no contact
Neck
Tension (kN) 1.5
Extension bending moment (Nm) 9
Maximum Nij 0.22
Chest maximum compression (mm) 23
Legs
Femur force - left (kN) 0.5
Femur force - right (kN) 0.2
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.31
Maximum tibia index - right 0.29
Tibia axial force - left (kN) 1.5
Tibia axial force - right (kN) 2.1
Foot acceleration (g)
Left 63
Right 95

About the original moderate overlap front test

Moderate overlap front: updated test

Rating applies to 2021-22 models

Tested vehicle: 2021 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with the 2019 model year, the front door hinge pillars and front-end structure were reinforced to improve occupant protection in both small overlap and moderate overlap frontal crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Thigh/hip
Leg/foot
Driver restraints and dummy kinematics
Rear passenger injury measures
Head/neck
Chest
Thigh
Rear passenger restraints and dummy kinematics

View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

The rear passenger dummy's head remained a safe distance from the front seatback.

Rear passenger dummy injury values indicate a moderate risk of injury to the chest and a likely risk of injury to the head or neck. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.

The rear passenger dummy's lap belt moved from the ideal position on the pelvis onto the abdomen, increasing the risk of abdominal injuries.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEF2111
Footwell intrusion
Footrest (cm) 3
Left (cm) 8
Center (cm) 9
Right (cm) 7
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) -1
Right (cm) 0
Steering column movement
Upward (cm) 0
Rearward (cm) -7
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID CEF2111
Head
HIC-15 275
Peak gs at hard contact no contact
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 8
Maximum Nij 0.22
Chest maximum compression (mm) 20
Femur (kN)
Left 0.4
Right 0.2
Knee displacement (mm)
Left 0
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.31
Right 0.37
Tibia axial force (kN)
Left 1.5
Right 1.5
Foot acceleration (g)
Left 52
Right 70

Rear passenger injury measures

Test ID CEF2111
Head
HIC-15 for head contact during forward excursion
no contact
Peak gs at hard contact no contact
Neck
Tension (kN) 3.7
Compression (kN) 0.5
Maximum Nij for head contact during forward excursion
no contact
Chest
Chest index 48
Shoulder belt tension (kN) 7.1
Thigh (kN)
Left femur compression 0.3
Right femur compression 0.2

About the moderate overlap front test

February 2024 adjustment to rating criteria

Side: original test

Rating applies to 2017-22 models built after March 2017

Tested vehicle: 2017 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with 2017 models built after March 2017, the structure was reinforced at the junction between the B-pillar and door sill to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the 2017 Honda HR-V just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES1709
B-pillar to longitudinal centerline of driver's seat (cm) -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES1709
Head HIC-15 149
Neck
Tension (kN) 0.7
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 38
Lateral force (kN) 1.6
Torso
Maximum deflection (mm) 31
Average deflection (mm) 26
Maximum deflection rate (m/s) 3.09
Maximum viscous criterion (m/s) 0.45
Pelvis
Iliac force (kN) 0.8
Acetabulum force (kN) 1.0
Combined force (kN) 1.8
Left femur
L-M force (kN) 0.8
L-M moment (Nm) 135
A-P moment (Nm) 30

Passenger injury measures

Test ID CES1709
Head HIC-15 177
Neck
Tension (kN) 0.3
Compression (kN) 1.3
Shoulder
Lateral deflection (mm) 26
Lateral force (kN) 1.0
Torso
Maximum deflection (mm) 23
Average deflection (mm) 16
Maximum deflection rate (m/s) 2.11
Maximum viscous criterion (m/s) 0.19
Pelvis
Iliac force (kN) 0.3
Acetabulum force (kN) 1.5
Combined force (kN) 1.5
Left femur
L-M force (kN) 1.6
L-M moment (Nm) 150
A-P moment (Nm) -52

About the original side crash test

Side: updated test

Rating applies to 2017-22 models built after March 2017

Tested vehicle: 2021 Honda HR-V LX 4-door 4wd

The Honda HR-V was introduced in the 2016 model year. Beginning with 2017 models built after March 2017, the structure was reinforced at the junction between the B-pillar and door sill to improve occupant protection in side impact crashes. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES2009
B-pillar to longitudinal centerline of driver's seat (cm) -2.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES2009
Head
HIC-15 325
Peak gs at hard contact no contact
Neck
Tension (kN) 1.5
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 34
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 36
Average deflection (mm) 34
Maximum deflection rate (m/s) 3.04
Maximum viscous criterion (m/s) 0.57
Pelvis
Combined force (kN) 5.3

Passenger injury measures

Test ID CES2009
Head
HIC-15 359
Peak gs at hard contact no contact
Neck
Tension (kN) 0.5
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 40
Lateral force (kN) 1.8
Torso
Maximum deflection (mm) 40
Average deflection (mm) 35
Maximum deflection rate (m/s) 3.59
Maximum viscous criterion (m/s) 0.74
Pelvis
Combined force (kN) 5.9

About the side crash test

Roof strength

Rating applies to 2016-22 models

Tested vehicle: 2016 Honda HR-V LX 4-door 4wd

Overall evaluation
Curb weight3,035 lbs
Peak force15,604 lbs
Strength-to-weight ratio5.14

About the roof strength test

Head restraints & seats

Seat type: Manual cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Manual cloth seat
Geometry
Backset (mm) 36
Distance below top of head (mm) 16
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.8
Head contact time (ms) 56
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 228

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 3 different headlight variations available on this vehicle.

Trim level(s)

  • Touring trim
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right curve, fair on the sharp right curve and inadequate on both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • Touring trim
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-21 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 89.3 m None
Straightaway left edge 48.5 m None
250m radius right curve, right edge 68.5 m None
250m radius left curve, right edge 45.5 m None
150m radius right curve, right edge 59.3 m None
150m radius left curve, left edge 45.5 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 149.4 m
Straightaway left edge 119.1 m
250m radius right curve, right edge 78.7 m
250m radius left curve, left edge 63.6 m
150m radius right curve, right edge 60.2 m
150m radius left curve, left edge 48.7 m

Trim level(s)

  • EX trim
  • EX-L trim
Low-beam headlight typeHalogen projector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • EX trim
  • EX-L trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-22 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 86.1 m None
Straightaway left edge 31.1 m None
250m radius right curve, right edge 47.2 m None
250m radius left curve, left edge 37.4 m None
150m radius right curve, right edge 36.3 m None
150m radius left curve, left edge 31.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 166.2 m
Straightaway left edge 128.5 m
250m radius right curve, right edge 65.0 m
250m radius left curve, left edge 63.9 m
150m radius right curve, right edge 47.1 m
150m radius left curve, left edge 47.5 m

Trim level(s)

  • LX trim
  • Sport trim
Low-beam headlight typeHalogen projector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

Technical measurements for this test
Trim level(s)
  • LX trim
  • Sport trim
Low-beam headlight type Halogen projector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2019-22 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 86.1 m None
Straightaway left edge 31.1 m None
250m radius right curve, right edge 47.2 m None
250m radius left curve, left edge 37.4 m None
150m radius right curve, right edge 36.3 m None
150m radius left curve, left edge 31.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 166.2 m
Straightaway left edge 128.5 m
250m radius right curve, right edge 65.0 m
250m radius left curve, left edge 63.9 m
150m radius right curve, right edge 47.1 m
150m radius left curve, left edge 47.5 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Collision Mitigation Brake System

Package name

  • Optional Honda Sensing

Overall evaluation

Applies to 2019-22 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Seat belt reminders

Rating applies to 2021-22 models

Overall evaluation
Front row
Unbelted occupant alert (audible & visual)
Initiation time
DurationNegligible (under 8 seconds)
Volume
Audio frequency
Second row
Startup status alert (visual)
None
Technical measurements for this test
Background cabin sound pressure level at 24 km/h 56 dB
Audible signal sound pressure level at 24 km/h 57 dB
Difference between background and signal 1.0 dB
Background cabin sound pressure level at 40 km/h 59 dB
Audible signal sound pressure level at 40 km/h 60 dB
Difference between background and signal 1.1 dB
Dominant audio frequency 800 Hz

About the seat belt reminder evaluation

Child seat anchors

Rating applies to 2019-22 models

Overall evaluation
Vehicle trimLX
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
Vehicle trimLX
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
hard-to-find location
other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated Yes
Depth Not visible
Force (lbs) 11
Clearance angle (degrees) 68
Lower anchor B
Open access rated Yes
Depth Not visible
Force (lbs) 11
Clearance angle (degrees) 56
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Roof
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated Yes
Depth Not visible
Force (lbs) 10
Clearance angle (degrees) 73
Lower anchor B
Open access rated Yes
Depth Visible
Force (lbs) 9
Clearance angle (degrees) 71
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
