2019 Jeep Renegade

small SUV / 4-door SUV

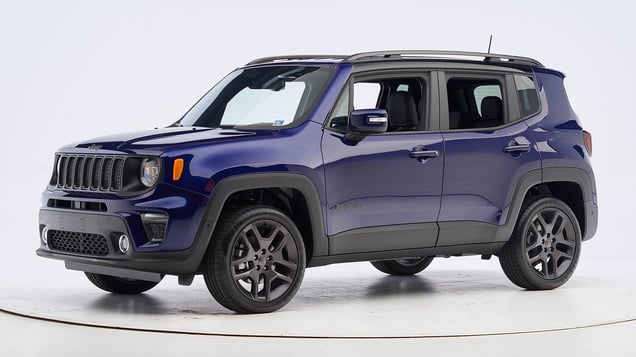

2019 Jeep Renegade 4-door SUV

Crashworthiness

Rating overview
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Side: updated test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Optional system
Superior
Front crash prevention: pedestrian (day)
Not available

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: passenger-side

Rating applies to 2019-23 models

Tested vehicle: 2019 Jeep Renegade Latitude 4-door 4wd

The Jeep Renegade was introduced in the 2015 model year. Beginning with the 2019 model year, the front-end structure, front door hinge pillars, and front door sills were reinforced to improve occupant protection in small overlap and moderate overlap frontal crashes.

Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.

Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
The dummy’s head contacted the right side of the frontal airbag but began to slide to the right into the gap between the frontal and side curtain airbags, leaving the head vulnerable to contact with forward structure. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed.
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on passenger side

Test ID VTP1932
Lower occupant compartment
Lower hinge pillar max (cm) 6
Footrest (cm) 5
Right toepan (cm) 4
Center toepan (cm) 3
Rocker panel lateral average (cm) 0
Upper occupant compartment
Center dash (cm) 6
Upper hinge pillar max (cm) 5
Upper dash (cm) 8
Right lower dash (cm) 8

Passenger injury measures

Test ID VTP1932
Head
HIC-15 80
Peak gs at hard contact no contact
Neck
Tension (kN) 1.3
Extension bending moment (Nm) 9
Maximum Nij 0.26
Chest maximum compression (mm) 18
Femur (kN)
Left 1.2
Right 3.2
Knee displacement (mm)
Left 2
Right 6
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.32
Right 0.42
Tibia axial force (kN)
Left 1.6
Right 1.0
Foot acceleration (g)
Left 31
Right 35

Driver injury measures

Test ID VTP1932
Head
HIC-15 50
Peak gs at hard contact no contact
Neck
Tension (kN) 1.4
Extension bending moment (Nm) 6
Maximum Nij 0.27
Chest maximum compression (mm) 29
Femur (kN)
Left 0.3
Right 0.4
Knee displacement (mm)
Left 2
Right 2
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.39
Right 0.27
Tibia axial force (kN)
Left 0.6
Right 0.3
Foot acceleration (g)
Left 57
Right 26

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2019-23 models

Tested vehicle: 2019 Jeep Renegade Latitude 4-door 4wd

The Jeep Renegade was introduced in the 2015 model year. Beginning with the 2019 model year, the front-end structure, front door hinge pillars, and front door sills were reinforced to improve occupant protection in small overlap and moderate overlap frontal crashes.

Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Fiat Chrysler.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1919
Footwell intrusion
Footrest (cm) 4
Left (cm) 6
Center (cm) 6
Right (cm) 2
Brake pedal (cm) 4
Instrument panel rearward movement
Left (cm) 2
Right (cm) 2
Steering column movement
Upward (cm) -3
Rearward (cm) -5
A-pillar rearward movement (cm) 1

Driver injury measures

Test ID VTF1919
Head
HIC-15 190
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 22
Maximum Nij 0.23
Chest maximum compression (mm) 34
Legs
Femur force - left (kN) 1.4
Femur force - right (kN) 1.0
Knee displacement - left (mm) 3
Knee displacement - right (mm) 2
Maximum tibia index - left 0.41
Maximum tibia index - right 0.43
Tibia axial force - left (kN) 2.0
Tibia axial force - right (kN) 2.0
Foot acceleration (g)
Left 65
Right 123

About the original moderate overlap front test

Side: original test

Rating applies to 2019-23 models

Tested vehicle: 2019 Jeep Renegade Latitude 4-door 4wd

The Jeep Renegade was introduced in the 2015 model year. Two side impact tests of the Renegade were conducted, the first by the Institute of a 2015 model and the second by Fiat Chrysler of a 2019 model. Side ratings are based on both tests.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1920 CES1508
B-pillar to longitudinal centerline of driver's seat (cm) -18.5 -18.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1920 CES1508
Head HIC-15 286 90
Neck
Tension (kN) 1.0 1.1
Compression (kN) 0.5 0.4
Shoulder
Lateral deflection (mm) 25 24
Lateral force (kN) 1.2 1.0
Torso
Maximum deflection (mm) 37 32
Average deflection (mm) 30 28
Maximum deflection rate (m/s) 4.89 4.24
Maximum viscous criterion (m/s) 0.78 0.56
Pelvis
Iliac force (kN) 2.9 2.6
Acetabulum force (kN) 1.5 1.8
Combined force (kN) 4.3 4.3
Left femur
L-M force (kN) 1.4 0.8
L-M moment (Nm) 170 104
A-P moment (Nm) -41 27

Passenger injury measures

Test ID VTS1920 CES1508
Head HIC-15 245 242
Neck
Tension (kN) 0.2 0.2
Compression (kN) 0.6 0.9
Shoulder
Lateral deflection (mm) 41 42
Lateral force (kN) 1.9 1.9
Torso
Maximum deflection (mm) 30 33
Average deflection (mm) 24 27
Maximum deflection rate (m/s) 3.46 3.62
Maximum viscous criterion (m/s) 0.59 0.53
Pelvis
Iliac force (kN) 1.6 0.7
Acetabulum force (kN) 2.2 2.5
Combined force (kN) 3.3 2.5
Left femur
L-M force (kN) 0.2 0.8
L-M moment (Nm) 133 104
A-P moment (Nm) -39 -45

About the original side crash test

Side: updated test

Rating applies to 2019-23 models

Tested vehicle: 2021 Jeep Renegade Latitude 4-door 4wd

The Jeep Renegade was introduced in the 2015 model year.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis
Rear passenger head protection

View of the vehicle just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CES2110
B-pillar to longitudinal centerline of driver's seat (cm) -13.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID CES2110
Head
HIC-15 128
Peak gs at hard contact no contact
Neck
Tension (kN) 1.0
Compression (kN) 0.4
Shoulder
Lateral deflection (mm) 26
Lateral force (kN) 1.1
Torso
Maximum deflection (mm) 36
Average deflection (mm) 30
Maximum deflection rate (m/s) 3.77
Maximum viscous criterion (m/s) 0.62
Pelvis
Combined force (kN) 5.6

Passenger injury measures

Test ID CES2110
Head
HIC-15 289
Peak gs at hard contact no contact
Neck
Tension (kN) 0.2
Compression (kN) 0.6
Shoulder
Lateral deflection (mm) 47
Lateral force (kN) 2.0
Torso
Maximum deflection (mm) 45
Average deflection (mm) 38
Maximum deflection rate (m/s) 5.55
Maximum viscous criterion (m/s) 0.91
Pelvis
Combined force (kN) 4.4

About the side crash test

Roof strength

Rating applies to 2019-23 models

Tested vehicle: 2019 Jeep Renegade Latitude 4-door 4wd

Overall evaluation
Curb weight3,365 lbs
Peak force18,051 lbs
Strength-to-weight ratio5.36

About the roof strength test

Head restraints & seats

Seat type: Power cloth seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power cloth seat
Geometry
Backset (mm) 14
Distance below top of head (mm) -2
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 10.7
Head contact time (ms) 67
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 400

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 6 different headlight variations available on this vehicle.

Trim level(s)

  • Latitude trim equipped with LED Lighting Group; Advanced Technology Group package; built after July 2019
  • Altitude trim equipped with LED Lighting Group; Advanced Technology Group package; built after July 2019
  • Limited trim equipped with LED Lighting Group; Advanced Technology Group package; built after July 2019
  • High Altitude trim equipped with Advanced Technology Group package; built after July 2019
Low-beam headlight typeLED projector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was good on the left side of the road and inadequate on the right side. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on both right curves and fair on both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on the gradual right curve.

Technical measurements for this test
Trim level(s)
  • Latitude trim equipped with LED Lighting Group; Advanced Technology Group package
  • Altitude trim equipped with LED Lighting Group; Advanced Technology Group package
  • Limited trim equipped with LED Lighting Group; Advanced Technology Group package
  • High Altitude trim equipped with Advanced Technology Group package
Low-beam headlight type LED projector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-23 models built after July 2019
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 66.5 m None
Straightaway left edge 55.3 m None
250m radius right curve, right edge 68.6 m None
250m radius left curve, right edge 52.4 m None
150m radius right curve, right edge 62.0 m None
150m radius left curve, left edge 49.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 152.8 m
Straightaway left edge 112.3 m
250m radius right curve, right edge 82.9 m
250m radius left curve, left edge 70.8 m
150m radius right curve, right edge 65.7 m
150m radius left curve, left edge 58.9 m

Trim level(s)

  • Latitude trim equipped with LED Lighting Group package; built after July 2019
  • Altitude trim equipped with LED Lighting Group package; built after July 2019
  • Limited trim equipped with LED Lighting Group package; built after July 2019
  • Trailhawk trim equipped with LED Lighting Group package; built after July 2019
  • High Altitude trim; built after July 2019
Low-beam headlight typeLED projector
High-beam headlight typeLED reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was good on the left side of the road and inadequate on the right side. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on both right curves and fair on both left curves.

Technical measurements for this test
Trim level(s)
  • Latitude trim equipped with LED Lighting Group package
  • Altitude trim equipped with LED Lighting Group package
  • Limited trim equipped with LED Lighting Group package
  • Trailhawk trim equipped with LED Lighting Group package
  • High Altitude trim
Low-beam headlight type LED projector
High-beam headlight type LED reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2019-23 models built after July 2019
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 66.5 m None
Straightaway left edge 55.3 m None
250m radius right curve, right edge 68.6 m None
250m radius left curve, right edge 52.4 m None
150m radius right curve, right edge 62.0 m None
150m radius left curve, left edge 49.4 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 152.8 m
Straightaway left edge 112.3 m
250m radius right curve, right edge 82.9 m
250m radius left curve, left edge 70.8 m
150m radius right curve, right edge 65.7 m
150m radius left curve, left edge 58.9 m

Trim level(s)

  • Latitude trim equipped with Advanced Technology Group package
  • Altitude trim equipped with Advanced Technology Group package
  • Limited trim equipped with Advanced Technology Group package
Low-beam headlight typeHalogen reflector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • Latitude trim equipped with Advanced Technology Group package
  • Altitude trim equipped with Advanced Technology Group package
  • Limited trim equipped with Advanced Technology Group package
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-20 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 75.3 m None
Straightaway left edge 42.4 m None
250m radius right curve, right edge 47.3 m None
250m radius left curve, left edge 40.1 m None
150m radius right curve, right edge 44.4 m None
150m radius left curve, left edge 38.6 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 118.2 m
Straightaway left edge 95.6 m
250m radius right curve, right edge 67.8 m
250m radius left curve, left edge 61.9 m
150m radius right curve, right edge 53.7 m
150m radius left curve, left edge 50.1 m

Trim level(s)

  • All trims equipped with No package
Low-beam headlight typeHalogen reflector
High-beam headlight typeHalogen reflector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

Technical measurements for this test
Trim level(s)
  • All trims equipped with No package
Low-beam headlight type Halogen reflector
High-beam headlight type Halogen reflector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2016-23 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 75.3 m None
Straightaway left edge 42.4 m None
250m radius right curve, right edge 47.3 m None
250m radius left curve, left edge 40.1 m None
150m radius right curve, right edge 44.4 m None
150m radius left curve, left edge 38.6 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 118.2 m
Straightaway left edge 95.6 m
250m radius right curve, right edge 67.8 m
250m radius left curve, left edge 61.9 m
150m radius right curve, right edge 53.7 m
150m radius left curve, left edge 50.1 m

Trim level(s)

  • Latitude trim equipped with LED Lighting Group and Advanced Technology Group packages; built before August 2019
  • Altitude trim equipped with LED Lighting Group and Advanced Technology Group packages; built before August 2019
  • Limited trim equipped with LED Lighting Group and Advanced Technology Group packages; built before August 2019
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit

Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was fair on the sharp right and sharp left curves and inadequate on the gradual right and gradual left curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.

Technical measurements for this test
Trim level(s)
  • Latitude trim equipped with LED Lighting Group and Advanced Technology Group packages
  • Altitude trim equipped with LED Lighting Group and Advanced Technology Group packages
  • Limited trim equipped with LED Lighting Group and Advanced Technology Group packages
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019 models built before August 2019
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 54.0 m None
Straightaway left edge 49.8 m None
250m radius right curve, right edge 54.2 m None
250m radius left curve, right edge 39.3 m None
150m radius right curve, right edge 51.0 m None
150m radius left curve, left edge 45.8 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 143.7 m
Straightaway left edge 127.7 m
250m radius right curve, right edge 76.4 m
250m radius left curve, left edge 70.9 m
150m radius right curve, right edge 62.4 m
150m radius left curve, left edge 60.7 m

Trim level(s)

  • Latitude trim equipped with LED Lighting Group package; built before August 2019
  • Altitude trim equipped with LED Lighting Group package; built before August 2019
  • Limited trim equipped with LED Lighting Group package; built before August 2019
  • Trailhawk trim equipped with LED Lighting Group package; built before August 2019
  • High Altitude trim; built before August 2019
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on the left side of the road and inadequate on the right side. On curves, visibility was fair on the sharp right and sharp left curves and inadequate on the gradual right and gradual left curves.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right curve and fair on the sharp right and both left curves.

Technical measurements for this test
Trim level(s)
  • Latitude trim equipped with LED Lighting Group package
  • Altitude trim equipped with LED Lighting Group package
  • Limited trim equipped with LED Lighting Group package
  • Trailhawk trim equipped with LED Lighting Group package
  • High Altitude trim
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2019 models built before August 2019
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 54.0 m None
Straightaway left edge 49.8 m None
250m radius right curve, right edge 54.2 m None
250m radius left curve, right edge 39.3 m None
150m radius right curve, right edge 51.0 m None
150m radius left curve, left edge 45.8 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 143.7 m
Straightaway left edge 127.7 m
250m radius right curve, right edge 76.4 m
250m radius left curve, left edge 70.9 m
150m radius right curve, right edge 62.4 m
150m radius left curve, left edge 60.7 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Full Speed Forward Collision Warning Plus

Package name

  • Optional Advanced Technology Group II (Sport trim)
  • optional Advanced Technology Group (Latitude & Limited)

Overall evaluation

Applies to 2019-22 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Child seat anchors

Rating applies to 2019-23 models

Overall evaluation
Vehicle trimLatitude
Seat type cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimLatitude
Seat type cloth
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 6
Clearance angle (degrees) 74
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 9
Clearance angle (degrees) 64
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 11
Clearance angle (degrees) 64
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 11
Clearance angle (degrees) 62
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
