2006 Kia Amanti
large car / 4-door sedan
Moderate overlap front: original test
Rating applies to 2004-06 models

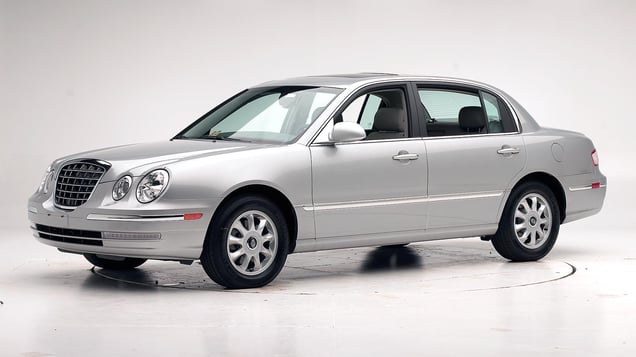

Tested vehicle: 2005 Kia Amanti 4-door
The Kia Amanti was introduced in the 2004 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
Smeared greasepaint indicates where the dummy's head hit the roof rail and head restraint during rebound. Head accelerations from these hits were low.
Forces on the lower right leg were high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0514 |
| Footwell intrusion | |
| Footrest (cm) | 11 |
| Left (cm) | 16 |
| Center (cm) | 17 |
| Right (cm) | 18 |
| Brake pedal (cm) | 11 |
| Instrument panel rearward movement | |
| Left (cm) | 7 |
| Right (cm) | 7 |
| Steering column movement | |
| Upward (cm) | 6 |
| Rearward (cm) | 7 |
| A-pillar rearward movement (cm) | 3 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0514 |
| Head | |
| HIC-15 | 314 |
| Peak gs at hard contact | 9 |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 16 |
| Maximum Nij | 0.27 |
| Chest maximum compression (mm) | 36 |
| Legs | |
| Femur force - left (kN) | 6.7 |
| Femur force - right (kN) | 6.7 |
| Knee displacement - left (mm) | 9 |
| Knee displacement - right (mm) | 4 |
| Maximum tibia index - left | 0.36 |
| Maximum tibia index - right | 0.45 |
| Tibia axial force - left (kN) | 0.9 |
| Tibia axial force - right (kN) | 5.8 |
| Foot acceleration (g) | |
| Left | 87 |
| Right | 143 |
Head restraints & seats
Seat type: All seats AHR
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | All seats AHR |
|---|---|
| Geometry | |
| Backset (mm) | 58 |
| Distance below top of head (mm) | 50 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 9.6 |
| Head contact time (ms) | 77 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 105 |
| Max neck tension (N) | 588 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
