2010 Lexus HS 250h
midsize luxury car / 4-door sedan
Moderate overlap front: original test
Rating applies to 2010-12 models

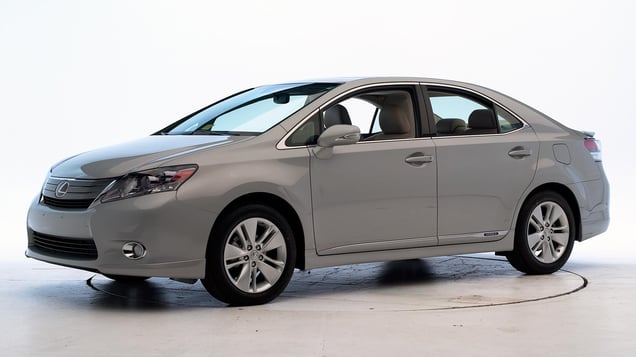

Tested vehicle: 2010 Lexus HS 250h 4-door
The Lexus HS 250h was introduced in the 2010 model year and is derived from the Toyota Prius. Frontal ratings are assigned by the Institute based on a test conducted by Toyota.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF0911 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 5 |
| Left (cm) | 8 |
| Center (cm) | 14 |
| Right (cm) | 9 |
| Brake pedal (cm) | 6 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 2 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -3 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | VTF0911 |
|---|---|
| Head | |
| HIC-15 | 146 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 16 |
| Maximum Nij | 0.29 |
| Chest maximum compression (mm) | 26 |
| Legs | |
| Femur force - left (kN) | 1.2 |
| Femur force - right (kN) | 1.8 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 2 |
| Maximum tibia index - left | 0.46 |
| Maximum tibia index - right | 0.57 |
| Tibia axial force - left (kN) | 2.5 |
| Tibia axial force - right (kN) | 3.2 |
| Foot acceleration (g) | |
| Left | 73 |
| Right | 108 |
Side: original test
Rating applies to 2010-12 models
Tested vehicle: 2010 Lexus HS 250h 4-door with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags
The Lexus HS 250h was introduced in the 2010 model year and is derived from the Toyota Prius.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES1007 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -13.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES1007 |
|---|---|
| Head HIC-15 | 384 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 50 |
| Lateral force (kN) | 2.2 |
| Torso | |
| Maximum deflection (mm) | 39 |
| Average deflection (mm) | 23 |
| Maximum deflection rate (m/s) | 2.75 |
| Maximum viscous criterion (m/s) | 0.63 |
| Pelvis | |
| Iliac force (kN) | 1.4 |
| Acetabulum force (kN) | 1.3 |
| Combined force (kN) | 2.4 |
| Left femur | |
| L-M force (kN) | 0.7 |
| L-M moment (Nm) | 191 |
| A-P moment (Nm) | 47 |
Passenger injury measures
| Test ID | CES1007 |
|---|---|
| Head HIC-15 | 32 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 10 |
| Lateral force (kN) | 0.6 |
| Torso | |
| Maximum deflection (mm) | 20 |
| Average deflection (mm) | 15 |
| Maximum deflection rate (m/s) | 1.52 |
| Maximum viscous criterion (m/s) | 0.14 |
| Pelvis | |
| Iliac force (kN) | 0.4 |
| Acetabulum force (kN) | 2.3 |
| Combined force (kN) | 2.6 |
| Left femur | |
| L-M force (kN) | 0.4 |
| L-M moment (Nm) | 149 |
| A-P moment (Nm) | -18 |
Roof strength
Rating applies to 2010-12 models
Tested vehicle: 2010 Lexus HS 250h 4-door
| Overall evaluation | |
|---|---|
| Curb weight | 3,650 lbs |
| Peak force | 13,141 lbs |
| Strength-to-weight ratio | 3.60 |
Head restraints & seats
Seat type: Power leather seats (AHR) built. after May 2010
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power leather seats (AHR) mfg. after May 2010 |
|---|---|
| Geometry | |
| Backset (mm) | 37 |
| Distance below top of head (mm) | 44 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 15.4 |
| Head contact time (ms) | 75 |
| Force rating | 2 |
| Neck forces | |
| Max neck shear force (N) | 151 |
| Max neck tension (N) | 618 |
Seat type: Power Leather Seats (AHR) built. before June 2010
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power Leather Seats (AHR) mfg. before June 2010 |
|---|---|
| Geometry | |
| Backset (mm) | 37 |
| Distance below top of head (mm) | 44 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 13.9 |
| Head contact time (ms) | 75 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 246 |
| Max neck tension (N) | 792 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
