2017 Lincoln MKC

small SUV / 4-door SUV

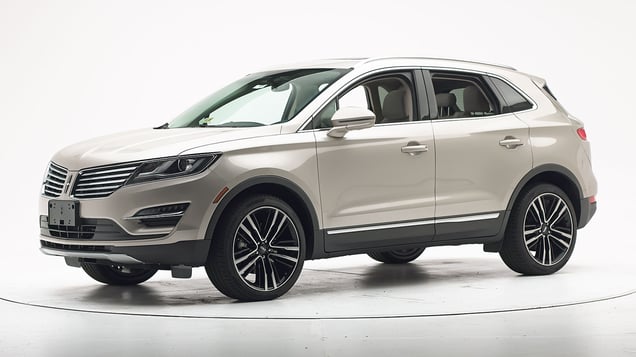

2017 Lincoln MKC 4-door SUV

Crashworthiness

Rating overview
Moderate overlap front: original test
Side: original test

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Optional system
Basic

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning
  • Optional lane departure prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2015-19 models

Tested vehicle: 2015 Lincoln MKC Reserve 4-door 4wd

The Lincoln MKC was introduced in the 2015 model year and is derived from the Ford Escape. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Ford.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1407
Footwell intrusion
Footrest (cm) 5
Left (cm) 7
Center (cm) 6
Right (cm) 6
Brake pedal (cm) 3
Instrument panel rearward movement
Left (cm) 2
Right (cm) 1
Steering column movement
Upward (cm) 1
Rearward (cm) -2
A-pillar rearward movement (cm) 1

Driver injury measures

Test ID VTF1407
Head
HIC-15 231
Peak gs at hard contact no contact
Neck
Tension (kN) 0.9
Extension bending moment (Nm) 7
Maximum Nij 0.22
Chest maximum compression (mm) 28
Legs
Femur force - left (kN) 0.7
Femur force - right (kN) 0.8
Knee displacement - left (mm) 1
Knee displacement - right (mm) 3
Maximum tibia index - left 0.31
Maximum tibia index - right 0.44
Tibia axial force - left (kN) 2.1
Tibia axial force - right (kN) 2.7
Foot acceleration (g)
Left 42
Right 76

About the original moderate overlap front test

Side: original test

Rating applies to 2015-19 models

Tested vehicle: 2015 Lincoln MKC Reserve 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Lincoln MKC was introduced in the 2015 model year and is derived from the Ford Escape. Side ratings are assigned by the Institute based on a test conducted by Ford.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1411
B-pillar to longitudinal centerline of driver's seat (cm) -18.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1411
Head HIC-15 258
Neck
Tension (kN) 1.2
Compression (kN) 0.2
Shoulder
Lateral deflection (mm) 23
Lateral force (kN) 1.2
Torso
Maximum deflection (mm) 26
Average deflection (mm) 23
Maximum deflection rate (m/s) 3.49
Maximum viscous criterion (m/s) 0.45
Pelvis
Iliac force (kN) 1.5
Acetabulum force (kN) 1.8
Combined force (kN) 3.1
Left femur
L-M force (kN) 0.7
L-M moment (Nm) 91
A-P moment (Nm) 22

Passenger injury measures

Test ID VTS1411
Head HIC-15 157
Neck
Tension (kN) 0.1
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 40
Lateral force (kN) 1.7
Torso
Maximum deflection (mm) 33
Average deflection (mm) 25
Maximum deflection rate (m/s) 2.78
Maximum viscous criterion (m/s) 0.43
Pelvis
Iliac force (kN) 0.0
Acetabulum force (kN) 2.2
Combined force (kN) 2.2
Left femur
L-M force (kN) 0.2
L-M moment (Nm) 46
A-P moment (Nm) 30

About the original side crash test

Headlights

Trim level(s)

  • Premiere trim
  • Select trim
  • Reserve trim
Low-beam headlight typeHID projector
High-beam headlight typeHID projector
Curve-adaptive?No
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination Excessive glare

Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on both right curves and fair on both left curves.

The low beams created excessive glare.

High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.

Technical measurements for this test
Trim level(s)
  • Premiere trim
  • Select trim
  • Reserve trim
Low-beam headlight type HID projector
High-beam headlight type HID projector
Curve-adaptive? No
High-beam assist? No
Overall rating
Applies to 2017 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 124.5 m 265.9%
Straightaway left edge 73.9 m 265.9%
250m radius right curve, right edge 68.5 m 346.6%
250m radius left curve, left edge 58.7 m 46.7%
150m radius right curve, right edge 56.0 m 289.8%
150m radius left curve, left edge 49.4 m 43.2%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 136.0 m
Straightaway left edge 94.8 m
250m radius right curve, right edge 69.1 m
250m radius left curve, left edge 62.5 m
150m radius right curve, right edge 57.9 m
150m radius left curve, left edge 53.5 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Optional Collision Warning with Brake Support

Package name

  • Optional Technology Package

Overall evaluation

Applies to 2015-18 models

Basic
Basic
with optional equipment
  • This system meets the requirements for forward collision warning.
  • Autobrake not available.

About the original front crash prevention test

Child seat anchors

Rating applies to 2017-19 models

Overall evaluation
Vehicle trimReserve
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.

Note: When anchors are borrowed, they aren't available to use in their designated positions.

Overall evaluation
Vehicle trimReserve
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
2
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
Can be borrowed from 1 and 3
3
Tether anchor
easy-to-find location
other hardware could be confused for anchor
Lower anchors
not too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 0-2
Force (lbs) 9
Clearance angle (degrees) 63
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 12
Clearance angle (degrees) 73
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
Lower latch is shared for this seat position
Lower anchor B
Lower latch is shared for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 6
Clearance angle (degrees) 79
Lower anchor B
Open access rated No
Depth (cm) 0-2
Force (lbs) 6
Clearance angle (degrees) 48
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
