Small overlap front
The small overlap front evaluation consists of a driver-side and a passenger-side component. If the results of the two evaluations differ, then the combined small overlap rating is equal to the lower rating.
Driver-side
- Rating applies to 2018-25 models
Tested vehicle: 2019 Mitsubishi Eclipse Cross SEL 4-door 4wd
The Mitsubishi Eclipse Cross was introduced in the 2018 model year and is derived from the Mitsubishi Outlander. There was no 2021 model year produced. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Mitsubishi.
Evaluation criteria | Rating |
---|---|
Overall driver-side evaluation | |
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Evaluation criteria | Measurement |
---|---|
Test ID | VTN1908 |
Lower occupant compartment | |
Lower hinge pillar max (cm) | 15 |
Footrest (cm) | 9 |
Left toepan (cm) | 7 |
Brake pedal (cm) | 6 |
Parking brake (cm) | 0 |
Rocker panel lateral average (cm) | 6 |
Upper occupant compartment | |
Steering column | 0 |
Upper hinge pillar max (cm) | 8 |
Upper dash (cm) | 8 |
Lower instrument panel (cm) | 11 |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTN1908 |
Head | |
HIC-15 | 139 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.0 |
Extension bending moment (Nm) | 31 |
Maximum Nij | 0.36 |
Chest maximum compression (mm) | 18 |
Femur (kN) | |
Left | 2.1 |
Right | 1.2 |
Knee displacement (mm) | |
Left | 3 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.54 |
Right | 0.26 |
Tibia axial force (kN) | |
Left | 1.9 |
Right | 2.6 |
Foot acceleration (g) | |
Left | 102 |
Right | 55 |
Passenger-side
- Rating applies to 2018-25 models
Tested vehicle: 2018 Mitsubishi Eclipse Cross ES 4-door 4wd
The Mitsubishi Eclipse Cross was introduced in the 2018 model year and is derived from the Mitsubishi Outlander. There was no 2021 model year produced. Passenger-side overlap frontal ratings are assigned by the Institute based on a test conducted by Mitsubishi.
Evaluation criteria | Rating |
---|---|
Overall passenger-side evaluation | |
Structure and safety cage | |
Passenger injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Passenger restraints and dummy kinematics
The dummy’s head contacted the frontal airbag but slid off toward the right side, leaving the head vulnerable to contact with forward structure. The side curtain airbag deployed and has sufficient forward coverage to protect the head from contact with side structure and outside objects. The side torso airbag also deployed. | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
Evaluation criteria | Measurement |
---|---|
Test ID | VTP1915 |
Lower occupant compartment | |
Lower hinge pillar max (cm) | 14 |
Footrest (cm) | 9 |
Right toepan (cm) | 7 |
Center toepan (cm) | 5 |
Rocker panel lateral average (cm) | 3 |
Upper occupant compartment | |
Center dash (cm) | 2 |
Upper hinge pillar max (cm) | 8 |
Upper dash (cm) | 3 |
Right lower dash (cm) | 6 |
Passenger injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTP1915 |
Head | |
HIC-15 | 173 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.1 |
Extension bending moment (Nm) | 21 |
Maximum Nij | 0.27 |
Chest maximum compression (mm) | 18 |
Femur (kN) | |
Left | 1.3 |
Right | 4.0 |
Knee displacement (mm) | |
Left | 1 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.31 |
Right | 0.24 |
Tibia axial force (kN) | |
Left | 1.5 |
Right | 1.4 |
Foot acceleration (g) | |
Left | 43 |
Right | 40 |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTP1915 |
Head | |
HIC-15 | 95 |
Peak gs at hard contact | no data |
Neck | |
Tension (kN) | 0.6 |
Extension bending moment (Nm) | 11 |
Maximum Nij | 0.15 |
Chest maximum compression (mm) | 24 |
Femur (kN) | |
Left | 0.2 |
Right | 0.6 |
Knee displacement (mm) | |
Left | 0 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.25 |
Right | 0.22 |
Tibia axial force (kN) | |
Left | 1.4 |
Right | 1.8 |
Foot acceleration (g) | |
Left | 36 |
Right | 44 |
Moderate overlap front: original test
Rating applies to 2018-25 models
Tested vehicle: 2018 Mitsubishi Eclipse Cross SE 4-door 4wd
The Mitsubishi Eclipse Cross was introduced in the 2018 model year and is derived from the Mitsubishi Outlander. There was no 2021 model year produced. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Mitsubishi.
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Evaluation criteria | Measurement |
---|---|
Test ID | VTF1720 |
Footwell intrusion | |
Footrest (cm) | 4 |
Left (cm) | 9 |
Center (cm) | 11 |
Right (cm) | 9 |
Brake pedal (cm) | 8 |
Instrument panel rearward movement | |
Left (cm) | 1 |
Right (cm) | 1 |
Steering column movement | |
Upward (cm) | 1 |
Rearward (cm) | -3 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | VTF1720 |
Head | |
HIC-15 | 248 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.6 |
Extension bending moment (Nm) | 20 |
Maximum Nij | 0.26 |
Chest maximum compression (mm) | 23 |
Legs | |
Femur force - left (kN) | 0.6 |
Femur force - right (kN) | 0.8 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.26 |
Maximum tibia index - right | 0.47 |
Tibia axial force - left (kN) | 2.1 |
Tibia axial force - right (kN) | 2.8 |
Foot acceleration (g) | |
Left | 52 |
Right | 76 |
Moderate overlap front: updated test
Rating applies to 2022-25 models
Tested vehicle: 2022 Mitsubishi Eclipse Cross 4-door 4wd
The Mitsubishi Eclipse Cross was introduced in the 2018 model year and is derived from the Mitsubishi Outlander.
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Thigh/hip | |
Leg/foot | |
Driver restraints and dummy kinematics | |
Rear passenger injury measures | |
Head/neck | |
Chest | |
Thigh | |
Rear passenger restraints and dummy kinematics
|
View of the vehicle after the crash showing the airbags and damage to the occupant compartment.

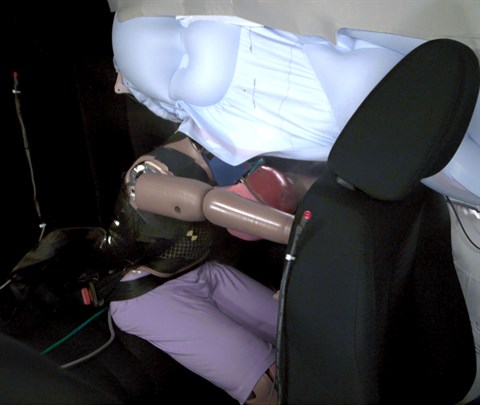

The rear passenger dummy's head came close to contacting the front seatback, which increases the risk of head injuries.
Rear passenger dummy injury values indicate a likely risk of injury to the head or neck and chest. During the crash, the shoulder belt remained in an ideal position on the dummy’s chest.
The rear passenger dummy's lap belt remained in the ideal position on the pelvis.
Measures of occupant compartment intrusion on driver side
Evaluation criteria | Measurement |
---|---|
Test ID | CEF2107 |
Footwell intrusion | |
Footrest (cm) | 1 |
Left (cm) | 5 |
Center (cm) | 6 |
Right (cm) | 7 |
Brake pedal (cm) | 1 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 0 |
Steering column movement | |
Upward (cm) | 2 |
Rearward (cm) | -5 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | CEF2107 |
Head | |
HIC-15 | 226 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.7 |
Extension bending moment (Nm) | 24 |
Maximum Nij | 0.27 |
Chest maximum compression (mm) | 23 |
Femur (kN) | |
Left | 0.6 |
Right | 0.9 |
Knee displacement (mm) | |
Left | 1 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.25 |
Right | 0.38 |
Tibia axial force (kN) | |
Left | 2.4 |
Right | 2.0 |
Foot acceleration (g) | |
Left | 71 |
Right | 66 |
Rear passenger injury measures
Test ID | CEF2107 |
---|---|
Head | |
HIC-15 for head contact during forward excursion |
no contact
|
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 3.3 |
Compression (kN) | 0.0 |
Maximum Nij for head contact during forward excursion |
no contact
|
Chest | |
Chest index | 45 |
Shoulder belt tension (kN) | 8.0 |
Thigh (kN) | |
Left femur compression | 0.1 |
Right femur compression | 0.2 |
Side: updated test
Rating applies to 2018-25 models
Tested vehicle: 2020 Mitsubishi Eclipse Cross 4-door 4wd
The Mitsubishi Eclipse Cross was introduced in the 2018 model year and is derived from the Mitsubishi Outlander. There was no 2021 model year produced.
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis | |
Driver head protection | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis | |
Rear passenger head protection |
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
Evaluation criteria | Measurement |
---|---|
Test ID | CES2002 |
B-pillar to longitudinal centerline of driver's seat (cm) | -12.0 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | CES2002 |
Head | |
HIC-15 | 155 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.2 |
Compression (kN) | 0.3 |
Shoulder | |
Lateral deflection (mm) | 18 |
Lateral force (kN) | 1.0 |
Torso | |
Maximum deflection (mm) | 58 |
Average deflection (mm) | 40 |
Maximum deflection rate (m/s) | 4.69 |
Maximum viscous criterion (m/s) | 1.33 |
Pelvis | |
Combined force (kN) | 5.8 |
Passenger injury measures
Evaluation criteria | Measurement |
---|---|
Test ID | CES2002 |
Head | |
HIC-15 | 166 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.2 |
Compression (kN) | 0.6 |
Shoulder | |
Lateral deflection (mm) | 44 |
Lateral force (kN) | 1.8 |
Torso | |
Maximum deflection (mm) | 51 |
Average deflection (mm) | 40 |
Maximum deflection rate (m/s) | 5.05 |
Maximum viscous criterion (m/s) | 1.00 |
Pelvis | |
Combined force (kN) | 2.7 |
Seat belt reminders
Rating applies to 2022-25 models
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Front row | |
Unbelted occupant alert (audible & visual) | |
Initiation time | |
Duration | Long enough (90+ seconds) |
Volume | |
Audio frequency | |
Second row | |
Startup status alert (visual) | None |
Background cabin sound pressure level at 24 km/h | 51 dB |
Audible signal sound pressure level at 24 km/h | 68 dB |
Difference between background and signal | 16.7 dB |
Background cabin sound pressure level at 40 km/h | 55 dB |
Audible signal sound pressure level at 40 km/h | 66 dB |
Difference between background and signal | 10.6 dB |
Dominant audio frequency | 2000 Hz |
Child seat anchors
Rating applies to 2019-25 models
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Vehicle trim | ES |
Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
Evaluation criteria | Rating |
---|---|
Overall evaluation | |
Vehicle trim | ES |
Seat type | cloth |
Rating icon | Rating |
---|---|
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
No hardware available |
Details by seating position
Position | Rating |
---|---|
1 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
not too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
2 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
none available | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
not too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 4 |
Clearance angle (degrees) | 92 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 4 |
Clearance angle (degrees) | 91 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
Lower anchor A | |
---|---|
No lower latch for this seat position | |
Lower anchor B | |
No lower latch for this seat position | |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 5 |
Clearance angle (degrees) | 95 |
Lower anchor B | |
Open access rated | No |
Depth (cm) | 0-2 |
Force (lbs) | 3 |
Clearance angle (degrees) | 92 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
