2006 Mitsubishi Endeavor
midsize SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2004-11 models

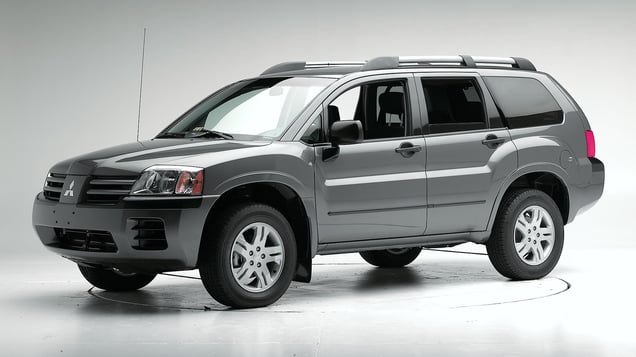

Tested vehicle: 2004 Mitsubishi Endeavor LS 4-door 4wd
The Mitsubishi Endeavor was introduced in the 2004 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Smeared greasepaint indicates where the dummy's head hit the B-pillar and roof rail during rebound. Head accelerations from these hits were low.
Forces on the lower right leg were high enough to indicate the possibility of injury.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0321 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 11 |
| Left (cm) | 17 |
| Center (cm) | 15 |
| Right (cm) | 11 |
| Brake pedal (cm) | 13 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Test ID | CEF0321 |
|---|---|
| Head | |
| HIC-15 | 186 |
| Peak gs at hard contact | 11 |
| Neck | |
| Tension (kN) | 2.0 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.40 |
| Chest maximum compression (mm) | 35 |
| Legs | |
| Femur force - left (kN) | 2.9 |
| Femur force - right (kN) | 1.9 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.32 |
| Maximum tibia index - right | 0.83 |
| Tibia axial force - left (kN) | 0.8 |
| Tibia axial force - right (kN) | 2.5 |
| Foot acceleration (g) | |
| Left | 91 |
| Right | 59 |
Roof strength
Rating applies to 2004-11 models
Tested vehicle: 2010 Mitsubishi Endeavor SE 4-door 4wd
| Overall evaluation | |
|---|---|
| Curb weight | 4,174 lbs |
| Peak force | 12,533 lbs |
| Strength-to-weight ratio | 3.00 |
Head restraints & seats
Seat type: Leather seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Leather seats |
|---|---|
| Geometry | |
| Backset (mm) | 90 |
| Distance below top of head (mm) | 90 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 0.0 |
| Head contact time (ms) | |
| Force rating | 0 |
| Neck forces | |
| Max neck shear force (N) | |
| Max neck tension (N) | |
Seat type: Cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 118 |
| Distance below top of head (mm) | 68 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 0.0 |
| Head contact time (ms) | |
| Force rating | 0 |
| Neck forces | |
| Max neck shear force (N) | |
| Max neck tension (N) | |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
