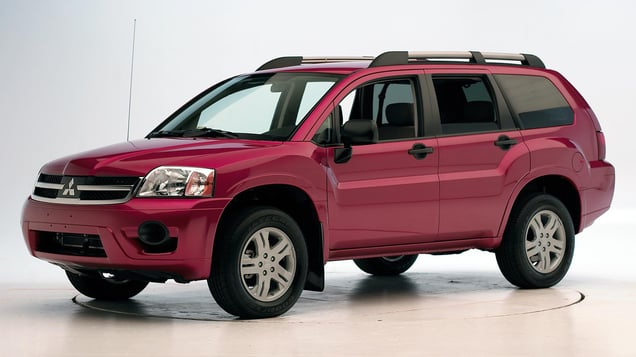

2011 Mitsubishi Endeavor
midsize SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2004-11 models
Tested vehicle: 2004 Mitsubishi Endeavor LS 4-door 4wd
The Mitsubishi Endeavor was introduced in the 2004 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Smeared greasepaint indicates where the dummy's head hit the B-pillar and roof rail during rebound. Head accelerations from these hits were low.
Forces on the lower right leg were high enough to indicate the possibility of injury.
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0321 |
| Footwell intrusion | |
| Footrest (cm) | 11 |
| Left (cm) | 17 |
| Center (cm) | 15 |
| Right (cm) | 11 |
| Brake pedal (cm) | 13 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0321 |
| Head | |
| HIC-15 | 186 |
| Peak gs at hard contact | 11 |
| Neck | |
| Tension (kN) | 2.0 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.40 |
| Chest maximum compression (mm) | 35 |
| Legs | |
| Femur force - left (kN) | 2.9 |
| Femur force - right (kN) | 1.9 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.32 |
| Maximum tibia index - right | 0.83 |
| Tibia axial force - left (kN) | 0.8 |
| Tibia axial force - right (kN) | 2.5 |
| Foot acceleration (g) | |
| Left | 91 |
| Right | 59 |
Side: original test
Rating applies to 2007-11 models
Tested vehicle: 2008 Mitsubishi Endeavor LS 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Mitsubishi Endeavor was introduced in the 2004 model year. Front and rear head curtain airbags were added beginning with 2007 models to the front seat-mounted torso airbags available in earlier models.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag (shown after dummy was removed from vehicle).
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0801 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -8.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0801 |
| Head HIC-15 | 207 |
| Neck | |
| Tension (kN) | 1.5 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 45 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 47 |
| Average deflection (mm) | 39 |
| Maximum deflection rate (m/s) | 4.94 |
| Maximum viscous criterion (m/s) | 0.69 |
| Pelvis | |
| Iliac force (kN) | 1.9 |
| Acetabulum force (kN) | 3.0 |
| Combined force (kN) | 4.7 |
| Left femur | |
| L-M force (kN) | 0.4 |
| L-M moment (Nm) | 47 |
| A-P moment (Nm) | -27 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0801 |
| Head HIC-15 | 189 |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 30 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 35 |
| Average deflection (mm) | 25 |
| Maximum deflection rate (m/s) | 3.44 |
| Maximum viscous criterion (m/s) | 0.52 |
| Pelvis | |
| Iliac force (kN) | 0.8 |
| Acetabulum force (kN) | 3.2 |
| Combined force (kN) | 3.5 |
| Left femur | |
| L-M force (kN) | 0.2 |
| L-M moment (Nm) | 116 |
| A-P moment (Nm) | 16 |
Roof strength
Rating applies to 2004-11 models
Tested vehicle: 2010 Mitsubishi Endeavor SE 4-door 4wd
| Overall evaluation | |
|---|---|
| Curb weight | 4,174 lbs |
| Peak force | 12,533 lbs |
| Strength-to-weight ratio | 3.00 |
Head restraints & seats
Seat type: All seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | All seats |
|---|---|
| Geometry | |
| Backset (mm) | 64 |
| Distance below top of head (mm) | 37 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 13.1 |
| Head contact time (ms) | 88 |
| Force rating | 2 |
| Neck forces | |
| Max neck shear force (N) | 72 |
| Max neck tension (N) | 701 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
