Small overlap front: driver-side
Rating applies to 2011-24 models

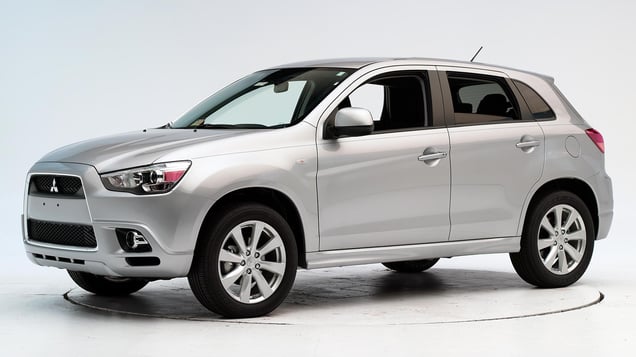

Tested vehicle: 2012 Mitsubishi Outlander Sport SE 4-door 4wd
The Mitsubishi Outlander Sport was introduced in the 2011 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head contacted the frontal airbag but slid off the left side, leaving the head vulnerable to contact with forward side structure. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects. The side torso airbag also deployed. |
Action shot taken during the driver-side small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
The dummy’s head contacted the frontal airbag but then slid off the left side. The side curtain airbag did not extend quite far enough forward toward the A-pillar to protect the head from contact with forward side structure.
Except for door hinge pillar deformation, intrusion into the driver's space was reasonably well controlled, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1227 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 15 |
| Footrest (cm) | 11 |
| Left toepan (cm) | 8 |
| Brake pedal (cm) | 6 |
| Parking brake (cm) | 0 |
| Rocker panel lateral average (cm) | 5 |
| Upper occupant compartment | |
| Steering column | 1 |
| Upper hinge pillar max (cm) | 13 |
| Upper dash (cm) | 12 |
| Lower instrument panel (cm) | 11 |
Driver injury measures
| Test ID | CEN1227 |
|---|---|
| Head | |
| HIC-15 | 84 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 7 |
| Maximum Nij | 0.20 |
| Chest maximum compression (mm) | 28 |
| Femur (kN) | |
| Left | 3.4 |
| Right | 0.9 |
| Knee displacement (mm) | |
| Left | 9 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 1 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.68 |
| Right | 0.36 |
| Tibia axial force (kN) | |
| Left | 1.9 |
| Right | 1.9 |
| Foot acceleration (g) | |
| Left | 61 |
| Right | 53 |
Small overlap front: passenger-side
Rating applies to 2011-19 models built before November 2018
Tested vehicle: 2018 Mitsubishi Outlander Sport 2.0 ES 4-door 4wd
The Mitsubishi Outlander Sport was introduced in the 2011 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the right side, allowing the head to move far enough forward to hit the upper trim panel on the door, which was partially dislodged during the crash. The side curtain airbag did not deploy, leaving the dummy's head vulnerable to contact with side structure and outside objects. |
|
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the passenger-side small overlap frontal crash test.
The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger's survival space was not maintained well.
The dummy's head slid to the right off the frontal airbag. The side curtain airbag (indicated) was exposed but did not deploy, uncommon for 2018 model year and later vehicles.
Despite intrusion of the door hinge pillar and dashboard, risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on passenger side
| Test ID | CEP1805 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 22 |
| Footrest (cm) | 15 |
| Right toepan (cm) | 8 |
| Center toepan (cm) | 3 |
| Rocker panel lateral average (cm) | 4 |
| Upper occupant compartment | |
| Center dash (cm) | 5 |
| Upper hinge pillar max (cm) | 18 |
| Upper dash (cm) | 6 |
| Right lower dash (cm) | 6 |
Passenger injury measures
| Test ID | CEP1805 |
|---|---|
| Head | |
| HIC-15 | 101 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.3 |
| Extension bending moment (Nm) | 9 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 15 |
| Femur (kN) | |
| Left | 1.8 |
| Right | 3.8 |
| Knee displacement (mm) | |
| Left | 3 |
| Right | 4 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 1 |
| Maximum tibia index | |
| Left | 0.24 |
| Right | 0.28 |
| Tibia axial force (kN) | |
| Left | 1.3 |
| Right | 1.3 |
| Foot acceleration (g) | |
| Left | 36 |
| Right | 85 |
Driver injury measures
| Test ID | CEP1805 |
|---|---|
| Head | |
| HIC-15 | 60 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.7 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.16 |
| Chest maximum compression (mm) | 31 |
| Femur (kN) | |
| Left | 1.0 |
| Right | 1.1 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.37 |
| Right | 0.26 |
| Tibia axial force (kN) | |
| Left | 0.9 |
| Right | 1.0 |
| Foot acceleration (g) | |
| Left | 29 |
| Right | 27 |
Moderate overlap front: original test
Rating applies to 2011-24 models
Tested vehicle: 2011 Mitsubishi Outlander Sport SE 4-door 4wd
The Mitsubishi Outlander Sport was introduced in the 2011 model year. The vehicle is a variant of the Outlander SUV with a shorter overall length and no availability of a V6 engine or third row seats. Frontal ratings are assigned by the Institute based on a test conducted by Mitsubishi.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1008 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 4 |
| Left (cm) | 10 |
| Center (cm) | 10 |
| Right (cm) | 7 |
| Brake pedal (cm) | 12 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | 0 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF1008 |
|---|---|
| Head | |
| HIC-15 | 207 |
| Peak gs at hard contact | 35 |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.23 |
| Chest maximum compression (mm) | 34 |
| Legs | |
| Femur force - left (kN) | 1.6 |
| Femur force - right (kN) | 2.5 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 2 |
| Maximum tibia index - left | 0.46 |
| Maximum tibia index - right | 0.78 |
| Tibia axial force - left (kN) | 1.7 |
| Tibia axial force - right (kN) | 4.5 |
| Foot acceleration (g) | |
| Left | 46 |
| Right | 95 |
Side: original test
Rating applies to 2011-24 models
Tested vehicle: 2011 Mitsubishi Outlander Sport SE 4-door 4wd with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Mitsubishi Outlander Sport was introduced in the 2011 model year. The vehicle is a variant of the Outlander SUV with a shorter overall length and no availability of a V6 engine or third row seats. Side ratings are assigned by the Institute based on a test conducted by Mitsubishi.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1009 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -7.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1009 |
|---|---|
| Head HIC-15 | 320 |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 49 |
| Lateral force (kN) | 2.0 |
| Torso | |
| Maximum deflection (mm) | 37 |
| Average deflection (mm) | 30 |
| Maximum deflection rate (m/s) | 4.98 |
| Maximum viscous criterion (m/s) | 0.40 |
| Pelvis | |
| Iliac force (kN) | 2.5 |
| Acetabulum force (kN) | 2.6 |
| Combined force (kN) | 4.9 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 139 |
| A-P moment (Nm) | 30 |
Passenger injury measures
| Test ID | VTS1009 |
|---|---|
| Head HIC-15 | 287 |
| Neck | |
| Tension (kN) | 0.3 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 36 |
| Lateral force (kN) | 1.7 |
| Torso | |
| Maximum deflection (mm) | 28 |
| Average deflection (mm) | 22 |
| Maximum deflection rate (m/s) | 3.54 |
| Maximum viscous criterion (m/s) | 0.38 |
| Pelvis | |
| Iliac force (kN) | 0.5 |
| Acetabulum force (kN) | 2.8 |
| Combined force (kN) | 2.8 |
| Left femur | |
| L-M force (kN) | 1.1 |
| L-M moment (Nm) | 90 |
| A-P moment (Nm) | 41 |
Roof strength
Rating applies to 2011-23 models
Tested vehicle: 2012 Mitsubishi Outlander Sport SE 4-door 4wd
| Overall evaluation | |
|---|---|
| Curb weight | 3,294 lbs |
| Peak force | 15,227 lbs |
| Strength-to-weight ratio | 4.62 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 36 |
| Distance below top of head (mm) | -10 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.3 |
| Head contact time (ms) | 65 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 50 |
| Max neck tension (N) | 515 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
