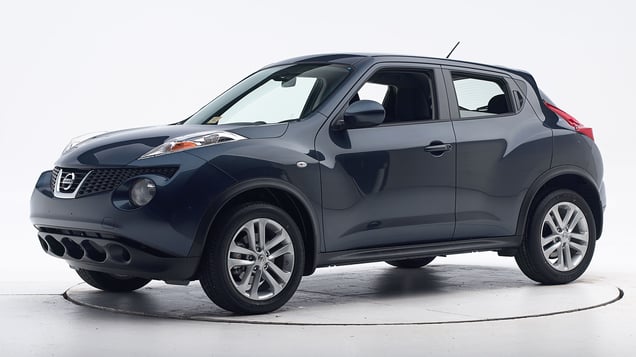

2017 Nissan Juke
small car / 4-door hatchback
Small overlap front: driver-side
Rating applies to 2011-17 models
Tested vehicle: 2014 Nissan Juke S 4-door
The Nissan Juke was introduced in the 2011 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
|
Driver restraints and dummy kinematics
The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 17 cm to the right, leaving the head vulnerable to contact with forward side structure and allowing little airbag cushioning for the chest. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects. The side torso airbag deployed. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
During the crash, the dummy's head and torso barely contacted the airbag before sliding off to the left as the steering column moved to the right. The seat belt allowed the dummy to move too far forward, as is evident from the gap between the seat back and the dummy's torso.
Door hinge pillar, door sill, and instrument panel intrusion was extensive and contributed to a high risk of injury to the left lower leg and a significant risk to the left knee.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1416 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 37 |
| Footrest (cm) | 25 |
| Left toepan (cm) | 15 |
| Brake pedal (cm) | 11 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 19 |
| Upper occupant compartment | |
| Steering column | 10 |
| Upper hinge pillar max (cm) | 24 |
| Upper dash (cm) | 26 |
| Lower instrument panel (cm) | 27 |
Driver injury measures
| Test ID | CEN1416 |
|---|---|
| Head | |
| HIC-15 | 74 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.8 |
| Extension bending moment (Nm) | 6 |
| Maximum Nij | 0.15 |
| Chest maximum compression (mm) | 24 |
| Femur (kN) | |
| Left | 4.9 |
| Right | 2.3 |
| Knee displacement (mm) | |
| Left | 17 |
| Right | 5 |
| Knee-thigh-hip injury risk (%) | |
| Left | 3 |
| Right | 0 |
| Maximum tibia index | |
| Left | 1.64 |
| Right | 0.57 |
| Tibia axial force (kN) | |
| Left | 1.7 |
| Right | 1.7 |
| Foot acceleration (g) | |
| Left | 90 |
| Right | 50 |
Moderate overlap front: original test
Rating applies to 2011-17 models
Tested vehicle: 2011 Nissan Juke S 4-door
The Nissan Juke was introduced in the 2011 model year and is derived from the Nissan Versa. Two moderate overlap frontal tests of the Juke were conducted, one by the Institute and the other by Nissan. Ratings are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the Institute's moderate overlap frontal crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well (Institute test car shown).
Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag and dislodged headliner during rebound in the Institute's test.
Intrusion into the driver's space was minimal in both tests, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1013 | CEF1103 |
|---|---|---|
| Footwell intrusion | ||
| Footrest (cm) | 9 | 7 |
| Left (cm) | 13 | 10 |
| Center (cm) | 12 | 11 |
| Right (cm) | 12 | 10 |
| Brake pedal (cm) | 13 | 8 |
| Instrument panel rearward movement | ||
| Left (cm) | 1 | 3 |
| Right (cm) | 2 | 2 |
| Steering column movement | ||
| Upward (cm) | 3 | 1 |
| Rearward (cm) | -3 | -1 |
| A-pillar rearward movement (cm) | 2 | 1 |
Driver injury measures
| Test ID | VTF1013 | CEF1103 |
|---|---|---|
| Head | ||
| HIC-15 | 179 | 397 |
| Peak gs at hard contact | no contact | no contact |
| Neck | ||
| Tension (kN) | 1.3 | 1.0 |
| Extension bending moment (Nm) | 22 | 10 |
| Maximum Nij | 0.24 | 0.19 |
| Chest maximum compression (mm) | 33 | 31 |
| Legs | ||
| Femur force - left (kN) | 3.9 | 3.3 |
| Femur force - right (kN) | 3.1 | 3.9 |
| Knee displacement - left (mm) | 0 | 5 |
| Knee displacement - right (mm) | 10 | 7 |
| Maximum tibia index - left | 0.45 | 0.34 |
| Maximum tibia index - right | 0.41 | 0.51 |
| Tibia axial force - left (kN) | 1.6 | 1.3 |
| Tibia axial force - right (kN) | 1.4 | 1.7 |
| Foot acceleration (g) | ||
| Left | 71 | 79 |
| Right | 77 | 70 |
Side: original test
Rating applies to 2017 models
Tested vehicle: 2017 Nissan Juke SV 4-door
The Nissan Juke was introduced in the 2011 model year and is derived from the Nissan Versa. Beginning with the 2017 model year, the side curtain airbags and door trim panels were modified.
Two tests of the Juke were conducted, one of a 2011 model by the Institute and the other a 2017 model by Nissan. These vehicles are rated separately, except that the structure ratings for both vehicles are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1624 | CES1105 |
|---|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -11.0 | -10.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | ||
Driver injury measures
| Test ID | VTS1624 |
|---|---|
| Head HIC-15 | 232 |
| Neck | |
| Tension (kN) | 1.4 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 32 |
| Lateral force (kN) | 1.7 |
| Torso | |
| Maximum deflection (mm) | 33 |
| Average deflection (mm) | 28 |
| Maximum deflection rate (m/s) | 5.20 |
| Maximum viscous criterion (m/s) | 0.53 |
| Pelvis | |
| Iliac force (kN) | 2.6 |
| Acetabulum force (kN) | 2.1 |
| Combined force (kN) | 4.7 |
| Left femur | |
| L-M force (kN) | 1.0 |
| L-M moment (Nm) | 23 |
| A-P moment (Nm) | 140 |
Passenger injury measures
| Test ID | VTS1624 |
|---|---|
| Head HIC-15 | 83 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 1.0 |
| Shoulder | |
| Lateral deflection (mm) | 31 |
| Lateral force (kN) | 1.7 |
| Torso | |
| Maximum deflection (mm) | 22 |
| Average deflection (mm) | 19 |
| Maximum deflection rate (m/s) | 3.51 |
| Maximum viscous criterion (m/s) | 0.30 |
| Pelvis | |
| Iliac force (kN) | 1.0 |
| Acetabulum force (kN) | 2.7 |
| Combined force (kN) | 3.4 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 21 |
| A-P moment (Nm) | 49 |
Roof strength
Rating applies to 2011-17 models
Tested vehicle: 2011 Nissan Juke S 4-door
| Overall evaluation | |
|---|---|
| Curb weight | 2,955 lbs |
| Peak force | 13,191 lbs |
| Strength-to-weight ratio | 4.46 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 25 |
| Distance below top of head (mm) | 44 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.1 |
| Head contact time (ms) | 57 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 419 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Child seat anchors
Rating applies to 2016-17 models
| Overall evaluation | |
| Vehicle trim | S |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Overall evaluation | |
| Vehicle trim | S |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 21 |
| Clearance angle (degrees) | 71 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 12 |
| Clearance angle (degrees) | 76 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| No lower latch for this seat position | |
| Lower anchor B | |
| No lower latch for this seat position | |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 16 |
| Clearance angle (degrees) | 73 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 17 |
| Clearance angle (degrees) | 71 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
