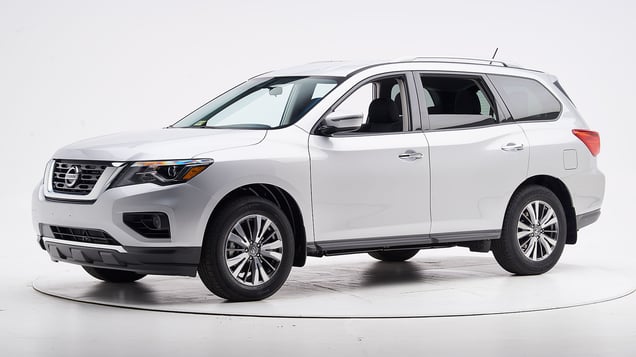

2020 Nissan Pathfinder

Rating overview
Evaluation criteria	Rating
Small overlap front: driver-side
Small overlap front: passenger-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Evaluation criteria	Rating
Headlights (varies by trim/option)
Front crash prevention: vehicle-to-vehicle
Standard system	Superior
Front crash prevention: pedestrian (day)	Not available

Evaluation criteria	Rating
LATCH ease of use

Small overlap front: driver-side

Rating applies to 2015-20 models

Tested vehicle: 2015 Nissan Pathfinder SV 4-door 4wd

The Nissan Pathfinder was redesigned for the 2013 model year, and the Infiniti JX35, a luxury version of the Pathfinder, was introduced in the 2013 model year. Beginning with 2014 models, the JX35 was renamed the QX60. Beginning with 2015 models of both the Pathfinder and QX60, the front-end structure was modified to improve occupant protection in small overlap frontal crashes.

Evaluation criteria	Rating

Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the driver-side small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEN1447
Lower occupant compartment
Lower hinge pillar max (cm)	14
Footrest (cm)	9
Left toepan (cm)	4
Brake pedal (cm)	5
Parking brake (cm)	12
Rocker panel lateral average (cm)	3
Upper occupant compartment
Steering column	3
Upper hinge pillar max (cm)	7
Upper dash (cm)	7
Lower instrument panel (cm)	10

Evaluation criteria	Measurement
Test ID	CEN1447
Head
HIC-15	39
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	7
Maximum Nij	0.16
Chest maximum compression (mm)	15
Femur (kN)
Left	2.3
Right	0.1
Knee displacement (mm)
Left	5
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.52
Right	0.37
Tibia axial force (kN)
Left	0.8
Right	0.1
Foot acceleration (g)
Left	41
Right	27

About the small overlap front test

Small overlap front: passenger-side

Rating applies to 2015-20 models

Tested vehicle: 2018 Nissan Pathfinder S 4-door 4wd

The Nissan Pathfinder was redesigned for the 2013 model year, and the Infiniti JX35, a luxury version of the Pathfinder, was introduced in the 2013 model year. Beginning with 2014 models, the JX35 was renamed the QX60. Beginning with 2015 models of both the Pathfinder and QX60, the front-end structure was modified to improve occupant protection in small overlap frontal crashes.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Passenger injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Passenger restraints and dummy kinematics
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the passenger-side small overlap frontal crash test.

The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger’s survival space was not maintained well.

The frontal and side curtain airbags worked well together to keep the passenger dummy’s head from coming close to any stiff structure or outside objects that could cause injury.

Despite intrusion of the door hinge pillar and dashboard, risk of injuries to the dummy's legs and feet was low.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEP1812
Lower occupant compartment
Lower hinge pillar max (cm)	25
Footrest (cm)	18
Right toepan (cm)	12
Center toepan (cm)	4
Rocker panel lateral average (cm)	2
Upper occupant compartment
Center dash (cm)	10
Upper hinge pillar max (cm)	21
Upper dash (cm)	15
Right lower dash (cm)	13

Evaluation criteria	Measurement
Test ID	CEP1812
Head
HIC-15	33
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.9
Extension bending moment (Nm)	13
Maximum Nij	0.18
Chest maximum compression (mm)	12
Femur (kN)
Left	1.7
Right	5.0
Knee displacement (mm)
Left	6
Right	6
Knee-thigh-hip injury risk (%)
Left	0
Right	3
Maximum tibia index
Left	0.55
Right	0.60
Tibia axial force (kN)
Left	2.3
Right	2.1
Foot acceleration (g)
Left	53
Right	38

Evaluation criteria	Measurement
Test ID	CEP1812
Head
HIC-15	34
Peak gs at hard contact	no contact
Neck
Tension (kN)	0.8
Extension bending moment (Nm)	7
Maximum Nij	0.16
Chest maximum compression (mm)	22
Femur (kN)
Left	0.0
Right	0.0
Knee displacement (mm)
Left	0
Right	0
Knee-thigh-hip injury risk (%)
Left	0
Right	0
Maximum tibia index
Left	0.16
Right	0.14
Tibia axial force (kN)
Left	0.2
Right	0.2
Foot acceleration (g)
Left	21
Right	27

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2013-20 models

Tested vehicle: 2014 Nissan Pathfinder Platinum 4-door 4wd

The Nissan Pathfinder was redesigned for the 2013 model year, and the Infiniti JX35, a luxury version of the Pathfinder, was introduced in the 2013 model year. Beginning with 2014 models, the JX35 was renamed the QX60.

Moderate overlap frontal ratings are assigned by the Institute based on two tests conducted by Nissan. The first test was conducted on a 2013 model Pathfinder and the second test on a 2014 model Pathfinder. Ratings apply to all Pathfinders beginning with the 2013 model year, the JX for the 2013 model year, and all QX models beginning with 2014.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	VTF1211	VTF1314
Footwell intrusion
Footrest (cm)	6	7
Left (cm)	12	12
Center (cm)	9	9
Right (cm)	7	9
Brake pedal (cm)	16	2
Instrument panel rearward movement
Left (cm)	3	2
Right (cm)	3	4
Steering column movement
Upward (cm)	0	0
Rearward (cm)	2	3
A-pillar rearward movement (cm)	1	1

Evaluation criteria	Measurement
Test ID	VTF1211	VTF1314
Head
HIC-15	293	124
Peak gs at hard contact	22	no contact
Neck
Tension (kN)	1.5	1.4
Extension bending moment (Nm)	33	14
Maximum Nij	0.30	0.24
Chest maximum compression (mm)	41	35
Legs
Femur force - left (kN)	3.0	0.2
Femur force - right (kN)	0.6	0.8
Knee displacement - left (mm)	3	2
Knee displacement - right (mm)	3	2
Maximum tibia index - left	0.50	0.48
Maximum tibia index - right	0.40	0.53
Tibia axial force - left (kN)	2.5	1.9
Tibia axial force - right (kN)	1.4	1.9
Foot acceleration (g)
Left	122	104
Right	50	68

About the original moderate overlap front test

Side: original test

Rating applies to 2014-20 models

Tested vehicle: 2014 Nissan Pathfinder SV 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags

The Nissan Pathfinder was redesigned for the 2013 model year, and the Infiniti JX35, a luxury version of the Pathfinder, was introduced in the 2013 model year. Beginning with 2014 models, the JX35 was renamed the QX60, and both the Pathfinder and QX60 received side curtain airbag and rear door structural modifications to improve occupant protection in side impact crashes. Side ratings are assigned by the Institute based on a test conducted by Nissan.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

Technical measurements for this test

Test ID	VTS1309
B-pillar to longitudinal centerline of driver's seat (cm)	-10.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	VTS1309
Head HIC-15	278
Neck
Tension (kN)	1.4
Compression (kN)	0.4
Shoulder
Lateral deflection (mm)	30
Lateral force (kN)	1.6
Torso
Maximum deflection (mm)	32
Average deflection (mm)	26
Maximum deflection rate (m/s)	2.90
Maximum viscous criterion (m/s)	0.34
Pelvis
Iliac force (kN)	2.5
Acetabulum force (kN)	2.2
Combined force (kN)	4.5
Left femur
L-M force (kN)	1.1
L-M moment (Nm)	135
A-P moment (Nm)	24

Evaluation criteria	Measurement
Test ID	VTS1309
Head HIC-15	63
Neck
Tension (kN)	0.2
Compression (kN)	0.2
Shoulder
Lateral deflection (mm)	23
Lateral force (kN)	1.3
Torso
Maximum deflection (mm)	23
Average deflection (mm)	19
Maximum deflection rate (m/s)	2.80
Maximum viscous criterion (m/s)	0.25
Pelvis
Iliac force (kN)	0.9
Acetabulum force (kN)	0.7
Combined force (kN)	1.4
Left femur
L-M force (kN)	0.3
L-M moment (Nm)	66
A-P moment (Nm)	48

About the original side crash test

Roof strength

Rating applies to 2015-20 models

Tested vehicle: 2015 Nissan Pathfinder SV 4-door 4wd

Overall evaluation
Curb weight	4,431 lbs
Peak force	20,719 lbs
Strength-to-weight ratio	4.68

About the roof strength test

Head restraints & seats

Seat type: Power leatherette seat

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Power leatherette seat
Geometry
Backset (mm)	39
Distance below top of head (mm)	14
Seat design parameters
Pass/fail	Pass
Max T1 acceleration (g)	11.2
Head contact time (ms)	70
Force rating	1
Neck forces
Max neck shear force (N)	0
Max neck tension (N)	504

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

SL trim
Platinum trim

Evaluation criteria	Rating
Low-beam headlight type	LED projector
High-beam headlight type	Halogen projector
Curve-adaptive?	No
High-beam assist?	No
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right curve, fair on the sharp right and sharp left curves, and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right curve, fair on the gradual left and sharp right curves, and inadequate on the sharp left curve.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	SL trim Platinum trim
Low-beam headlight type	LED projector
High-beam headlight type	Halogen projector
Curve-adaptive?	No
High-beam assist?	No
Overall rating Applies to 2019-20 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	99.2 m	None
Straightaway left edge	50.5 m	None
250m radius right curve, right edge	65.7 m	None
250m radius left curve, right edge	49.6 m	None
150m radius right curve, right edge	51.9 m	None
150m radius left curve, left edge	48.7 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	165.1 m
Straightaway left edge	135.9 m
250m radius right curve, right edge	75.1 m
250m radius left curve, left edge	70.4 m
150m radius right curve, right edge	56.5 m
150m radius left curve, left edge	55.0 m

Trim level(s)

S trim
SV trim

Evaluation criteria	Rating
Low-beam headlight type	Halogen projector
High-beam headlight type	Halogen reflector
Curve-adaptive?	No
High-beam assist?	No
Overall rating
Distance at which headlights provide at least 5 lux illumination:

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was fair on the gradual right curve and inadequate on the sharp right and both left curves.

Technical measurements for this test

Evaluation criteria	Measurement
Trim level(s)	S trim SV trim
Low-beam headlight type	Halogen projector
High-beam headlight type	Halogen reflector
Curve-adaptive?	No
High-beam assist?	No
Overall rating Applies to 2017-20 models

LOW BEAMS	Average minimum useful illumination distance (5 lux)	Amount glare exceeded threshold
Straightaway right edge	98.8 m	78.1%
Straightaway left edge	46.4 m	78.1%
250m radius right curve, right edge	55.6 m	122.5%
250m radius left curve, left edge	42.2 m	None
150m radius right curve, right edge	43.7 m	216.1%
150m radius left curve, left edge	36.5 m	None

HIGH BEAMS	Average minimum useful illumination distance (5 lux)
Straightaway right edge	156.7 m
Straightaway left edge	124.1 m
250m radius right curve, right edge	65.1 m
250m radius left curve, left edge	61.8 m
150m radius right curve, right edge	49.0 m
150m radius left curve, left edge	48.4 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

Standard Automatic Emergency Braking

Overall evaluation

Applies to 2020 models

Superior

This system meets the requirements for forward collision warning.
In the 12 mph test, this vehicle avoided a collision.
In the 25 mph test, impact speed was reduced by 14 mph.

About the original front crash prevention test

Child seat anchors

Rating applies to 2018-20 models

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	S
Seat type	cloth

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 2 additional seating positions with a tether anchor only.

Evaluation criteria	Rating
Overall evaluation
Vehicle trim	S
Seat type	cloth

Rating icon	Rating
G	Good
A	Acceptable
M	Marginal
P	Poor
	Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol	Tether anchor
lower anchor symbol	Lower anchors
shared lower achors symbol	Lower anchor(s) can be borrowed from adjacent positions(s)
	No hardware available

Details by seating position

Position	Rating
1
1	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	not too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
2
2	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	none available
3
3	Tether anchor
	easy-to-find location
	no other hardware could be confused for anchor
	Lower anchors
	too deep in seat
	not too much force needed to attach
	easy to maneuver around anchors
4
4	Tether anchor
	easy-to-find location
	other hardware could be confused for anchor
	Lower anchors
	none available

Technical measurements for this test

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	16
Clearance angle (degrees)	80
Lower anchor B
Open access rated	No
Depth (cm)	2-4
Force (lbs)	16
Clearance angle (degrees)	71
Tether anchor
Location	Middle seatback
Confusing hardware present	No
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	No
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
Open access rated	No
Depth (cm)	0-2
Force (lbs)	20
Clearance angle (degrees)	84
Lower anchor B
Open access rated	No
Depth (cm)	0-2
Force (lbs)	13
Clearance angle (degrees)	88
Tether anchor
Location	Middle seatback
Confusing hardware present	No
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location	Middle seatback
Confusing hardware present	Yes
Has contrasting label within 3 inches of tether anchor	No
Tether anchors can be accessed while seatback is properly positioned for use of LATCH	Not measured

About the child seat anchor evaluation

2020 Nissan Pathfinder

midsize SUV / 4-door SUV

Crashworthiness

Crash avoidance & mitigation

Seat belts & child restraints

Other available safety features

Small overlap front: driver-side

Small overlap front: passenger-side

Moderate overlap front: original test

Side: original test

Roof strength

Head restraints & seats

Headlights

Trim level(s)

Trim level(s)

Front crash prevention: vehicle-to-vehicle

System details

Overall evaluation

Child seat anchors
