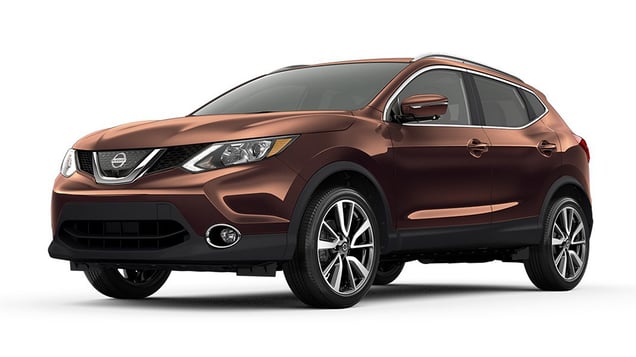

2017 Nissan Rogue Sport
small SUV / 4-door SUV
Small overlap front: driver-side
Rating applies to 2017-19 models
Tested vehicle: 2017 Nissan Rogue Sport S 4-door 4wd
The Nissan Rogue Sport was introduced in the 2017 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Nissan.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTN1705 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 12 |
| Footrest (cm) | 5 |
| Left toepan (cm) | 1 |
| Brake pedal (cm) | 4 |
| Parking brake (cm) | 13 |
| Rocker panel lateral average (cm) | 3 |
| Upper occupant compartment | |
| Steering column | 3 |
| Upper hinge pillar max (cm) | 9 |
| Upper dash (cm) | 8 |
| Lower instrument panel (cm) | 9 |
Driver injury measures
| Test ID | VTN1705 |
|---|---|
| Head | |
| HIC-15 | 110 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.2 |
| Extension bending moment (Nm) | 20 |
| Maximum Nij | 0.26 |
| Chest maximum compression (mm) | 26 |
| Femur (kN) | |
| Left | 2.4 |
| Right | 0.1 |
| Knee displacement (mm) | |
| Left | 7 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.51 |
| Right | 0.43 |
| Tibia axial force (kN) | |
| Left | 1.5 |
| Right | 0.3 |
| Foot acceleration (g) | |
| Left | 48 |
| Right | 40 |
Moderate overlap front: original test
Rating applies to 2017-19 models
Tested vehicle: 2017 Nissan Rogue Sport S 4-door 4wd
The Nissan Rogue Sport was introduced in the 2017 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Nissan.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1706 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 3 |
| Left (cm) | 7 |
| Center (cm) | 8 |
| Right (cm) | 6 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 2 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -3 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Test ID | VTF1706 |
|---|---|
| Head | |
| HIC-15 | 216 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.3 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.25 |
| Chest maximum compression (mm) | 27 |
| Legs | |
| Femur force - left (kN) | 0.1 |
| Femur force - right (kN) | 0.2 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.44 |
| Maximum tibia index - right | 0.69 |
| Tibia axial force - left (kN) | 1.3 |
| Tibia axial force - right (kN) | 1.7 |
| Foot acceleration (g) | |
| Left | 96 |
| Right | 78 |
Side: original test
Rating applies to 2017-19 models
Tested vehicle: 2017 Nissan Rogue Sport S 4-door 4wd
The Nissan Rogue Sport was introduced in the 2017 model year. Side ratings are assigned by the Institute based on a test of a 2017 Rogue Sport conducted by Nissan.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1704 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -13.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1704 |
|---|---|
| Head HIC-15 | 313 |
| Neck | |
| Tension (kN) | 1.7 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 16 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 30 |
| Average deflection (mm) | 27 |
| Maximum deflection rate (m/s) | 3.96 |
| Maximum viscous criterion (m/s) | 0.52 |
| Pelvis | |
| Iliac force (kN) | 1.8 |
| Acetabulum force (kN) | 1.8 |
| Combined force (kN) | 3.4 |
| Left femur | |
| L-M force (kN) | 0.9 |
| L-M moment (Nm) | 59 |
| A-P moment (Nm) | -143 |
Passenger injury measures
| Test ID | VTS1704 |
|---|---|
| Head HIC-15 | 146 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 34 |
| Lateral force (kN) | 1.9 |
| Torso | |
| Maximum deflection (mm) | 23 |
| Average deflection (mm) | 17 |
| Maximum deflection rate (m/s) | 2.63 |
| Maximum viscous criterion (m/s) | 0.19 |
| Pelvis | |
| Iliac force (kN) | 0.8 |
| Acetabulum force (kN) | 1.5 |
| Combined force (kN) | 1.9 |
| Left femur | |
| L-M force (kN) | 1.2 |
| L-M moment (Nm) | 37 |
| A-P moment (Nm) | -158 |
