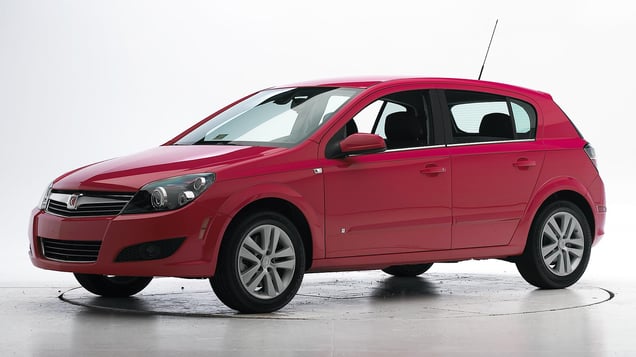

2008 Saturn Astra

small car / 4-door hatchback

Crashworthiness

Rating overview
Evaluation criteria	Rating
Moderate overlap front: original test
Side: original test
Head restraints & seats

Key

G
Good
A
Acceptable
M
Marginal
P
Poor

Superior
Advanced
Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2008 models

Tested vehicle: 2008 Saturn Astra XR 4-door

The Saturn Astra was introduced in the 2008 model year.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics Dummy movement was reasonably well controlled. During rebound, the dummy's head leaned partway out the open side window and hit the top and rear portions of the window frame.

Action shot taken during the frontal offset crash test.

The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.

Action shot taken during rebound shows the dummy's head leaning partway out the open side window.

Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.

Technical measurements for this test

Evaluation criteria	Measurement
Test ID	CEF0819
Footwell intrusion
Footrest (cm)	5
Left (cm)	8
Center (cm)	8
Right (cm)	8
Brake pedal (cm)	5
Instrument panel rearward movement
Left (cm)	0
Right (cm)	0
Steering column movement
Upward (cm)	3
Rearward (cm)	-4
A-pillar rearward movement (cm)	1

Evaluation criteria	Measurement
Test ID	CEF0819
Head
HIC-15	265
Peak gs at hard contact	24
Neck
Tension (kN)	1.0
Extension bending moment (Nm)	24
Maximum Nij	0.22
Chest maximum compression (mm)	32
Legs
Femur force - left (kN)	0.5
Femur force - right (kN)	1.5
Knee displacement - left (mm)	0
Knee displacement - right (mm)	0
Maximum tibia index - left	0.44
Maximum tibia index - right	0.47
Tibia axial force - left (kN)	1.9
Tibia axial force - right (kN)	2.6
Foot acceleration (g)
Left	79
Right	125

About the original moderate overlap front test

Side: original test

Rating applies to 2008 models

Tested vehicle: 2008 Saturn Astra XR 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags

The Saturn Astra was introduced in the 2008 model year.

Evaluation criteria	Rating
Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection

View of the vehicle and barrier just after the crash test.

View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.

Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.

Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.

Technical measurements for this test

Test ID	CES0841
B-pillar to longitudinal centerline of driver's seat (cm)	-6.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Evaluation criteria	Measurement
Test ID	CES0841
Head HIC-15	329
Neck
Tension (kN)	1.5
Compression (kN)	0.1
Shoulder
Lateral deflection (mm)	40
Lateral force (kN)	1.5
Torso
Maximum deflection (mm)	44
Average deflection (mm)	38
Maximum deflection rate (m/s)	5.11
Maximum viscous criterion (m/s)	1.16
Pelvis
Iliac force (kN)	2.0
Acetabulum force (kN)	3.1
Combined force (kN)	4.9
Left femur
L-M force (kN)	1.0
L-M moment (Nm)	79
A-P moment (Nm)	18

Evaluation criteria	Measurement
Test ID	CES0841
Head HIC-15	238
Neck
Tension (kN)	0.8
Compression (kN)	0.2
Shoulder
Lateral deflection (mm)	61
Lateral force (kN)	1.7
Torso
Maximum deflection (mm)	54
Average deflection (mm)	46
Maximum deflection rate (m/s)	4.73
Maximum viscous criterion (m/s)	1.25
Pelvis
Iliac force (kN)	0.6
Acetabulum force (kN)	2.9
Combined force (kN)	3.2
Left femur
L-M force (kN)	1.8
L-M moment (Nm)	277
A-P moment (Nm)	-84

About the original side crash test

Head restraints & seats

Seat type: Manual cloth seats AHR

Overall evaluation
Dynamic rating
Seat/head restraint geometry

Technical measurements for this test

Seat type	Manual cloth seats AHR
Geometry
Backset (mm)	50
Distance below top of head (mm)	49
Seat design parameters
Pass/fail	Fail
Max T1 acceleration (g)	12.4
Head contact time (ms)	74
Force rating	1
Neck forces
Max neck shear force (N)	15
Max neck tension (N)	521

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
