2016 Scion iM
small car / 4-door hatchback
Moderate overlap front: original test
Rating applies to 2016 models

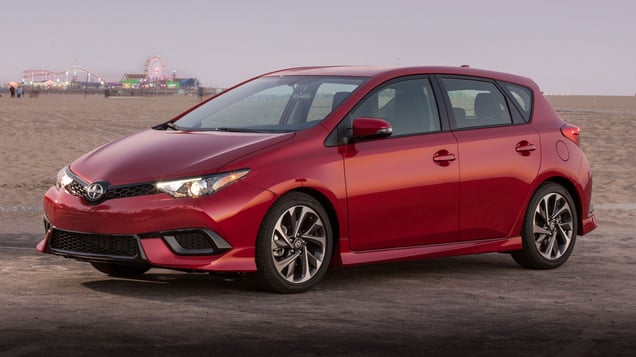

Tested vehicle: 2016 Scion iM 4-door hatchback
The Scion iM was introduced in the 2016 model year and shares the basic platform of the Toyota Corolla. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Toyota.
The Scion iM was renamed the Toyota Corolla iM beginning with the 2017 model year as Toyota discontinued the Scion nameplate.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF1517 |
| Footwell intrusion | |
| Footrest (cm) | 1 |
| Left (cm) | 1 |
| Center (cm) | 4 |
| Right (cm) | 3 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | -2 |
| Right (cm) | -2 |
| Steering column movement | |
| Upward (cm) | -3 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTF1517 |
| Head | |
| HIC-15 | 190 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.3 |
| Extension bending moment (Nm) | 29 |
| Maximum Nij | 0.29 |
| Chest maximum compression (mm) | 30 |
| Legs | |
| Femur force - left (kN) | 1.0 |
| Femur force - right (kN) | 1.5 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.40 |
| Maximum tibia index - right | 0.40 |
| Tibia axial force - left (kN) | 2.5 |
| Tibia axial force - right (kN) | 2.7 |
| Foot acceleration (g) | |
| Left | 67 |
| Right | 47 |
Side: original test
Rating applies to 2016 models
Tested vehicle: 2016 Scion iM 4-door hatchback
The Scion iM was introduced in the 2016 model year and shares the basic platform of the Toyota Corolla. Side ratings are assigned by the Institute based on a test conducted by Toyota.
The Scion iM was renamed the Toyota Corolla iM beginning with the 2017 model year as Toyota discontinued the Scion nameplate.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1516 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTS1516 |
| Head HIC-15 | 283 |
| Neck | |
| Tension (kN) | 0.6 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 35 |
| Lateral force (kN) | 1.5 |
| Torso | |
| Maximum deflection (mm) | 24 |
| Average deflection (mm) | 21 |
| Maximum deflection rate (m/s) | 5.14 |
| Maximum viscous criterion (m/s) | 0.15 |
| Pelvis | |
| Iliac force (kN) | 1.6 |
| Acetabulum force (kN) | 1.6 |
| Combined force (kN) | 3.1 |
| Left femur | |
| L-M force (kN) | 1.0 |
| L-M moment (Nm) | 158 |
| A-P moment (Nm) | 41 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | VTS1516 |
| Head HIC-15 | 126 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.8 |
| Shoulder | |
| Lateral deflection (mm) | 42 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 33 |
| Average deflection (mm) | 24 |
| Maximum deflection rate (m/s) | 4.32 |
| Maximum viscous criterion (m/s) | 0.36 |
| Pelvis | |
| Iliac force (kN) | 0.8 |
| Acetabulum force (kN) | 1.6 |
| Combined force (kN) | 2.4 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 39 |
| A-P moment (Nm) | -31 |
