Small overlap front: driver-side
Rating applies to 2010-13 models

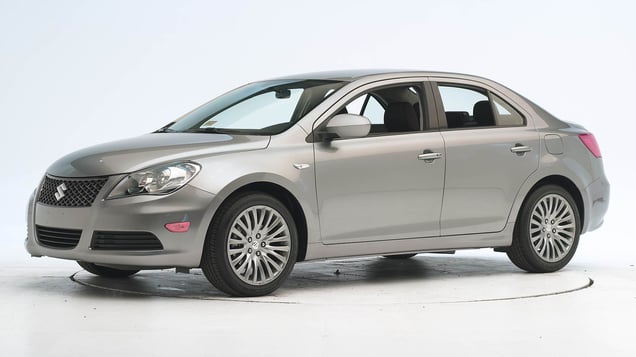

Tested vehicle: 2012 Suzuki Kizashi SE 4-door
The Suzuki Kizashi was introduced in the 2010 model year and discontinued after the 2013 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the left side and leaving the head vulnerable to contact with forward side structure. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects. The side torso airbag also deployed. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
The dummy’s head contacted the frontal airbag but then slid off the left side. The side curtain airbag did not extend far enough forward toward the A-pillar to protect the head from contact with forward side structure.
Intrusion into the driver's space was minimal, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1221 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 8 |
| Footrest (cm) | 9 |
| Left toepan (cm) | 2 |
| Brake pedal (cm) | 2 |
| Parking brake (cm) | 0 |
| Rocker panel lateral average (cm) | 3 |
| Upper occupant compartment | |
| Steering column | 0 |
| Upper hinge pillar max (cm) | 5 |
| Upper dash (cm) | 6 |
| Lower instrument panel (cm) | 6 |
Driver injury measures
| Test ID | CEN1221 |
|---|---|
| Head | |
| HIC-15 | 104 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.31 |
| Chest maximum compression (mm) | 26 |
| Femur (kN) | |
| Left | 0.2 |
| Right | 0.1 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.42 |
| Right | 0.40 |
| Tibia axial force (kN) | |
| Left | 1.3 |
| Right | 0.9 |
| Foot acceleration (g) | |
| Left | 58 |
| Right | 44 |
Moderate overlap front: original test
Rating applies to 2010-13 models
Tested vehicle: 2010 Suzuki Kizashi SE 4-door
The Suzuki Kizashi was introduced in the 2010 model year and discontinued after the 2013 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
A high head acceleration occurred when the dummy's head hit the steering wheel through the airbag.
Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF1009 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 7 |
| Center (cm) | 6 |
| Right (cm) | 5 |
| Brake pedal (cm) | 3 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | -3 |
| Rearward (cm) | 0 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | CEF1009 |
|---|---|
| Head | |
| HIC-15 | 344 |
| Peak gs at hard contact | 72 |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 29 |
| Maximum Nij | 0.23 |
| Chest maximum compression (mm) | 33 |
| Legs | |
| Femur force - left (kN) | 0.3 |
| Femur force - right (kN) | 0.3 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.40 |
| Maximum tibia index - right | 0.32 |
| Tibia axial force - left (kN) | 1.7 |
| Tibia axial force - right (kN) | 1.9 |
| Foot acceleration (g) | |
| Left | 70 |
| Right | 70 |
Side: original test
Rating applies to 2010-13 models
Tested vehicle: 2010 Suzuki Kizashi SE 4-door with standard front and rear head curtain airbags and standard front and rear seat-mounted torso airbags
The Suzuki Kizashi was introduced in the 2010 model year and discontinued after the 2013 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES1015 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -14.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES1015 |
|---|---|
| Head HIC-15 | 256 |
| Neck | |
| Tension (kN) | 1.0 |
| Compression (kN) | 0.4 |
| Shoulder | |
| Lateral deflection (mm) | 24 |
| Lateral force (kN) | 1.1 |
| Torso | |
| Maximum deflection (mm) | 33 |
| Average deflection (mm) | 31 |
| Maximum deflection rate (m/s) | 3.31 |
| Maximum viscous criterion (m/s) | 0.45 |
| Pelvis | |
| Iliac force (kN) | 2.0 |
| Acetabulum force (kN) | 1.9 |
| Combined force (kN) | 3.8 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 140 |
| A-P moment (Nm) | 92 |
Passenger injury measures
| Test ID | CES1015 |
|---|---|
| Head HIC-15 | 213 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 1.0 |
| Shoulder | |
| Lateral deflection (mm) | 15 |
| Lateral force (kN) | 0.9 |
| Torso | |
| Maximum deflection (mm) | 38 |
| Average deflection (mm) | 25 |
| Maximum deflection rate (m/s) | 3.73 |
| Maximum viscous criterion (m/s) | 0.53 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 2.7 |
| Combined force (kN) | 2.9 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 79 |
| A-P moment (Nm) | -34 |
Roof strength
Rating applies to 2010-13 models
Tested vehicle: 2010 Suzuki Kizashi SE 4-door
| Overall evaluation | |
|---|---|
| Curb weight | 3,318 lbs |
| Peak force | 13,023 lbs |
| Strength-to-weight ratio | 3.92 |
Head restraints & seats
Seat type: Power cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 31 |
| Distance below top of head (mm) | 36 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.9 |
| Head contact time (ms) | 62 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 608 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
