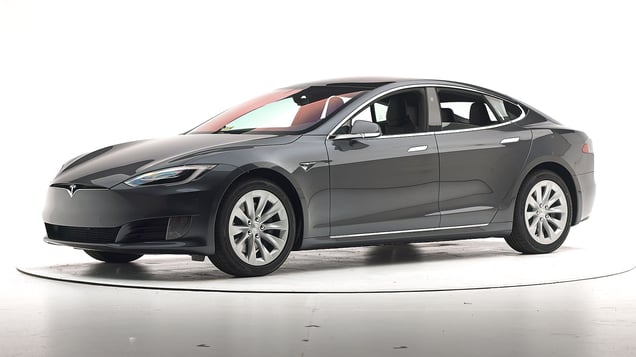

2020 Tesla Model S
large luxury car / 4-door hatchback
Fully electric
Headlights
Trim level(s)
- All trims
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.
The low beams created some glare.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was inadequate in all 4 tests.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
Technical measurements for this test
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating Applies to 2017-21 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 86.3 m | 41.3% |
| Straightaway left edge | 48.8 m | 41.3% |
| 250m radius right curve, right edge | 50.9 m | None |
| 250m radius left curve, left edge | 45.5 m | None |
| 150m radius right curve, right edge | 41.7 m | None |
| 150m radius left curve, left edge | 42.7 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 151.6 m |
| Straightaway left edge | 145.5 m |
| 250m radius right curve, right edge | 60.6 m |
| 250m radius left curve, left edge | 62.8 m |
| 150m radius right curve, right edge | 49.5 m |
| 150m radius left curve, left edge | 51.3 m |
