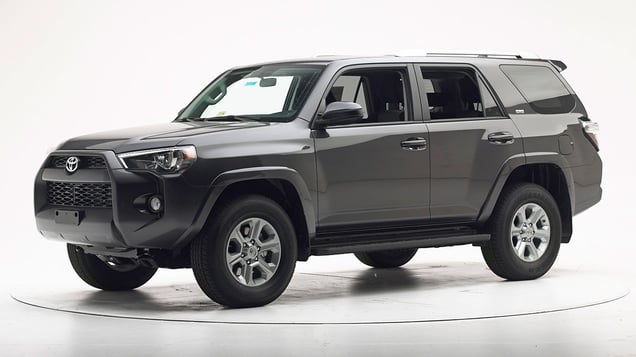

2020 Toyota 4Runner
midsize SUV / 4-door SUV
Small overlap front: driver-side
Rating applies to 2014-24 models
Tested vehicle: 2014 Toyota 4Runner SR5 4-door 4wd
The Toyota 4Runner was redesigned for the 2010 model year. Beginning with 2014 models, the side curtain airbags were lengthened and reprogrammed to deploy in frontal crashes (in addition to side and rollover crashes) to improve occupant protection.
| Evaluation criteria | Rating |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics | |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury, even though the steering column moved slightly too far to the right.
Door hinge pillar and instrument panel intrusion was extensive and contributed to a moderate risk of injuries to both lower legs.
Technical measurements for this test
Moderate overlap front: original test
Rating applies to 2010-24 models
Tested vehicle: 2010 Toyota 4Runner SR5 4-door 4wd
The Toyota 4Runner was redesigned for the 2010 model year. Frontal ratings are assigned by the Institute based on a test conducted by Toyota.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Technical measurements for this test
Side: original test
Rating applies to 2014-24 models
Tested vehicle: 2014 Toyota 4Runner SR5 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
The Toyota 4Runner was redesigned for the 2010 model year. Beginning with 2014 models, design changes were made to the side curtain airbags. Side ratings are assigned by the Institute based on a test conducted by Toyota. However, because there were no side structural changes, the structure rating of the current model is based on both this test and an earlier test conducted by Toyota of a 2010 model.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Technical measurements for this test
Roof strength
Rating applies to 2013-23 models built after October 2012
Tested vehicle: 2013 Toyota 4Runner SR5 4-door 4wd
| Overall evaluation | |
|---|---|
| Curb weight | 4,585 lbs |
| Peak force | 18,866 lbs |
| Strength-to-weight ratio | 4.11 |
Head restraints & seats
Seat type: Manual cloth seats AHR
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Trim level(s)
- SR5 trim
- SR5 Platinum trim
- TRD Off-Road trim
- TRD Off-Road Premium trim
- Limited trim
- TRD Pro trim
| Evaluation criteria | Rating |
|---|---|
| Low-beam headlight type | Halogen projector |
| High-beam headlight type | Halogen reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was inadequate in all 4 tests.
The low beams created some glare.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the gradual left and gradual right curves and inadequate on the sharp left and sharp right curves.
Technical measurements for this test
Child seat anchors
Rating applies to 2017-24 models
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Vehicle trim | SR5 |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Vehicle trim | SR5 |
| Seat type | cloth |
| Rating icon | Rating |
|---|---|
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| Position | Rating |
|---|---|
| 1 | |
| Tether anchor | |
| easy-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| easy-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| too much force needed to attach | |
| easy to maneuver around anchors |
Technical measurements for this test
