2008 Toyota Camry Solara
midsize convertible / 2-door convertible
Moderate overlap front: original test
Rating applies to 2004-08 models

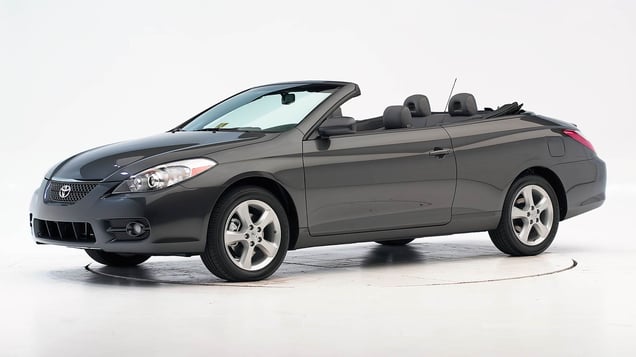

Tested vehicle: 2007 Toyota Camry Solara SLE convertible
The Toyota Camry Solara was redesigned for the 2004 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
Smeared greasepaint indicates where the dummy's head hit the A-pillar. Head acceleration from this hit was low.
Forces on the lower right leg were just high enough to indicate the possibility of injuries.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0706 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 9 |
| Center (cm) | 8 |
| Right (cm) | 7 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 3 |
| Right (cm) | 3 |
| Steering column movement | |
| Upward (cm) | -2 |
| Rearward (cm) | 1 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | CEF0706 |
|---|---|
| Head | |
| HIC-15 | 80 |
| Peak gs at hard contact | 12 |
| Neck | |
| Tension (kN) | 0.8 |
| Extension bending moment (Nm) | 10 |
| Maximum Nij | 0.18 |
| Chest maximum compression (mm) | 23 |
| Legs | |
| Femur force - left (kN) | 0.3 |
| Femur force - right (kN) | 4.1 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 2 |
| Maximum tibia index - left | 0.32 |
| Maximum tibia index - right | 0.85 |
| Tibia axial force - left (kN) | 1.5 |
| Tibia axial force - right (kN) | 4.5 |
| Foot acceleration (g) | |
| Left | 63 |
| Right | 50 |
Side: original test
Rating applies to 2004-08 models
Tested vehicle: 2007 Toyota Camry Solara SLE convertible with standard front seat-mounted torso airbags
The Toyota Camry Solara was redesigned for the 2004 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection The dummy's head was hit by the window sill and the side torso airbag. This impact did not produce high head injury measures, but the head protection is inadequate. |
|
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head was hit by the interior side trim. This impact did not produce high head injury measures, but the head protection is inadequate. |
|
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with door removed, showing the side airbag and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was hit by the window sill and side airbag.
Smeared yellow greasepaint shows where the rear passenger dummy’s head was hit by the interior side trim.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0705 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -8.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES0705 |
|---|---|
| Head HIC-15 | 196 |
| Neck | |
| Tension (kN) | 1.3 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 46 |
| Lateral force (kN) | 1.7 |
| Torso | |
| Maximum deflection (mm) | 39 |
| Average deflection (mm) | 38 |
| Maximum deflection rate (m/s) | 3.82 |
| Maximum viscous criterion (m/s) | 0.66 |
| Pelvis | |
| Iliac force (kN) | 1.7 |
| Acetabulum force (kN) | 4.1 |
| Combined force (kN) | 5.4 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 95 |
| A-P moment (Nm) | 21 |
Passenger injury measures
| Test ID | CES0705 |
|---|---|
| Head HIC-15 | 206 |
| Neck | |
| Tension (kN) | 1.9 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 42 |
| Lateral force (kN) | 2.5 |
| Torso | |
| Maximum deflection (mm) | 36 |
| Average deflection (mm) | 21 |
| Maximum deflection rate (m/s) | 5.81 |
| Maximum viscous criterion (m/s) | 0.83 |
| Pelvis | |
| Iliac force (kN) | 1.0 |
| Acetabulum force (kN) | 1.5 |
| Combined force (kN) | 2.4 |
| Left femur | |
| L-M force (kN) | 0.2 |
| L-M moment (Nm) | 71 |
| A-P moment (Nm) | -34 |
Head restraints & seats
Seat type: Power leather seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power leather seats |
|---|---|
| Geometry | |
| Backset (mm) | 62 |
| Distance below top of head (mm) | 62 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 11.6 |
| Head contact time (ms) | 102 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 204 |
| Max neck tension (N) | 895 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
