Small overlap front: passenger-side
Rating applies to 2011-20 models

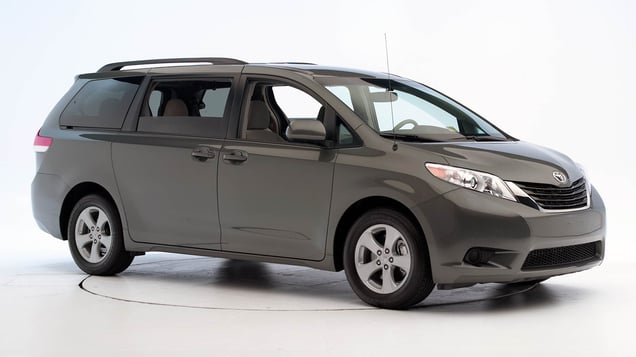

Tested vehicle: 2018 Toyota Sienna LE
The Toyota Sienna was redesigned for the 2011 model year. Although Toyota reinforced the structure in later model years on the driver side to improve occupant protection in small overlap frontal crashes, no such changes were made on the passenger side.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the passenger-side small overlap frontal crash test.
The dummy's position in relation to the door frame and dashboard after the crash test indicates that the passenger's survival space was not maintained well.
The frontal and side curtain airbags worked well together to keep the passenger dummy’s head from coming close to any stiff structure or outside objects that could cause injury.
Extensive intrusion of the dashboard and door hinge pillar contributed to a moderate risk of injuries to the right hip and right lower leg.
Measures of occupant compartment intrusion on passenger side
| Test ID | CEP1818 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 51 |
| Footrest (cm) | 30 |
| Right toepan (cm) | 19 |
| Center toepan (cm) | 11 |
| Rocker panel lateral average (cm) | 4 |
| Upper occupant compartment | |
| Center dash (cm) | 32 |
| Upper hinge pillar max (cm) | 49 |
| Upper dash (cm) | 42 |
| Right lower dash (cm) | 37 |
Passenger injury measures
| Test ID | CEP1818 |
|---|---|
| Head | |
| HIC-15 | 416 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 2.2 |
| Extension bending moment (Nm) | 42 |
| Maximum Nij | 0.50 |
| Chest maximum compression (mm) | 12 |
| Femur (kN) | |
| Left | 3.5 |
| Right | 5.7 |
| Knee displacement (mm) | |
| Left | 8 |
| Right | 11 |
| Knee-thigh-hip injury risk (%) | |
| Left | 1 |
| Right | 11 |
| Maximum tibia index | |
| Left | 0.53 |
| Right | 0.88 |
| Tibia axial force (kN) | |
| Left | 0.5 |
| Right | 0.3 |
| Foot acceleration (g) | |
| Left | 81 |
| Right | 57 |
Driver injury measures
| Test ID | CEP1818 |
|---|---|
| Head | |
| HIC-15 | 41 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.8 |
| Extension bending moment (Nm) | 12 |
| Maximum Nij | 0.16 |
| Chest maximum compression (mm) | 32 |
| Femur (kN) | |
| Left | 0.4 |
| Right | 0.6 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.18 |
| Right | 0.29 |
| Tibia axial force (kN) | |
| Left | 0.8 |
| Right | 0.6 |
| Foot acceleration (g) | |
| Left | 18 |
| Right | 44 |
Moderate overlap front: original test
Rating applies to 2011-20 models
Tested vehicle: 2011 Toyota Sienna LE
The Toyota Sienna was redesigned for the 2011 model year. Frontal ratings are assigned by the Institute based on a test conducted by Toyota.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF0906 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 8 |
| Left (cm) | 12 |
| Center (cm) | 7 |
| Right (cm) | 8 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 3 |
| Right (cm) | 3 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | VTF0906 |
|---|---|
| Head | |
| HIC-15 | 209 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 22 |
| Maximum Nij | 0.23 |
| Chest maximum compression (mm) | 31 |
| Legs | |
| Femur force - left (kN) | 0.7 |
| Femur force - right (kN) | 1.4 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.39 |
| Maximum tibia index - right | 0.32 |
| Tibia axial force - left (kN) | 2.2 |
| Tibia axial force - right (kN) | 2.8 |
| Foot acceleration (g) | |
| Left | 70 |
| Right | 90 |
Side: original test
Rating applies to 2011-13 models
Tested vehicle: 2011 Toyota Sienna LE with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
The Toyota Sienna was redesigned for the 2011 model year. Side ratings are assigned by the Institute based on a test conducted by Toyota.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS0909 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -15.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS0909 |
|---|---|
| Head HIC-15 | 172 |
| Neck | |
| Tension (kN) | 0.8 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 35 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 28 |
| Average deflection (mm) | 23 |
| Maximum deflection rate (m/s) | 2.14 |
| Maximum viscous criterion (m/s) | 0.35 |
| Pelvis | |
| Iliac force (kN) | 0.8 |
| Acetabulum force (kN) | 2.6 |
| Combined force (kN) | 3.0 |
| Left femur | |
| L-M force (kN) | 1.0 |
| L-M moment (Nm) | 23 |
| A-P moment (Nm) | 130 |
Passenger injury measures
| Test ID | VTS0909 |
|---|---|
| Head HIC-15 | 202 |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 41 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 27 |
| Average deflection (mm) | 17 |
| Maximum deflection rate (m/s) | 2.46 |
| Maximum viscous criterion (m/s) | 0.33 |
| Pelvis | |
| Iliac force (kN) | 1.7 |
| Acetabulum force (kN) | 2.2 |
| Combined force (kN) | 3.6 |
| Left femur | |
| L-M force (kN) | 0.2 |
| L-M moment (Nm) | 31 |
| A-P moment (Nm) | 67 |
Roof strength
Rating applies to 2011-20 models
Tested vehicle: 2011 Toyota Sienna LE
| Overall evaluation | |
|---|---|
| Curb weight | 4,354 lbs |
| Peak force | 17,950 lbs |
| Strength-to-weight ratio | 4.12 |
Head restraints & seats
Seat type: Power cloth seat AHR
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power cloth seat AHR |
|---|---|
| Geometry | |
| Backset (mm) | 55 |
| Distance below top of head (mm) | 28 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.4 |
| Head contact time (ms) | 66 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 31 |
| Max neck tension (N) | 540 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
