2003 Toyota Tundra
large pickup / Extended cab pickup
Moderate overlap front: original test
Rating applies to 2000-06 models

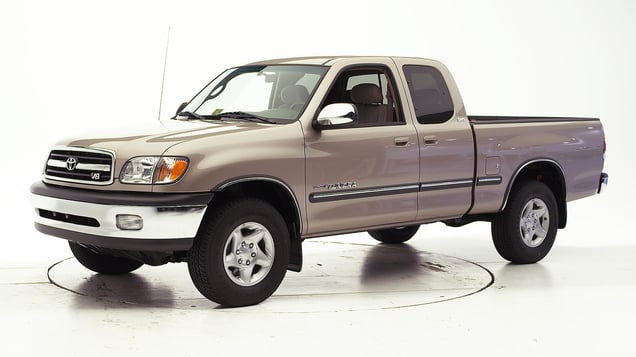

Tested vehicle: 2001 Toyota Tundra SR5 Access Cab 2wd
The Toyota Tundra was introduced in the 2000 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Dummy movement was well controlled. During rebound, the dummy's head hit only the head restraint, as indicated by smeared greasepaint.
Forces on the right lower leg were high enough to indicate the possibility of injury.
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0108 |
| Footwell intrusion | |
| Footrest (cm) | 10 |
| Left (cm) | 13 |
| Center (cm) | 20 |
| Right (cm) | 16 |
| Brake pedal (cm) | 7 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 4 |
| Steering column movement | |
| Upward (cm) | 7 |
| Rearward (cm) | 1 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0108 |
| Head | |
| HIC-15 | 217 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 13 |
| Maximum Nij | 0.23 |
| Chest maximum compression (mm) | 28 |
| Legs | |
| Femur force - left (kN) | 2.2 |
| Femur force - right (kN) | 0.8 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.41 |
| Maximum tibia index - right | 0.77 |
| Tibia axial force - left (kN) | 3.8 |
| Tibia axial force - right (kN) | 6.4 |
| Foot acceleration (g) | |
| Left | 85 |
| Right | 123 |
