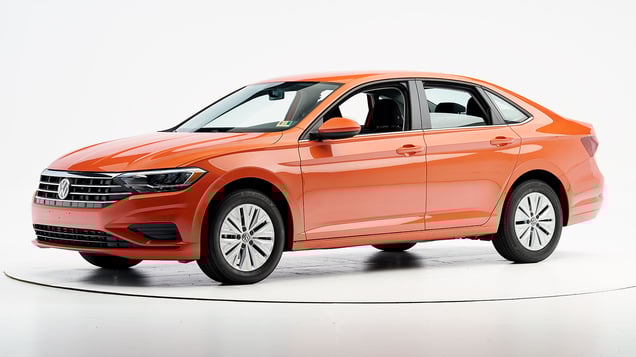

2020 Volkswagen Jetta
midsize car / 4-door sedan
Small overlap front: driver-side
Rating applies to 2019-24 models
Tested vehicle: 2019 Volkswagen Jetta 1.4T SEL Premium 4-door
The Volkswagen Jetta was redesigned for the 2019 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTN1812 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 9 |
| Footrest (cm) | 7 |
| Left toepan (cm) | 3 |
| Brake pedal (cm) | 4 |
| Parking brake (cm) | 0 |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Steering column | 2 |
| Upper hinge pillar max (cm) | 6 |
| Upper dash (cm) | 7 |
| Lower instrument panel (cm) | 7 |
Driver injury measures
| Test ID | VTN1812 |
|---|---|
| Head | |
| HIC-15 | 242 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.6 |
| Extension bending moment (Nm) | 16 |
| Maximum Nij | 0.26 |
| Chest maximum compression (mm) | 26 |
| Femur (kN) | |
| Left | 0.7 |
| Right | 0.1 |
| Knee displacement (mm) | |
| Left | 1 |
| Right | 0 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.56 |
| Right | 0.37 |
| Tibia axial force (kN) | |
| Left | 2.5 |
| Right | 1.9 |
| Foot acceleration (g) | |
| Left | 57 |
| Right | 73 |
Small overlap front: passenger-side
Rating applies to 2019-24 models
Tested vehicle: 2019 Volkswagen Jetta 1.4T SEL Premium 4-door
The Volkswagen Jetta was redesigned for the 2019 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Passenger injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Passenger restraints and dummy kinematics | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
| Test ID | VTP1828 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 11 |
| Footrest (cm) | 9 |
| Right toepan (cm) | 5 |
| Center toepan (cm) | 3 |
| Rocker panel lateral average (cm) | 1 |
| Upper occupant compartment | |
| Center dash (cm) | 3 |
| Upper hinge pillar max (cm) | 6 |
| Upper dash (cm) | 8 |
| Right lower dash (cm) | 10 |
Passenger injury measures
| Test ID | VTP1828 |
|---|---|
| Head | |
| HIC-15 | 147 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 11 |
| Maximum Nij | 0.19 |
| Chest maximum compression (mm) | 26 |
| Femur (kN) | |
| Left | 0.2 |
| Right | 0.5 |
| Knee displacement (mm) | |
| Left | 2 |
| Right | 3 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.41 |
| Right | 0.46 |
| Tibia axial force (kN) | |
| Left | 1.6 |
| Right | 1.7 |
| Foot acceleration (g) | |
| Left | 55 |
| Right | 30 |
Driver injury measures
| Test ID | VTP1828 |
|---|---|
| Head | |
| HIC-15 | 145 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 8 |
| Maximum Nij | 0.21 |
| Chest maximum compression (mm) | 31 |
| Femur (kN) | |
| Left | 0.1 |
| Right | 0.1 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.37 |
| Right | 0.27 |
| Tibia axial force (kN) | |
| Left | 0.2 |
| Right | 0.7 |
| Foot acceleration (g) | |
| Left | 34 |
| Right | 43 |
Moderate overlap front: original test
Rating applies to 2019-24 models
Tested vehicle: 2019 Volkswagen Jetta 1.4T S 4-door
The Volkswagen Jetta was redesigned for the 2019 model year. Two moderate overlap frontal tests of the Jetta were conducted, one by the Institute and the other by Volkswagen. Ratings are based on both tests.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the Institute's moderate overlap frontal crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well (Institute test car shown).
Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag, mainly during rebound, in the Institute's test.
Intrusion into the driver's space was minimal in both tests, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF1803 | VTF1824 |
|---|---|---|
| Footwell intrusion | ||
| Footrest (cm) | 4 | 7 |
| Left (cm) | 6 | 10 |
| Center (cm) | 5 | 6 |
| Right (cm) | 1 | 4 |
| Brake pedal (cm) | 3 | 3 |
| Instrument panel rearward movement | ||
| Left (cm) | 0 | -2 |
| Right (cm) | 0 | -1 |
| Steering column movement | ||
| Upward (cm) | -3 | -1 |
| Rearward (cm) | -6 | -6 |
| A-pillar rearward movement (cm) | 0 | 0 |
Driver injury measures
| Test ID | CEF1803 | VTF1824 |
|---|---|---|
| Head | ||
| HIC-15 | 252 | 215 |
| Peak gs at hard contact | no contact | no contact |
| Neck | ||
| Tension (kN) | 1.3 | 1.4 |
| Extension bending moment (Nm) | 7 | 7 |
| Maximum Nij | 0.24 | 0.25 |
| Chest maximum compression (mm) | 25 | 30 |
| Legs | ||
| Femur force - left (kN) | 0.2 | 1.6 |
| Femur force - right (kN) | 0.1 | 1.6 |
| Knee displacement - left (mm) | 0 | 0 |
| Knee displacement - right (mm) | 1 | 0 |
| Maximum tibia index - left | 0.26 | 0.30 |
| Maximum tibia index - right | 0.79 | 0.52 |
| Tibia axial force - left (kN) | 2.1 | 2.1 |
| Tibia axial force - right (kN) | 2.4 | 2.8 |
| Foot acceleration (g) | ||
| Left | 61 | 71 |
| Right | 86 | 130 |
Side: original test
Rating applies to 2019-24 models
Tested vehicle: 2019 Volkswagen Jetta 1.4T SEL Premium 4-door
The Volkswagen Jetta was redesigned for the 2019 model year. Side ratings are assigned by the Institute based on a test conducted by Volkswagen.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1822 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -21.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1822 |
|---|---|
| Head HIC-15 | 192 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.6 |
| Shoulder | |
| Lateral deflection (mm) | 35 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 39 |
| Average deflection (mm) | 34 |
| Maximum deflection rate (m/s) | 7.76 |
| Maximum viscous criterion (m/s) | 0.88 |
| Pelvis | |
| Iliac force (kN) | 2.3 |
| Acetabulum force (kN) | 2.1 |
| Combined force (kN) | 4.4 |
| Left femur | |
| L-M force (kN) | 1.5 |
| L-M moment (Nm) | 21 |
| A-P moment (Nm) | 195 |
Passenger injury measures
| Test ID | VTS1822 |
|---|---|
| Head HIC-15 | 241 |
| Neck | |
| Tension (kN) | 0.3 |
| Compression (kN) | 0.5 |
| Shoulder | |
| Lateral deflection (mm) | 36 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 34 |
| Average deflection (mm) | 26 |
| Maximum deflection rate (m/s) | 4.24 |
| Maximum viscous criterion (m/s) | 0.41 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 2.1 |
| Combined force (kN) | 2.2 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 99 |
| A-P moment (Nm) | 56 |
Side: updated test
Rating applies to 2019-24 models
Tested vehicle: 2021 Volkswagen Jetta 1.4T S 4-door
The Volkswagen Jetta was redesigned for the 2019 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis | |
| Rear passenger head protection | |
View of the vehicle just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES2219 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES2219 |
|---|---|
| Head | |
| HIC-15 | 226 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.1 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 27 |
| Lateral force (kN) | 1.1 |
| Torso | |
| Maximum deflection (mm) | 47 |
| Average deflection (mm) | 37 |
| Maximum deflection rate (m/s) | 5.51 |
| Maximum viscous criterion (m/s) | 1.00 |
| Pelvis | |
| Combined force (kN) | 5.3 |
Passenger injury measures
| Test ID | CES2219 |
|---|---|
| Head | |
| HIC-15 | 274 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.4 |
| Compression (kN) | 0.2 |
| Shoulder | |
| Lateral deflection (mm) | 50 |
| Lateral force (kN) | 1.7 |
| Torso | |
| Maximum deflection (mm) | 43 |
| Average deflection (mm) | 39 |
| Maximum deflection rate (m/s) | 4.35 |
| Maximum viscous criterion (m/s) | 0.82 |
| Pelvis | |
| Combined force (kN) | 4.7 |
Roof strength
Rating applies to 2019-23 models
Tested vehicle: 2019 Volkswagen Jetta 1.4T S 4-door
| Overall evaluation | |
|---|---|
| Curb weight | 2,942 lbs |
| Peak force | 17,181 lbs |
| Strength-to-weight ratio | 5.84 |
Head restraints & seats
Seat type: Manual cloth seat
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seat |
|---|---|
| Geometry | |
| Backset (mm) | 40 |
| Distance below top of head (mm) | 14 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.4 |
| Head contact time (ms) | 68 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 46 |
| Max neck tension (N) | 411 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 2 different headlight variations available on this vehicle.
Trim level(s)
- SEL trim
- SEL Premium trim
| Low-beam headlight type | LED projector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on the gradual right curve, fair on the sharp right and sharp left curves, and inadequate on the gradual left curve.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on both left curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED projector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | Yes |
|
Overall rating Applies to 2019-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 83.8 m | None |
| Straightaway left edge | 50.4 m | None |
| 250m radius right curve, right edge | 65.1 m | None |
| 250m radius left curve, right edge | 48.2 m | None |
| 150m radius right curve, right edge | 50.4 m | None |
| 150m radius left curve, left edge | 45.7 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 105.0 m |
| Straightaway left edge | 66.0 m |
| 250m radius right curve, right edge | 63.6 m |
| 250m radius left curve, left edge | 55.1 m |
| 150m radius right curve, right edge | 48.9 m |
| 150m radius left curve, left edge | 47.3 m |
Trim level(s)
- S trim
- SE trim
- R-Line trim
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2019-24 models |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 68.8 m | None |
| Straightaway left edge | 33.3 m | None |
| 250m radius right curve, right edge | 56.3 m | None |
| 250m radius left curve, left edge | 38.1 m | None |
| 150m radius right curve, right edge | 51.0 m | None |
| 150m radius left curve, left edge | 34.1 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 153.3 m |
| Straightaway left edge | 120.3 m |
| 250m radius right curve, right edge | 67.7 m |
| 250m radius left curve, left edge | 57.1 m |
| 150m radius right curve, right edge | 55.6 m |
| 150m radius left curve, left edge | 44.9 m |
Front crash prevention: vehicle-to-vehicle
Child seat anchors
Rating applies to 2019-24 models
| Overall evaluation | |
| Vehicle trim | S |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Overall evaluation | |
| Vehicle trim | S |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| difficult to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| difficult to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | could not measure |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | could not measure |
| Tether anchor | |
| Location | Rear deck |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| No lower latch for this seat position | |
| Lower anchor B | |
| No lower latch for this seat position | |
| Tether anchor | |
| Location | Rear deck |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | could not measure |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | could not measure |
| Tether anchor | |
| Location | Rear deck |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
