Small overlap front: driver-side
Rating applies to 2017-24 models

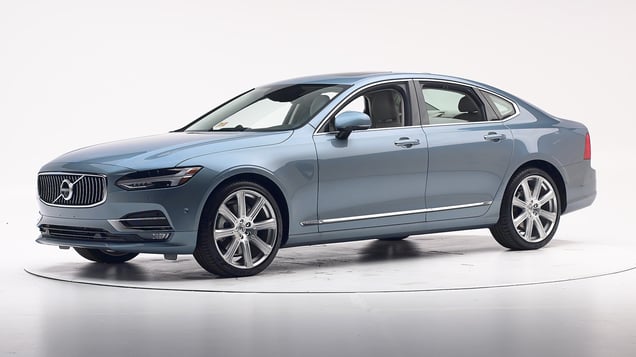

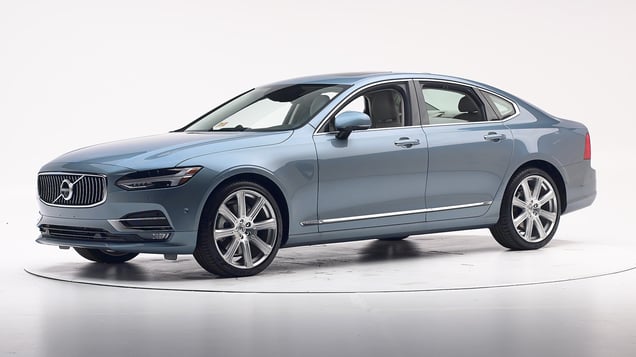

Tested vehicle: 2017 Volvo S90 T6 Inscription 4-door 4wd
The Volvo S90 was introduced in the 2017 model year as a replacement for the Volvo S80. These ratings also apply to two wagons, the Volvo V90 and V90 Cross Country, and the Volvo S90 Recharge, a plug-in hybrid variant of the S90 sedan.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.
The driver's space was maintained well, and risk of injuries to the dummy's legs and feet was low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1633 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 2 |
| Footrest (cm) | 2 |
| Left toepan (cm) | 2 |
| Brake pedal (cm) | 4 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 0 |
| Upper occupant compartment | |
| Steering column | 0 |
| Upper hinge pillar max (cm) | 1 |
| Upper dash (cm) | 1 |
| Lower instrument panel (cm) | 1 |
Driver injury measures
| Test ID | CEN1633 |
|---|---|
| Head | |
| HIC-15 | 76 |
| Peak gs at hard contact | not meas. |
| Neck | |
| Tension (kN) | 0.4 |
| Extension bending moment (Nm) | 13 |
| Maximum Nij | 0.12 |
| Chest maximum compression (mm) | 16 |
| Femur (kN) | |
| Left | 0.9 |
| Right | 0.7 |
| Knee displacement (mm) | |
| Left | 0 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.52 |
| Right | 0.44 |
| Tibia axial force (kN) | |
| Left | 2.9 |
| Right | 0.6 |
| Foot acceleration (g) | |
| Left | 40 |
| Right | 26 |
Moderate overlap front: original test
Rating applies to 2017-24 models
Tested vehicle: 2017 Volvo S90 T6 4-door 4wd
The Volvo S90 was introduced in the 2017 model year as a replacement for the Volvo S80. These ratings also apply to two wagons, the Volvo V90 and V90 Cross Country, and the Volvo S90 Recharge, a plug-in hybrid variant of the S90 sedan. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Volvo.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
| Test ID | VTF1625 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 1 |
| Left (cm) | 1 |
| Center (cm) | 1 |
| Right (cm) | 1 |
| Brake pedal (cm) | 3 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -6 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF1625 |
|---|---|
| Head | |
| HIC-15 | 114 |
| Peak gs at hard contact | 30 |
| Neck | |
| Tension (kN) | 1.0 |
| Extension bending moment (Nm) | 9 |
| Maximum Nij | 0.22 |
| Chest maximum compression (mm) | 27 |
| Legs | |
| Femur force - left (kN) | 1.3 |
| Femur force - right (kN) | 0.6 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.51 |
| Maximum tibia index - right | 0.35 |
| Tibia axial force - left (kN) | 3.7 |
| Tibia axial force - right (kN) | 1.9 |
| Foot acceleration (g) | |
| Left | 73 |
| Right | 51 |
Side: original test
Rating applies to 2017 models
Tested vehicle: 2017 Volvo S90 T6 Inscription 4-door 4wd
The Volvo S90 was introduced in the 2017 model year as a replacement for the Volvo S80. Side ratings are assigned by the Institute based on a test conducted by Volvo.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1623 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -18.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1623 |
|---|---|
| Head HIC-15 | 240 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 28 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 43 |
| Average deflection (mm) | 40 |
| Maximum deflection rate (m/s) | 5.35 |
| Maximum viscous criterion (m/s) | 1.07 |
| Pelvis | |
| Iliac force (kN) | 1.6 |
| Acetabulum force (kN) | 1.3 |
| Combined force (kN) | 2.7 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 155 |
| A-P moment (Nm) | 34 |
Passenger injury measures
| Test ID | VTS1623 |
|---|---|
| Head HIC-15 | 119 |
| Neck | |
| Tension (kN) | 0.6 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 13 |
| Lateral force (kN) | 0.9 |
| Torso | |
| Maximum deflection (mm) | 20 |
| Average deflection (mm) | 12 |
| Maximum deflection rate (m/s) | 1.50 |
| Maximum viscous criterion (m/s) | 0.11 |
| Pelvis | |
| Iliac force (kN) | 0.7 |
| Acetabulum force (kN) | 0.9 |
| Combined force (kN) | 1.3 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 146 |
| A-P moment (Nm) | -14 |
Roof strength
Rating applies to 2017-23 models
Tested vehicle: 2017 Volvo S90 T6 Inscription 4-door 4wd
Rating applies to the S90 short-wheelbase model (tested) and the structurally similar S90 long-wheelbase model.
| Overall evaluation | |
|---|---|
| Curb weight | 4,140 lbs |
| Peak force | 21,877 lbs |
| Strength-to-weight ratio | 5.28 |
Head restraints & seats
Seat type: Power leather seat
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power leather seat |
|---|---|
| Geometry | |
| Backset (mm) | 19 |
| Distance below top of head (mm) | 10 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.0 |
| Head contact time (ms) | 49 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 10 |
| Max neck tension (N) | 242 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 4 different headlight variations available on this vehicle.
Trim level(s)
- Momentum trim; built after January 2017
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on both right curves and inadequate on both left curves.
The low beams created some glare.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp right and sharp left curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2017 models built after January 2017 |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 98.1 m | None |
| Straightaway left edge | 51.2 m | None |
| 250m radius right curve, right edge | 67.4 m | 48.1% |
| 250m radius left curve, left edge | 45.1 m | None |
| 150m radius right curve, right edge | 57.4 m | 97.4% |
| 150m radius left curve, left edge | 44.8 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 167.0 m |
| Straightaway left edge | 157.9 m |
| 250m radius right curve, right edge | 80.2 m |
| 250m radius left curve, left edge | 76.0 m |
| 150m radius right curve, right edge | 61.8 m |
| 150m radius left curve, left edge | 59.8 m |
Trim level(s)
- Momentum trim equipped with Momentum Plus package; built after January 2017
- Inscription trim; built after January 2017
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was fair on the sharp right curve and inadequate on the gradual right and both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right curve, fair on the gradual left and sharp right curves, and inadequate on the sharp left curve.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating Applies to 2017-19 models built after January 2017 |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 80.6 m | None |
| Straightaway left edge | 26.1 m | None |
| 250m radius right curve, right edge | 49.3 m | None |
| 250m radius left curve, left edge | 30.6 m | None |
| 150m radius right curve, right edge | 45.5 m | None |
| 150m radius left curve, left edge | 33.4 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 145.6 m |
| Straightaway left edge | 120.1 m |
| 250m radius right curve, right edge | 78.4 m |
| 250m radius left curve, left edge | 73.6 m |
| 150m radius right curve, right edge | 57.5 m |
| 150m radius left curve, left edge | 54.9 m |
Trim level(s)
- Momentum trim equipped with Momentum Plus package; built before February 2017
- Inscription trim; built before February 2017
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was fair on the sharp right curve and inadequate on the gradual right and both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp left and sharp right curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | Yes |
| High-beam assist? | Yes |
|
Overall rating Applies to 2017 models built before February 2017 |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 76.6 m | None |
| Straightaway left edge | 29.7 m | None |
| 250m radius right curve, right edge | 50.7 m | None |
| 250m radius left curve, left edge | 31.9 m | None |
| 150m radius right curve, right edge | 47.4 m | None |
| 150m radius left curve, left edge | 32.9 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 150.1 m |
| Straightaway left edge | 130.8 m |
| 250m radius right curve, right edge | 77.7 m |
| 250m radius left curve, left edge | 77.5 m |
| 150m radius right curve, right edge | 57.5 m |
| 150m radius left curve, left edge | 58.9 m |
Trim level(s)
- Momentum trim; built before February 2017
| Low-beam headlight type | LED reflector |
|---|---|
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating | |
| Distance at which headlights provide at least 5 lux illumination: | |
Low beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on the gradual right and both left curves and inadequate on the sharp right curve.
| Trim level(s) |
|
|---|---|
| Low-beam headlight type | LED reflector |
| High-beam headlight type | LED reflector |
| Curve-adaptive? | No |
| High-beam assist? | No |
|
Overall rating Applies to 2017 models built before February 2017 |
| LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
|---|---|---|
| Straightaway right edge | 74.8 m | None |
| Straightaway left edge | 31.5 m | None |
| 250m radius right curve, right edge | 47.6 m | None |
| 250m radius left curve, left edge | 32.1 m | None |
| 150m radius right curve, right edge | 43.2 m | None |
| 150m radius left curve, left edge | 32.1 m | None |
| HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
|---|---|
| Straightaway right edge | 154.1 m |
| Straightaway left edge | 143.6 m |
| 250m radius right curve, right edge | 70.7 m |
| 250m radius left curve, left edge | 73.3 m |
| 150m radius right curve, right edge | 54.1 m |
| 150m radius left curve, left edge | 56.4 m |
Front crash prevention: vehicle-to-vehicle
Child seat anchors
Rating applies to 2017-24 models
| Overall evaluation | |
| Vehicle trim | T6 Inscription |
| Seat type | leather |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Overall evaluation | |
| Vehicle trim | T6 Inscription |
| Seat type | leather |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| difficult to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| difficult to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 46 |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 46 |
| Tether anchor | |
| Location | Rear deck |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| No lower latch for this seat position | |
| Lower anchor B | |
| No lower latch for this seat position | |
| Tether anchor | |
| Location | Rear deck |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 49 |
| Lower anchor B | |
| Open access rated | Yes |
| Depth | Visible |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 47 |
| Tether anchor | |
| Location | Rear deck |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
Yes |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
