2021 Acura ILX

small car / 4-door sedan

2021 Acura ILX 4-door sedan

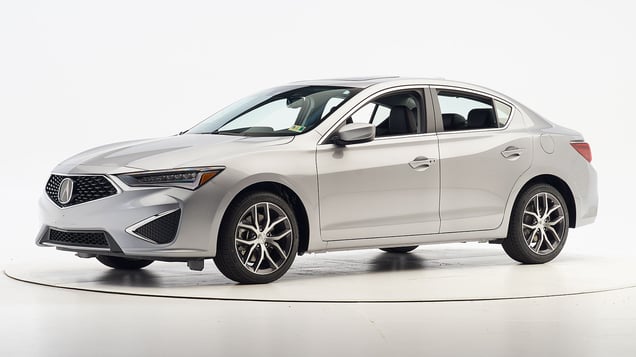

2019 Acura ILX shown

Crashworthiness

Rating overview
Small overlap front: driver-side
Moderate overlap front: original test
Side: original test
Roof strength
Head restraints & seats

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Standard system
Superior

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Standard lane departure warning & prevention

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Small overlap front: driver-side

Rating applies to 2016-22 models

Tested vehicle: 2016 Acura ILX Premium 4-door

The Acura ILX was introduced in the 2013 model year and is derived from the Honda Civic. Beginning with 2016 models, the ILX was re-engineered with structural and occupant restraint changes to improve occupant protection in both small overlap and moderate overlap frontal crashes.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Hip/thigh
Lower leg/foot
Driver restraints and dummy kinematics

Action shot taken during the small overlap frontal crash test.

The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was maintained well.

The frontal and side curtain airbags worked well together to keep the head from coming close to any stiff structure or outside objects that could cause injury.

Forces during the crash contributed to a moderate risk of injury to the dummy's left lower leg.

Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID CEN1530
Lower occupant compartment
Lower hinge pillar max (cm) 9
Footrest (cm) 12
Left toepan (cm) 4
Brake pedal (cm) 4
Parking brake (cm)
Rocker panel lateral average (cm) 7
Upper occupant compartment
Steering column 2
Upper hinge pillar max (cm) 4
Upper dash (cm) 5
Lower instrument panel (cm) 4

Driver injury measures

Test ID CEN1530
Head
HIC-15 264
Peak gs at hard contact no contact
Neck
Tension (kN) no data
Extension bending moment (Nm) no data
Maximum Nij 0.00
Chest maximum compression (mm) 22
Femur (kN)
Left 1.3
Right 0.0
Knee displacement (mm)
Left 1
Right 0
Knee-thigh-hip injury risk (%)
Left 0
Right 0
Maximum tibia index
Left 0.89
Right 0.54
Tibia axial force (kN)
Left 1.7
Right 1.0
Foot acceleration (g)
Left 64
Right 40

About the small overlap front test

Moderate overlap front: original test

Rating applies to 2016-22 models

Tested vehicle: 2016 Acura ILX Technology 4-door

The Acura ILX was introduced in the 2013 model year and is derived from the Honda Civic. Beginning with 2016 models, the ILX was re-engineered with structural and occupant restraint changes to improve occupant protection in both small overlap and moderate overlap frontal crashes.

Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1419
Footwell intrusion
Footrest (cm) 5
Left (cm) 6
Center (cm) 6
Right (cm) 6
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -1
Rearward (cm) -3
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1419
Head
HIC-15 230
Peak gs at hard contact no contact
Neck
Tension (kN) 1.1
Extension bending moment (Nm) 21
Maximum Nij 0.25
Chest maximum compression (mm) 21
Legs
Femur force - left (kN) 0.1
Femur force - right (kN) 0.1
Knee displacement - left (mm) 0
Knee displacement - right (mm) 0
Maximum tibia index - left 0.30
Maximum tibia index - right 0.59
Tibia axial force - left (kN) 2.2
Tibia axial force - right (kN) 2.4
Foot acceleration (g)
Left 55
Right 75

About the original moderate overlap front test

Side: original test

Rating applies to 2016-22 models

Tested vehicle: 2016 Acura ILX Technology 4-door

The Acura ILX was introduced in the 2013 model year and is derived from the Honda Civic. Beginning with 2016 models, the ILX was re-engineered with structural and occupant restraint changes to improve occupant protection in side impact crashes.

Side ratings are assigned by the Institute based on a test conducted by Honda.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1421
B-pillar to longitudinal centerline of driver's seat (cm) -15.5
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1421
Head HIC-15 414
Neck
Tension (kN) 0.8
Compression (kN) 0.0
Shoulder
Lateral deflection (mm) 50
Lateral force (kN) 1.5
Torso
Maximum deflection (mm) 38
Average deflection (mm) 26
Maximum deflection rate (m/s) 3.22
Maximum viscous criterion (m/s) 0.43
Pelvis
Iliac force (kN) 1.2
Acetabulum force (kN) 2.1
Combined force (kN) 3.1
Left femur
L-M force (kN) 0.7
L-M moment (Nm) 58
A-P moment (Nm) 159

Passenger injury measures

Test ID VTS1421
Head HIC-15 205
Neck
Tension (kN) 0.2
Compression (kN) 0.8
Shoulder
Lateral deflection (mm) 41
Lateral force (kN) 1.4
Torso
Maximum deflection (mm) 32
Average deflection (mm) 27
Maximum deflection rate (m/s) 3.24
Maximum viscous criterion (m/s) 0.42
Pelvis
Iliac force (kN) 0.2
Acetabulum force (kN) 1.7
Combined force (kN) 1.7
Left femur
L-M force (kN) 1.0
L-M moment (Nm) 49
A-P moment (Nm) 185

About the original side crash test

Roof strength

Rating applies to 2013-22 models

Tested vehicle: 2013 Acura ILX 4-door

Overall evaluation
Curb weight2,879 lbs
Peak force16,226 lbs
Strength-to-weight ratio5.64

About the roof strength test

Head restraints & seats

Seat type: Power leather seats

Overall evaluation
Dynamic rating
Seat/head restraint geometry
Technical measurements for this test
Seat type Power leather seats
Geometry
Backset (mm) 39
Distance below top of head (mm) 35
Seat design parameters
Pass/fail Pass
Max T1 acceleration (g) 13.0
Head contact time (ms) 63
Force rating 1
Neck forces
Max neck shear force (N) 0
Max neck tension (N) 478

About the head restraint & seat test
Currently, IIHS tests apply only to front seats.

Headlights

Trim level(s)

  • All trims
Low-beam headlight typeLED projector
High-beam headlight typeLED projector
Curve-adaptive?No
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Excessive glare

Low beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good on the sharp left and both right curves and inadequate on the gradual left curve.

The low beams created excessive glare.

High beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was good on the sharp left and both right curves and fair on the gradual left curve.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and on the gradual left curve.

Technical measurements for this test
Trim level(s)
  • All trims
Low-beam headlight type LED projector
High-beam headlight type LED projector
Curve-adaptive? No
High-beam assist? Yes
Overall rating
Applies to 2019-22 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)
Amount glare
exceeded threshold
Straightaway right edge 123.5 m 113.9%
Straightaway left edge 52.4 m 113.9%
250m radius right curve, right edge 84.9 m 76.3%
250m radius left curve, right edge 50.1 m None
150m radius right curve, right edge 67.6 m 55.6%
150m radius left curve, right edge 61.2 m 36.8%
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 178.6 m
Straightaway left edge 171.3 m
250m radius right curve, right edge 91.2 m
250m radius left curve, left edge 69.9 m
150m radius right curve, right edge 68.1 m
150m radius left curve, left edge 66.6 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

System details

  • Standard Collision Mitigation Braking System

Package name

  • Standard Honda Sensing

Overall evaluation

Applies to 2019-22 models

Superior
Superior
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle avoided a collision.

About the original front crash prevention test

Child seat anchors

Rating applies to 2016-22 models

Overall evaluation
Vehicle trimPremium
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimPremium
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
easy to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 4-6
Force (lbs) 26
Clearance angle (degrees) 65
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 34
Clearance angle (degrees) 65
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 29
Clearance angle (degrees) 60
Lower anchor B
Open access rated No
Depth (cm) 4-6
Force (lbs) 30
Clearance angle (degrees) 60
Tether anchor
Location Rear deck
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor
No
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH
Not measured

About the child seat anchor evaluation
