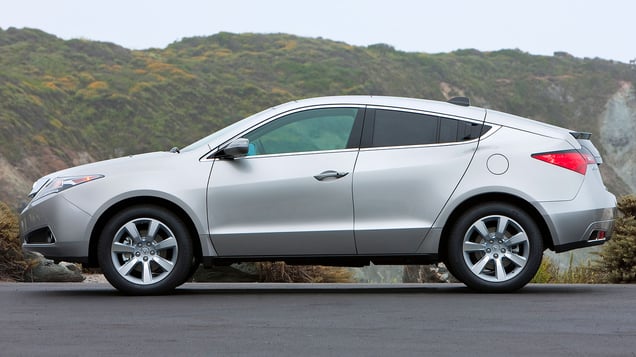

2010 Acura ZDX
midsize luxury SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2010-13 models
Tested vehicle: 2010 Acura ZDX Advance 4-door 4wd
The Acura ZDX was introduced in the 2010 model year and is derived from the Acura MDX. Frontal ratings are assigned by the Institute based on a test conducted by Honda. The ZDX was discontinued after the 2013 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
| Test ID | VTF0908 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 2 |
| Left (cm) | 6 |
| Center (cm) | 10 |
| Right (cm) | 11 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | -1 |
| Right (cm) | 0 |
| Steering column movement | |
| Upward (cm) | 2 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Test ID | VTF0908 |
|---|---|
| Head | |
| HIC-15 | 124 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.8 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.21 |
| Chest maximum compression (mm) | 25 |
| Legs | |
| Femur force - left (kN) | 0.3 |
| Femur force - right (kN) | 0.2 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 1 |
| Maximum tibia index - left | 0.32 |
| Maximum tibia index - right | 0.48 |
| Tibia axial force - left (kN) | 3.1 |
| Tibia axial force - right (kN) | 2.5 |
| Foot acceleration (g) | |
| Left | 58 |
| Right | 85 |
Head restraints & seats
Seat type: Power leather seat (AHR)
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
Technical measurements for this test
| Seat type | Power leather seat (AHR) |
|---|---|
| Geometry | |
| Backset (mm) | 70 |
| Distance below top of head (mm) | 36 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 14.1 |
| Head contact time (ms) | 71 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 102 |
| Max neck tension (N) | 403 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
