Small overlap front: driver-side
Rating applies to 2018-25 models

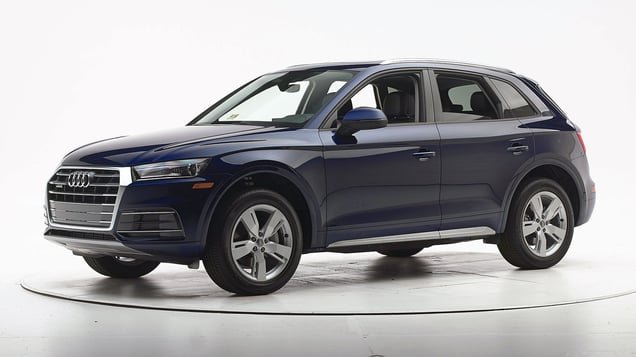

Tested vehicle: 2018 Audi Q5 Premium quattro 4-door 4wd
The Audi Q5 was redesigned for the 2018 model year. Driver-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi. These ratings also apply to the Audi Q5 Sportback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTN1709 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 6 |
Footrest (cm) | 10 |
Left toepan (cm) | 8 |
Brake pedal (cm) | 7 |
Parking brake (cm) | |
Rocker panel lateral average (cm) | 0 |
Upper occupant compartment | |
Steering column | 0 |
Upper hinge pillar max (cm) | 4 |
Upper dash (cm) | 10 |
Lower instrument panel (cm) | 9 |
Driver injury measures
Test ID | VTN1709 |
---|---|
Head | |
HIC-15 | 110 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 22 |
Maximum Nij | 0.20 |
Chest maximum compression (mm) | 31 |
Femur (kN) | |
Left | 3.0 |
Right | 0.0 |
Knee displacement (mm) | |
Left | 2 |
Right | 1 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.64 |
Right | 0.24 |
Tibia axial force (kN) | |
Left | 2.7 |
Right | 0.5 |
Foot acceleration (g) | |
Left | 80 |
Right | 51 |
Small overlap front: passenger-side
Rating applies to 2018-25 models
Tested vehicle: 2018 Audi Q5 Premium quattro 4-door 4wd
The Audi Q5 was redesigned for the 2018 model year. Passenger-side small overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi. These ratings also apply to the Audi Q5 Sportback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Passenger injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Passenger restraints and dummy kinematics | |
Driver injury measures | |
Head/neck | |
Chest | |
Hip/thigh | |
Lower leg/foot | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on passenger side
Test ID | VTP1728 |
---|---|
Lower occupant compartment | |
Lower hinge pillar max (cm) | 6 |
Footrest (cm) | 10 |
Right toepan (cm) | 8 |
Center toepan (cm) | 4 |
Rocker panel lateral average (cm) | 1 |
Upper occupant compartment | |
Center dash (cm) | 4 |
Upper hinge pillar max (cm) | 4 |
Upper dash (cm) | 6 |
Right lower dash (cm) | 6 |
Passenger injury measures
Test ID | VTP1728 |
---|---|
Head | |
HIC-15 | 230 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 15 |
Maximum Nij | 0.20 |
Chest maximum compression (mm) | 31 |
Femur (kN) | |
Left | 0.7 |
Right | 1.0 |
Knee displacement (mm) | |
Left | 5 |
Right | 4 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.46 |
Right | 0.36 |
Tibia axial force (kN) | |
Left | 1.5 |
Right | 1.9 |
Foot acceleration (g) | |
Left | 59 |
Right | 81 |
Driver injury measures
Test ID | VTP1728 |
---|---|
Head | |
HIC-15 | 159 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.9 |
Extension bending moment (Nm) | 11 |
Maximum Nij | 0.24 |
Chest maximum compression (mm) | 35 |
Femur (kN) | |
Left | 0.1 |
Right | 0.1 |
Knee displacement (mm) | |
Left | 0 |
Right | 0 |
Knee-thigh-hip injury risk (%) | |
Left | 0 |
Right | 0 |
Maximum tibia index | |
Left | 0.19 |
Right | 0.20 |
Tibia axial force (kN) | |
Left | 1.8 |
Right | 1.2 |
Foot acceleration (g) | |
Left | 53 |
Right | 85 |
Moderate overlap front: original test
Rating applies to 2018-25 models
Tested vehicle: 2018 Audi Q5 Premium quattro 4-door 4wd
The Audi Q5 was redesigned for the 2018 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi. These ratings also apply to the Audi Q5 Sportback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Measures of occupant compartment intrusion on driver side
Test ID | VTF1713 |
---|---|
Footwell intrusion | |
Footrest (cm) | 1 |
Left (cm) | 1 |
Center (cm) | 1 |
Right (cm) | 1 |
Brake pedal (cm) | 1 |
Instrument panel rearward movement | |
Left (cm) | 0 |
Right (cm) | 0 |
Steering column movement | |
Upward (cm) | -3 |
Rearward (cm) | -7 |
A-pillar rearward movement (cm) | 0 |
Driver injury measures
Test ID | VTF1713 |
---|---|
Head | |
HIC-15 | 159 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 0.8 |
Extension bending moment (Nm) | 8 |
Maximum Nij | 0.19 |
Chest maximum compression (mm) | 29 |
Legs | |
Femur force - left (kN) | 0.2 |
Femur force - right (kN) | 0.2 |
Knee displacement - left (mm) | 0 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 0.18 |
Maximum tibia index - right | 0.39 |
Tibia axial force - left (kN) | 1.6 |
Tibia axial force - right (kN) | 0.8 |
Foot acceleration (g) | |
Left | 44 |
Right | 42 |
Side: original test
Rating applies to 2018-25 models
Tested vehicle: 2018 Audi Q5 Premium quattro 4-door 4wd
The Audi Q5 was redesigned for the 2018 model year. Side ratings are assigned by the Institute based on a test conducted by Volkswagen/Audi. These ratings also apply to the Audi Q5 Sportback.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Driver head protection
Even though the side curtain and side thorax airbags deployed, they missed contacting and protecting the dummy's head. Instead, the head was hit by the intruding window sill. According to Volkswagen/Audi, this surface satisfies the federal standard to provide some protection for occupants' heads. | |
Rear passenger injury measures | |
Head/neck | |
Torso | |
Pelvis/leg | |
Rear passenger head protection |
Measures of occupant compartment intrusion on driver side
Test ID | VTS1711 |
---|---|
B-pillar to longitudinal centerline of driver's seat (cm) | -22.5 |
Negative numbers indicate the amount by which the crush stopped short of the seat centerline. |
Driver injury measures
Test ID | VTS1711 |
---|---|
Head HIC-15 | 184 |
Neck | |
Tension (kN) | 1.1 |
Compression (kN) | 0.2 |
Shoulder | |
Lateral deflection (mm) | 25 |
Lateral force (kN) | 1.3 |
Torso | |
Maximum deflection (mm) | 27 |
Average deflection (mm) | 24 |
Maximum deflection rate (m/s) | 2.92 |
Maximum viscous criterion (m/s) | 0.34 |
Pelvis | |
Iliac force (kN) | 0.7 |
Acetabulum force (kN) | 2.0 |
Combined force (kN) | 2.5 |
Left femur | |
L-M force (kN) | 0.2 |
L-M moment (Nm) | 69 |
A-P moment (Nm) | 24 |
Passenger injury measures
Test ID | VTS1711 |
---|---|
Head HIC-15 | 239 |
Neck | |
Tension (kN) | 0.5 |
Compression (kN) | 0.2 |
Shoulder | |
Lateral deflection (mm) | 29 |
Lateral force (kN) | 1.0 |
Torso | |
Maximum deflection (mm) | 25 |
Average deflection (mm) | 19 |
Maximum deflection rate (m/s) | 2.84 |
Maximum viscous criterion (m/s) | 0.28 |
Pelvis | |
Iliac force (kN) | 1.6 |
Acetabulum force (kN) | 0.7 |
Combined force (kN) | 2.3 |
Left femur | |
L-M force (kN) | 0.2 |
L-M moment (Nm) | 78 |
A-P moment (Nm) | 17 |
Roof strength
Rating applies to 2018-23 models
Tested vehicle: 2018 Audi Q5 2.0T Premium Plus quattro 4-door 4wd
Overall evaluation | |
---|---|
Curb weight | 4,114 lbs |
Peak force | 21,215 lbs |
Strength-to-weight ratio | 5.16 |
Head restraints & seats
Seat type: Power leather seat
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | Power leather seat |
---|---|
Geometry | |
Backset (mm) | 25 |
Distance below top of head (mm) | 5 |
Seat design parameters | |
Pass/fail | Pass |
Max T1 acceleration (g) | 12.5 |
Head contact time (ms) | 65 |
Force rating | 1 |
Neck forces | |
Max neck shear force (N) | 0 |
Max neck tension (N) | 387 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Headlights
Ratings are given for 3 different headlight variations available on this vehicle.
Trim level(s)
- Prestige trim
Low-beam headlight type | LED projector |
---|---|
High-beam headlight type | LED reflector |
Curve-adaptive? | No |
High-beam assist? | Yes |
Overall rating | |
Distance at which headlights provide at least 5 lux illumination: |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on the gradual right curve, fair on the sharp right curve and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.
High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway and all 4 curves.
Trim level(s) |
|
---|---|
Low-beam headlight type | LED projector |
High-beam headlight type | LED reflector |
Curve-adaptive? | No |
High-beam assist? | Yes |
Overall rating Applies to 2018-20 models |
LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
---|---|---|
Straightaway right edge | 79.2 m | None |
Straightaway left edge | 48.3 m | None |
250m radius right curve, right edge | 65.3 m | None |
250m radius left curve, right edge | 43.5 m | None |
150m radius right curve, right edge | 54.6 m | None |
150m radius left curve, left edge | 43.7 m | None |
HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
---|---|
Straightaway right edge | 134.1 m |
Straightaway left edge | 112.1 m |
250m radius right curve, right edge | 72.0 m |
250m radius left curve, left edge | 60.0 m |
150m radius right curve, right edge | 56.7 m |
150m radius left curve, left edge | 47.8 m |
Trim level(s)
- Premium Plus trim
Low-beam headlight type | LED projector |
---|---|
High-beam headlight type | LED reflector |
Curve-adaptive? | No |
High-beam assist? | No |
Overall rating | |
Distance at which headlights provide at least 5 lux illumination: |
Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on the gradual right curve, fair on the sharp right curve and inadequate on both left curves.
The low beams never exceeded glare limits.
High beams
On the straightaway, visibility was fair on the right side of the road and inadequate on the left side. On curves, visibility was fair on both right curves and inadequate on both left curves.
Trim level(s) |
|
---|---|
Low-beam headlight type | LED projector |
High-beam headlight type | LED reflector |
Curve-adaptive? | No |
High-beam assist? | No |
Overall rating Applies to 2018-19 models |
LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
---|---|---|
Straightaway right edge | 79.2 m | None |
Straightaway left edge | 48.3 m | None |
250m radius right curve, right edge | 65.3 m | None |
250m radius left curve, right edge | 43.5 m | None |
150m radius right curve, right edge | 54.6 m | None |
150m radius left curve, left edge | 43.7 m | None |
HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
---|---|
Straightaway right edge | 134.1 m |
Straightaway left edge | 112.1 m |
250m radius right curve, right edge | 72.0 m |
250m radius left curve, left edge | 60.0 m |
150m radius right curve, right edge | 56.7 m |
150m radius left curve, left edge | 47.8 m |
Trim level(s)
- Premium trim
Low-beam headlight type | HID projector |
---|---|
High-beam headlight type | HID projector |
Curve-adaptive? | No |
High-beam assist? | No |
Overall rating | |
Distance at which headlights provide at least 5 lux illumination: |
Low beams
On the straightaway, visibility was good on both sides of the road. On curves, visibility was fair on both right curves and inadequate on both left curves.
The low beams created some glare.
High beams
On the straightaway, visibility was inadequate on both sides of the road. On curves, visibility was inadequate in all 4 tests.
Trim level(s) |
|
---|---|
Low-beam headlight type | HID projector |
High-beam headlight type | HID projector |
Curve-adaptive? | No |
High-beam assist? | No |
Overall rating Applies to 2018-19 models |
LOW BEAMS | Average minimum useful illumination distance (5 lux) |
Amount glare exceeded threshold |
---|---|---|
Straightaway right edge | 94.3 m | None |
Straightaway left edge | 56.0 m | None |
250m radius right curve, right edge | 59.4 m | 15.7% |
250m radius left curve, left edge | 51.3 m | None |
150m radius right curve, right edge | 46.3 m | 33.6% |
150m radius left curve, left edge | 43.6 m | None |
HIGH BEAMS | Average minimum useful illumination distance (5 lux) |
---|---|
Straightaway right edge | 122.1 m |
Straightaway left edge | 68.5 m |
250m radius right curve, right edge | 59.2 m |
250m radius left curve, left edge | 53.1 m |
150m radius right curve, right edge | 46.2 m |
150m radius left curve, left edge | 42.8 m |
Front crash prevention: vehicle-to-vehicle
Ratings are given for 2 different trim variations available on this vehicle.
Child seat anchors
Rating applies to 2018-25 models
Overall evaluation | |
Vehicle trim | 2.0T Premium Plus |
Seat type | leather |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
Overall evaluation | |
Vehicle trim | 2.0T Premium Plus |
Seat type | leather |
G | Good |
A | Acceptable |
M | Marginal |
P | Poor |
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
Lower anchor(s) can be borrowed from adjacent positions(s) | |
No hardware available |
Details by seating position
1 | |
---|---|
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
not too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors | |
2 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
none available | |
3 | |
Tether anchor | |
easy-to-find location | |
no other hardware could be confused for anchor | |
Lower anchors | |
not too deep in seat | |
not too much force needed to attach | |
easy to maneuver around anchors |
Seat position 21
Lower anchor A | |
---|---|
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 2 |
Clearance angle (degrees) | 96 |
Lower anchor B | |
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 93 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
Lower anchor A | |
---|---|
No lower latch for this seat position | |
Lower anchor B | |
No lower latch for this seat position | |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
Lower anchor A | |
---|---|
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 88 |
Lower anchor B | |
Open access rated | Yes |
Depth | Visible |
Force (lbs) | 0 |
Clearance angle (degrees) | 91 |
Tether anchor | |
Location | Middle seatback |
Confusing hardware present | Yes |
Has contrasting label within 3 inches of tether anchor |
Yes |
Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
