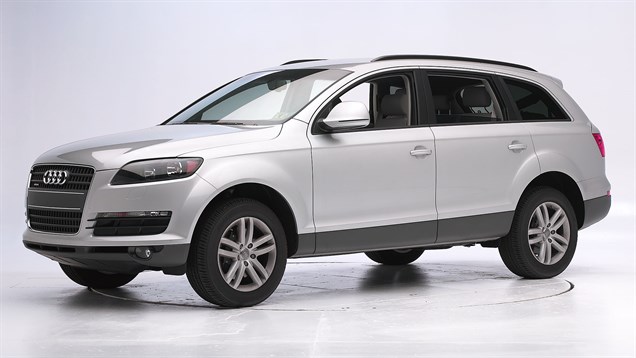

2015 Audi Q7
large SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2007-15 models
Tested vehicle: 2008 Audi Q7 3.6 4-door 4wd
The Audi Q7 was introduced in the 2007 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics | |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
Smeared pink greasepaint indicates where the dummy's head hit the B-pillar and grab handle during rebound. Head acceleration from this hit was negligible.
Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0814 |
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 9 |
| Center (cm) | 10 |
| Right (cm) | 6 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 2 |
| Steering column movement | |
| Upward (cm) | -1 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 0 |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CEF0814 |
| Head | |
| HIC-15 | 253 |
| Peak gs at hard contact | negligible |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 11 |
| Maximum Nij | 0.37 |
| Chest maximum compression (mm) | 41 |
| Legs | |
| Femur force - left (kN) | 3.1 |
| Femur force - right (kN) | 0.3 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.41 |
| Maximum tibia index - right | 0.54 |
| Tibia axial force - left (kN) | 2.0 |
| Tibia axial force - right (kN) | 2.2 |
| Foot acceleration (g) | |
| Left | 57 |
| Right | 78 |
Side: original test
Rating applies to 2007-15 models
Tested vehicle: 2008 Audi Q7 3.6 4-door 4wd with standard head curtain airbags for all three rows of seats and standard front seat-mounted torso airbags
The Audi Q7 was introduced in the 2007 model year.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0831 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0831 |
| Head HIC-15 | 105 |
| Neck | |
| Tension (kN) | 1.0 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 54 |
| Lateral force (kN) | 1.6 |
| Torso | |
| Maximum deflection (mm) | 41 |
| Average deflection (mm) | 33 |
| Maximum deflection rate (m/s) | 2.77 |
| Maximum viscous criterion (m/s) | 0.66 |
| Pelvis | |
| Iliac force (kN) | 1.2 |
| Acetabulum force (kN) | 0.8 |
| Combined force (kN) | 1.8 |
| Left femur | |
| L-M force (kN) | 0.1 |
| L-M moment (Nm) | 65 |
| A-P moment (Nm) | 57 |
Passenger injury measures
| Evaluation criteria | Measurement |
|---|---|
| Test ID | CES0831 |
| Head HIC-15 | 59 |
| Neck | |
| Tension (kN) | 0.3 |
| Compression (kN) | 0.3 |
| Shoulder | |
| Lateral deflection (mm) | 15 |
| Lateral force (kN) | 0.8 |
| Torso | |
| Maximum deflection (mm) | 23 |
| Average deflection (mm) | 15 |
| Maximum deflection rate (m/s) | 2.41 |
| Maximum viscous criterion (m/s) | 0.17 |
| Pelvis | |
| Iliac force (kN) | 0.8 |
| Acetabulum force (kN) | 1.2 |
| Combined force (kN) | 1.9 |
| Left femur | |
| L-M force (kN) | 0.7 |
| L-M moment (Nm) | 87 |
| A-P moment (Nm) | -18 |
Head restraints & seats
Seat type: Power leather seats built after Dec 2007
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Power leather seats mfg after Dec 2007 |
|---|---|
| Geometry | |
| Backset (mm) | 30 |
| Distance below top of head (mm) | 54 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 13.3 |
| Head contact time (ms) | 63 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 2 |
| Max neck tension (N) | 511 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Child seat anchors
Rating applies to 2015 models
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Vehicle trim | TDI Prestige |
| Seat type | leather |
This vehicle has 4 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor only.
| Evaluation criteria | Rating |
|---|---|
| Overall evaluation | |
| Vehicle trim | TDI Prestige |
| Seat type | leather |
| Rating icon | Rating |
|---|---|
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| Position | Rating |
|---|---|
| 1 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| none available | |
| 3 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| not too deep in seat | |
| not too much force needed to attach | |
| easy to maneuver around anchors | |
| 4 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| not too much force needed to attach | |
| difficult to maneuver around anchors | |
| 6 | |
| Tether anchor | |
| hard-to-find location | |
| other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| too much force needed to attach | |
| difficult to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 68 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 68 |
| Tether anchor | |
| Location | Bottom seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| No lower latch for this seat position | |
| Lower anchor B | |
| No lower latch for this seat position | |
| Tether anchor | |
| Location | Bottom seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 59 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 0-2 |
| Force (lbs) | 0 |
| Clearance angle (degrees) | 60 |
| Tether anchor | |
| Location | Bottom seatback |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 31
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 40 |
| Clearance angle (degrees) | 46 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 43 |
| Clearance angle (degrees) | 46 |
| Tether anchor | |
| Location | Floor |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 33
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 19 |
| Clearance angle (degrees) | 52 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 2-4 |
| Force (lbs) | 19 |
| Clearance angle (degrees) | 51 |
| Tether anchor | |
| Location | Floor |
| Confusing hardware present | Yes |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
