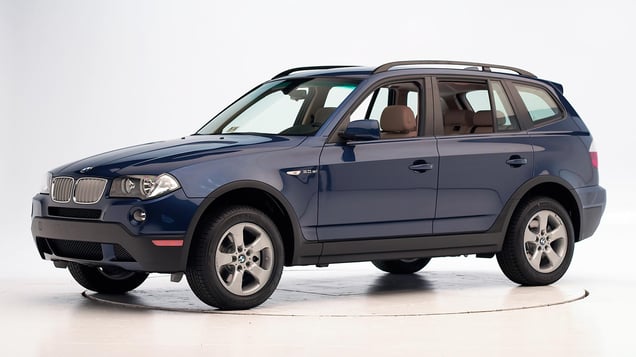

2010 BMW X3
midsize luxury SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2004-10 models
Tested vehicle: 2008 BMW X3 3.0si 4-door 4wd
The BMW X3 was introduced in the 2004 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
Smeared greasepaint indicates where the dummy's head brushed across the side curtain airbag during rebound.
Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0722 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 8 |
| Left (cm) | 6 |
| Center (cm) | 5 |
| Right (cm) | 5 |
| Brake pedal (cm) | 3 |
| Instrument panel rearward movement | |
| Left (cm) | 1 |
| Right (cm) | 2 |
| Steering column movement | |
| Upward (cm) | 7 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Test ID | CEF0722 |
|---|---|
| Head | |
| HIC-15 | 539 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.2 |
| Extension bending moment (Nm) | 18 |
| Maximum Nij | 0.31 |
| Chest maximum compression (mm) | 42 |
| Legs | |
| Femur force - left (kN) | 0.7 |
| Femur force - right (kN) | 1.4 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.45 |
| Maximum tibia index - right | 0.32 |
| Tibia axial force - left (kN) | 2.0 |
| Tibia axial force - right (kN) | 1.9 |
| Foot acceleration (g) | |
| Left | 63 |
| Right | 51 |
Side: original test
Rating applies to 2008-10 models
Tested vehicle: 2008 BMW X3 3.0si 4-door 4wd with standard front and rear head curtain airbags and standard front door-mounted torso airbags
The BMW X3 was introduced in the 2004 model year. Beginning with 2008 models, changes were made to the front torso airbags and the front and rear door trim panels to improve occupant protection in side impact crashes.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side curtain airbag and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0739 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -11.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES0739 |
|---|---|
| Head HIC-15 | 148 |
| Neck | |
| Tension (kN) | 1.2 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 36 |
| Lateral force (kN) | 1.3 |
| Torso | |
| Maximum deflection (mm) | 41 |
| Average deflection (mm) | 34 |
| Maximum deflection rate (m/s) | 4.63 |
| Maximum viscous criterion (m/s) | 0.75 |
| Pelvis | |
| Iliac force (kN) | 2.9 |
| Acetabulum force (kN) | 1.8 |
| Combined force (kN) | 4.6 |
| Left femur | |
| L-M force (kN) | 1.3 |
| L-M moment (Nm) | 157 |
| A-P moment (Nm) | 26 |
Passenger injury measures
| Test ID | CES0739 |
|---|---|
| Head HIC-15 | 103 |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 0.8 |
| Shoulder | |
| Lateral deflection (mm) | 27 |
| Lateral force (kN) | 1.4 |
| Torso | |
| Maximum deflection (mm) | 22 |
| Average deflection (mm) | 18 |
| Maximum deflection rate (m/s) | 2.75 |
| Maximum viscous criterion (m/s) | 0.24 |
| Pelvis | |
| Iliac force (kN) | 1.0 |
| Acetabulum force (kN) | 2.4 |
| Combined force (kN) | 3.2 |
| Left femur | |
| L-M force (kN) | 0.4 |
| L-M moment (Nm) | 46 |
| A-P moment (Nm) | -21 |
Head restraints & seats
Seat type: Standard seats AHR
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Standard seats AHR |
|---|---|
| Geometry | |
| Backset (mm) | 37 |
| Distance below top of head (mm) | 44 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 13.0 |
| Head contact time (ms) | 60 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 1 |
| Max neck tension (N) | 482 |
Seat type: Comfort seats AHR
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Comfort seats AHR |
|---|---|
| Geometry | |
| Backset (mm) | 4 |
| Distance below top of head (mm) | 18 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.0 |
| Head contact time (ms) | 36 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 64 |
| Max neck tension (N) | 453 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
