2018 BMW X5

midsize luxury SUV / 4-door SUV

2018 BMW X5 4-door SUV

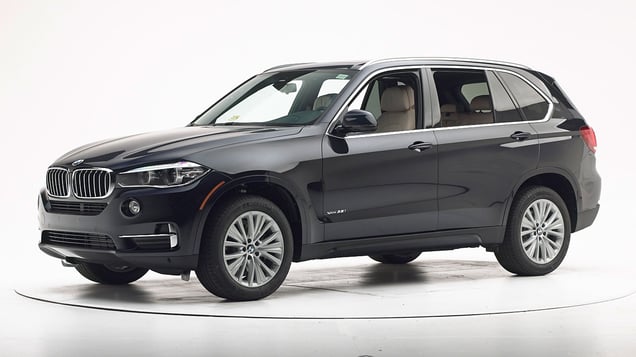

2017 BMW X5 shown

Crashworthiness

Rating overview
Moderate overlap front: original test
Side: original test

Crash avoidance & mitigation

Headlights
Front crash prevention: vehicle-to-vehicle
Optional system
Superior
Optional system
Advanced

Seat belts & child restraints

LATCH ease of use

Other available safety features

  • Optional blind spot detection
  • Optional lane departure warning

Key

  • G
    Good
  • A
    Acceptable
  • M
    Marginal
  • P
    Poor
  • Superior
  • Advanced
  • Basic

Some ratings use a scale of Poor to Good. Others range from Basic to Superior.

Moderate overlap front: original test

Rating applies to 2014-18 models

Tested vehicle: 2014 BMW X5 xDrive35i 4-door 4wd

The BMW X5 was redesigned for the 2014 model year. Moderate overlap frontal ratings are assigned by the Institute based on a test conducted by BMW.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Chest
Leg/foot, left
Leg/foot, right
Driver restraints and dummy kinematics
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTF1307
Footwell intrusion
Footrest (cm) 2
Left (cm) 4
Center (cm) 4
Right (cm) 3
Brake pedal (cm) 2
Instrument panel rearward movement
Left (cm) 0
Right (cm) 0
Steering column movement
Upward (cm) -1
Rearward (cm) -5
A-pillar rearward movement (cm) 0

Driver injury measures

Test ID VTF1307
Head
HIC-15 112
Peak gs at hard contact no contact
Neck
Tension (kN) 0.6
Extension bending moment (Nm) 4
Maximum Nij 0.11
Chest maximum compression (mm) 31
Legs
Femur force - left (kN) 0.4
Femur force - right (kN) 0.7
Knee displacement - left (mm) 0
Knee displacement - right (mm) 2
Maximum tibia index - left 0.30
Maximum tibia index - right 0.36
Tibia axial force - left (kN) 1.9
Tibia axial force - right (kN) 1.5
Foot acceleration (g)
Left 41
Right 48

About the original moderate overlap front test

Side: original test

Rating applies to 2014-18 models

Tested vehicle: 2014 BMW X5 xDrive35i 4-door 4wd with standard front and second row head curtain airbags and front seat-mounted torso airbags

The BMW X5 was redesigned for the 2014 model year. Side ratings are assigned by the Institute based on a test conducted by BMW.

Overall evaluation
Structure and safety cage
Driver injury measures
Head/neck
Torso
Pelvis/leg
Driver head protection
Rear passenger injury measures
Head/neck
Torso
Pelvis/leg
Rear passenger head protection
Technical measurements for this test

Measures of occupant compartment intrusion on driver side

Test ID VTS1308
B-pillar to longitudinal centerline of driver's seat (cm) -25.0
Negative numbers indicate the amount by which the crush stopped short of the seat centerline.

Driver injury measures

Test ID VTS1308
Head HIC-15 107
Neck
Tension (kN) 1.0
Compression (kN) 0.5
Shoulder
Lateral deflection (mm) 30
Lateral force (kN) 1.6
Torso
Maximum deflection (mm) 29
Average deflection (mm) 25
Maximum deflection rate (m/s) 1.97
Maximum viscous criterion (m/s) 0.28
Pelvis
Iliac force (kN) 1.9
Acetabulum force (kN) 1.2
Combined force (kN) 3.1
Left femur
L-M force (kN) 0.3
L-M moment (Nm) 51
A-P moment (Nm) 24

Passenger injury measures

Test ID VTS1308
Head HIC-15 26
Neck
Tension (kN) 0.1
Compression (kN) 0.3
Shoulder
Lateral deflection (mm) 13
Lateral force (kN) 0.7
Torso
Maximum deflection (mm) 32
Average deflection (mm) 22
Maximum deflection rate (m/s) 2.87
Maximum viscous criterion (m/s) 0.36
Pelvis
Iliac force (kN) 0.4
Acetabulum force (kN) 1.9
Combined force (kN) 2.2
Left femur
L-M force (kN) 0.5
L-M moment (Nm) 60
A-P moment (Nm) 24

About the original side crash test

Headlights

Ratings are given for 2 different headlight variations available on this vehicle.

Trim level(s)

  • sDrive35i trim equipped with Lighting package
  • xDrive35i trim equipped with Lighting package
  • xDrive35d trim equipped with Lighting package
  • xDrive50i trim equipped with Lighting package
Low-beam headlight typeLED reflector
High-beam headlight typeLED reflector
Curve-adaptive?Yes
High-beam assist?Yes
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination High-beam assist credit Some glare

Low beams
On the straightaway, visibility was good on the left side of the road and fair on the right side. On curves, visibility was good on both right curves and fair on both left curves.

The low beams created some glare.

High beams
On the straightaway, visibility was good on the right side of the road and inadequate on the left side. On curves, visibility was good on the gradual right and gradual left curves and fair on the sharp right and sharp left curves.

High-beam assist compensates for some limitations of this vehicle's low beams on the straightaway, on both left curves and on both right curves.

Technical measurements for this test
Trim level(s)
  • sDrive35i trim equipped with Lighting package
  • xDrive35i trim equipped with Lighting package
  • xDrive35d trim equipped with Lighting package
  • xDrive50i trim equipped with Lighting package
Low-beam headlight type LED reflector
High-beam headlight type LED reflector
Curve-adaptive? Yes
High-beam assist? Yes
Overall rating
Applies to 2017-18 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 83.2 m None
Straightaway left edge 60.4 m None
250m radius right curve, right edge 67.5 m None
250m radius left curve, left edge 57.0 m None
150m radius right curve, right edge 58.6 m 21.7%
150m radius left curve, left edge 51.0 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 167.4 m
Straightaway left edge 124.9 m
250m radius right curve, right edge 80.7 m
250m radius left curve, left edge 76.5 m
150m radius right curve, right edge 62.8 m
150m radius left curve, left edge 56.7 m

Trim level(s)

  • sDrive35i trim
  • xDrive35i trim
  • xDrive35d trim
  • xDrive50i trim
Low-beam headlight typeHID projector
High-beam headlight typeHID projector
Curve-adaptive?Yes
High-beam assist?No
Overall rating
Distance at which headlights provide at least 5 lux illumination:
car-simpler car-simpler car-simpler car-simpler car-simpler 0 ft 100 ft 200 ft 300 ft 400 ft 500 ft 600 ft Low beams Optimal low-beam illumination High beams Optimal high-beam illumination

Low beams
On the straightaway, visibility was fair on both sides of the road. On curves, visibility was good on both right curves, fair on the sharp left curve and inadequate on the gradual left curve.

The low beams never exceeded glare limits.

High beams
On the straightaway, visibility was good on the right side of the road and fair on the left side. On curves, visibility was good in all 4 tests.

Technical measurements for this test
Trim level(s)
  • sDrive35i trim
  • xDrive35i trim
  • xDrive35d trim
  • xDrive50i trim
Low-beam headlight type HID projector
High-beam headlight type HID projector
Curve-adaptive? Yes
High-beam assist? No
Overall rating
Applies to 2017-18 models
LOW BEAMS Average minimum useful
illumination distance (5 lux)		 Amount glare
exceeded threshold
Straightaway right edge 84.3 m None
Straightaway left edge 50.6 m None
250m radius right curve, right edge 91.9 m None
250m radius left curve, left edge 53.2 m None
150m radius right curve, right edge 71.5 m None
150m radius left curve, left edge 54.2 m None
HIGH BEAMS Average minimum useful
illumination distance (5 lux)
Straightaway right edge 169.7 m
Straightaway left edge 130.0 m
250m radius right curve, right edge 95.6 m
250m radius left curve, left edge 77.0 m
150m radius right curve, right edge 75.1 m
150m radius left curve, left edge 68.6 m

About the headlight evaluation

Front crash prevention: vehicle-to-vehicle

Ratings are given for 2 different trim variations available on this vehicle.

System details

  • Optional Frontal Collision Warning with Extended Collision Mitigation

Package name

  • Optional Driving Assistance Plus

Overall evaluation

Applies to 2018 models

Superior
Superior
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, this vehicle avoided a collision.
  • In the 25 mph test, this vehicle nearly avoided a collision.

System details

  • Optional Frontal Collision Warning with City Collision Mitigation

Package name

  • Optional Driving Assistance

Overall evaluation

Applies to 2018 models

Advanced
Advanced
with optional equipment
  • This system meets the requirements for forward collision warning.
  • In the 12 mph test, impact speed was reduced by 9 mph.
  • In the 25 mph test, impact speed was reduced by 7 mph.

About the original front crash prevention test

Child seat anchors

Rating applies to 2014-18 models

Overall evaluation
Vehicle trimxDrive35i
Seat type leather

This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.

It has 1 additional seating position with a tether anchor only.

Overall evaluation
Vehicle trimxDrive35i
Seat type leather
1 2 3
GGood
AAcceptable
MMarginal
PPoor
Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated.
thether anchor symbol
Tether anchor
lower anchor symbol
Lower anchors
shared lower achors symbol
Lower anchor(s) can be borrowed from adjacent positions(s)
No hardware available

Details by seating position

1
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
2
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
none available
3
Tether anchor
easy-to-find location
no other hardware could be confused for anchor
Lower anchors
too deep in seat
not too much force needed to attach
difficult to maneuver around anchors
Technical measurements for this test

Seat position 21

3

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 31
Clearance angle (degrees) 43
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 26
Clearance angle (degrees) 46
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 22

2

Lower anchor A
No lower latch for this seat position
Lower anchor B
No lower latch for this seat position
Tether anchor
Location Middle seatback
Confusing hardware present No
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

Seat position 23

1

Lower anchor A
Open access rated No
Depth (cm) 2-4
Force (lbs) 29
Clearance angle (degrees) 48
Lower anchor B
Open access rated No
Depth (cm) 2-4
Force (lbs) 25
Clearance angle (degrees) 46
Tether anchor
Location Middle seatback
Confusing hardware present Yes
Has contrasting label
within 3 inches of tether anchor		 Yes
Tether anchors can be accessed
while seatback is properly positioned
for use of LATCH		 Not measured

About the child seat anchor evaluation
