2015 Ford Fiesta
minicar / 4-door sedan
Small overlap front: driver-side
Rating applies to 2014-19 models built after August 2013

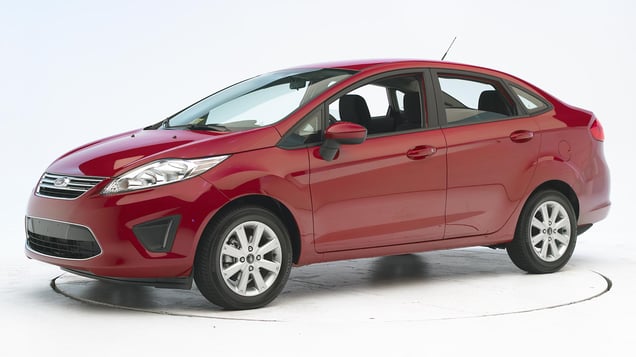

Tested vehicle: 2014 Ford Fiesta S 4-door
The Ford Fiesta was introduced in the 2011 model year. Beginning with 2014 models built after August 2013, the standard autolock feature, which locks all doors when the vehicle speed exceeds 12 mph, was reprogrammed to prevent consumers from disabling this feature. (Information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on the driver door or adjacent B-pillar.)
Drivers of cars built earlier can assure the same level of protection by keeping the autolock feature enabled for cars with power door locks or locking all doors manually. The small overlap frontal ratings also apply to the hatchback version of the Fiesta, also introduced in the 2011 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
|
Driver restraints and dummy kinematics
The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 12 cm to the right. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso, contributing to the head hitting the instrument panel. The side curtain airbag deployed but does not have sufficient forward coverage to protect the head from contact with forward side structure and outside objects, and the driver's seat tipped forward and toward the B-pillar. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space was not maintained well.
During the crash, the dummy's head and torso barely contacted the airbag before sliding off to the left as the steering column moved to the right. The seat belt allowed the dummy to move too far forward, the driver's seat pitched forward and tipped outward, and the head hit the instrument panel.
Door hinge pillar and instrument panel intrusion contributed to a moderate risk of injury to the left lower leg.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1343 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 18 |
| Footrest (cm) | 12 |
| Left toepan (cm) | 11 |
| Brake pedal (cm) | 3 |
| Parking brake (cm) | |
| Rocker panel lateral average (cm) | 3 |
| Upper occupant compartment | |
| Steering column | 5 |
| Upper hinge pillar max (cm) | 19 |
| Upper dash (cm) | 17 |
| Lower instrument panel (cm) | 15 |
Driver injury measures
| Test ID | CEN1343 |
|---|---|
| Head | |
| HIC-15 | 509 |
| Peak gs at hard contact | 77 |
| Neck | |
| Tension (kN) | 1.7 |
| Extension bending moment (Nm) | 43 |
| Maximum Nij | 0.56 |
| Chest maximum compression (mm) | 21 |
| Femur (kN) | |
| Left | 2.7 |
| Right | 1.8 |
| Knee displacement (mm) | |
| Left | 4 |
| Right | 2 |
| Knee-thigh-hip injury risk (%) | |
| Left | 0 |
| Right | 0 |
| Maximum tibia index | |
| Left | 0.86 |
| Right | 0.57 |
| Tibia axial force (kN) | |
| Left | 5.7 |
| Right | 3.4 |
| Foot acceleration (g) | |
| Left | 88 |
| Right | 81 |
Moderate overlap front: original test
Rating applies to 2011-19 models
Tested vehicle: 2011 Ford Fiesta SE 4-door sedan
The Ford Fiesta sedan was introduced in the 2011 model year. The frontal ratings also apply to the hatchback version of the Fiesta, also introduced in the 2011 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained very well.
Smeared greasepaint indicates where the dummy's head contacted the side curtain airbag during rebound.
Intrusion into the driver's space was minimal, and all leg and foot injury measures were low. Smeared greasepaint indicates where the dummy's knees and shins contacted the knee airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF1006 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 6 |
| Left (cm) | 8 |
| Center (cm) | 8 |
| Right (cm) | 4 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 1 |
| Rearward (cm) | -1 |
| A-pillar rearward movement (cm) | 1 |
Driver injury measures
| Test ID | CEF1006 |
|---|---|
| Head | |
| HIC-15 | 315 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.3 |
| Extension bending moment (Nm) | 27 |
| Maximum Nij | 0.24 |
| Chest maximum compression (mm) | 26 |
| Legs | |
| Femur force - left (kN) | 1.7 |
| Femur force - right (kN) | 0.7 |
| Knee displacement - left (mm) | 1 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.31 |
| Maximum tibia index - right | 0.34 |
| Tibia axial force - left (kN) | 2.4 |
| Tibia axial force - right (kN) | 2.0 |
| Foot acceleration (g) | |
| Left | 66 |
| Right | 64 |
Side: original test
Rating applies to 2014-19 models
Tested vehicle: 2014 Ford Fiesta Titanium 4-door with standard front and rear head curtain airbags and standard front seat-mounted torso airbags
The Ford Fiesta sedan was introduced in the 2011 model year. The side impact crash test ratings also apply to the hatchback version of the Fiesta, also introduced in 2011. Beginning with 2014 models, design changes were made to the seat-mounted side torso airbags for front seat occupants and to the front door structure and trim. Side ratings are assigned by the Institute based on a test of a 2014 model conducted by Ford.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
Measures of occupant compartment intrusion on driver side
| Test ID | VTS1230 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -14.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS1230 |
|---|---|
| Head HIC-15 | 292 |
| Neck | |
| Tension (kN) | 0.9 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 55 |
| Lateral force (kN) | 2.3 |
| Torso | |
| Maximum deflection (mm) | 46 |
| Average deflection (mm) | 35 |
| Maximum deflection rate (m/s) | 5.07 |
| Maximum viscous criterion (m/s) | 0.80 |
| Pelvis | |
| Iliac force (kN) | 3.2 |
| Acetabulum force (kN) | 3.0 |
| Combined force (kN) | 5.9 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 34 |
| A-P moment (Nm) | 132 |
Passenger injury measures
| Test ID | VTS1230 |
|---|---|
| Head HIC-15 | 136 |
| Neck | |
| Tension (kN) | 0.2 |
| Compression (kN) | 0.7 |
| Shoulder | |
| Lateral deflection (mm) | 45 |
| Lateral force (kN) | 2.6 |
| Torso | |
| Maximum deflection (mm) | 38 |
| Average deflection (mm) | 27 |
| Maximum deflection rate (m/s) | 2.52 |
| Maximum viscous criterion (m/s) | 0.41 |
| Pelvis | |
| Iliac force (kN) | 0.3 |
| Acetabulum force (kN) | 2.2 |
| Combined force (kN) | 2.2 |
| Left femur | |
| L-M force (kN) | 1.3 |
| L-M moment (Nm) | 37 |
| A-P moment (Nm) | 212 |
Roof strength
Rating applies to 2011-19 models
Tested vehicle: 2011 Ford Fiesta SE 4-door sedan
| Overall evaluation | |
|---|---|
| Curb weight | 2,605 lbs |
| Peak force | 14,122 lbs |
| Strength-to-weight ratio | 5.42 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 11 |
| Distance below top of head (mm) | 22 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.9 |
| Head contact time (ms) | 45 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 0 |
| Max neck tension (N) | 419 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
Child seat anchors
Rating applies to 2015-19 models
| Overall evaluation | |
| Vehicle trim | SE |
| Seat type | cloth |
This vehicle has 2 rear seating positions with complete child seat attachment (LATCH) hardware.
It has 1 additional seating position with a tether anchor and the ability to borrow lower anchors from the other seating positions.
Note: When anchors are borrowed, they aren't available to use in their designated positions.
| Overall evaluation | |
| Vehicle trim | SE |
| Seat type | cloth |
| G | Good |
| A | Acceptable |
| M | Marginal |
| P | Poor |
| Seating positions that rely on borrowed lower anchors or have only a tether anchor available are not rated. | |
thether anchor symbol | Tether anchor |
lower anchor symbol | Lower anchors |
| Lower anchor(s) can be borrowed from adjacent positions(s) | |
| No hardware available |
Details by seating position
| 1 | |
|---|---|
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| too much force needed to attach | |
| difficult to maneuver around anchors | |
| 2 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| Can be borrowed from 1 and 3 | |
| 3 | |
| Tether anchor | |
| easy-to-find location | |
| no other hardware could be confused for anchor | |
| Lower anchors | |
| too deep in seat | |
| too much force needed to attach | |
| difficult to maneuver around anchors |
Seat position 21
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 4-6 |
| Force (lbs) | 56 |
| Clearance angle (degrees) | 45 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 4-6 |
| Force (lbs) | 50 |
| Clearance angle (degrees) | 34 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 22
| Lower anchor A | |
|---|---|
| Lower latch is shared for this seat position | |
| Lower anchor B | |
| Lower latch is shared for this seat position | |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
Seat position 23
| Lower anchor A | |
|---|---|
| Open access rated | No |
| Depth (cm) | 4-6 |
| Force (lbs) | 51 |
| Clearance angle (degrees) | 39 |
| Lower anchor B | |
| Open access rated | No |
| Depth (cm) | 4-6 |
| Force (lbs) | 56 |
| Clearance angle (degrees) | 37 |
| Tether anchor | |
| Location | Middle seatback |
| Confusing hardware present | No |
| Has contrasting label within 3 inches of tether anchor |
No |
| Tether anchors can be accessed while seatback is properly positioned for use of LATCH |
Not measured |
