2010 Ford Mustang
midsize convertible / 2-door convertible
Moderate overlap front: original test
Rating applies to 2010-14 models built after December 2009

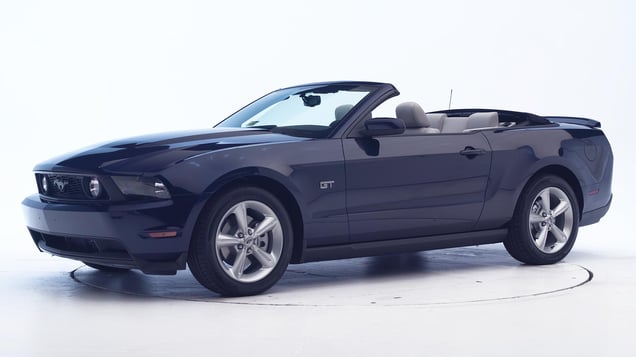

Tested vehicle: 2010 Ford Mustang GT convertible
The Ford Mustang was re-engineered and restyled for the 2010 model year.
Two tests of a 2010 Mustang convertible were conducted. In the first test, forces recorded on the dummy's neck were high, leading to a poor head/neck injury rating and a poor overall rating. In response, Ford modified the convertible's front structure and the doors to improve occupant protection in frontal offset crashes beginning with cars manufactured after December 2009 (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door).
In the second test of a car built after the structural modifications were in place, the head/neck and overall ratings improved to good.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
Smeared greasepaint shows where the dummy's head contacted the side airbag and head restraint during rebound.
Despite moderate intrusion into the driver footwell, all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF1001 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 13 |
| Left (cm) | 16 |
| Center (cm) | 18 |
| Right (cm) | 16 |
| Brake pedal (cm) | 7 |
| Instrument panel rearward movement | |
| Left (cm) | 4 |
| Right (cm) | 3 |
| Steering column movement | |
| Upward (cm) | 3 |
| Rearward (cm) | 5 |
| A-pillar rearward movement (cm) | 7 |
Driver injury measures
| Test ID | CEF1001 |
|---|---|
| Head | |
| HIC-15 | 151 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 0.9 |
| Extension bending moment (Nm) | 20 |
| Maximum Nij | 0.19 |
| Chest maximum compression (mm) | 32 |
| Legs | |
| Femur force - left (kN) | 2.9 |
| Femur force - right (kN) | 2.7 |
| Knee displacement - left (mm) | 5 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.38 |
| Maximum tibia index - right | 0.46 |
| Tibia axial force - left (kN) | 1.7 |
| Tibia axial force - right (kN) | 2.0 |
| Foot acceleration (g) | |
| Left | 53 |
| Right | 59 |
Rating applies to 2010 models built before January 2010
Tested vehicle: 2010 Ford Mustang GT convertible
The Ford Mustang was re-engineered and restyled for the 2010 model year.
Two tests of a 2010 Mustang convertible were conducted. In the first test as detailed here, the head/neck and overall ratings were poor. In response, Ford modified the convertible's front structure and the doors to improve occupant protection in frontal offset crashes beginning with cars manufactured after December 2009 (note: information about when a specific vehicle was manufactured is on the certification label typically affixed to the car on or near the driver door).
In the second test of a car built after the structural modifications were in place, the head/neck and overall ratings improved to good.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics Dummy movement wasn't well controlled. The dummy's head hit the A-pillar, which bent downward and inward during the crash. There was also too much rearward movement of the steering wheel. |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
Smeared greasepaint indicates where the dummy's head hit the A-pillar. Forces on the neck and head acceleration from this hit were high.
Despite moderate intrusion into the driver footwell, all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0915 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 15 |
| Left (cm) | 19 |
| Center (cm) | 23 |
| Right (cm) | 16 |
| Brake pedal (cm) | 11 |
| Instrument panel rearward movement | |
| Left (cm) | 7 |
| Right (cm) | 5 |
| Steering column movement | |
| Upward (cm) | 5 |
| Rearward (cm) | 11 |
| A-pillar rearward movement (cm) | 12 |
Driver injury measures
| Test ID | CEF0915 |
|---|---|
| Head | |
| HIC-15 | 298 |
| Peak gs at hard contact | 92 |
| Neck | |
| Tension (kN) | 0.7 |
| Extension bending moment (Nm) | 34 |
| Maximum Nij | 0.80 |
| Chest maximum compression (mm) | 26 |
| Legs | |
| Femur force - left (kN) | 3.3 |
| Femur force - right (kN) | 2.4 |
| Knee displacement - left (mm) | 8 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.40 |
| Maximum tibia index - right | 0.34 |
| Tibia axial force - left (kN) | 1.3 |
| Tibia axial force - right (kN) | 1.5 |
| Foot acceleration (g) | |
| Left | 56 |
| Right | 103 |
Side: original test
Rating applies to 2010-14 models
Tested vehicle: 2010 Ford Mustang convertible with standard front seat-mounted combination head and torso airbags
The Ford Mustang was re-engineered and restyled for the 2010 model year. Side ratings are assigned by the Institute based on a test conducted by Ford.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection The dummy's head was hit by the interior side trim and convertible boot (cover for the folded roof). These impacts did not produce high head injury measures, but the head protection is inadequate. |
|
Measures of occupant compartment intrusion on driver side
| Test ID | VTS0908 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -17.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | VTS0908 |
|---|---|
| Head HIC-15 | 224 |
| Neck | |
| Tension (kN) | 0.7 |
| Compression (kN) | 0.9 |
| Shoulder | |
| Lateral deflection (mm) | 40 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 44 |
| Average deflection (mm) | 36 |
| Maximum deflection rate (m/s) | 3.70 |
| Maximum viscous criterion (m/s) | 0.83 |
| Pelvis | |
| Iliac force (kN) | 1.3 |
| Acetabulum force (kN) | 2.7 |
| Combined force (kN) | 3.8 |
| Left femur | |
| L-M force (kN) | 0.7 |
| L-M moment (Nm) | 123 |
| A-P moment (Nm) | 28 |
Passenger injury measures
| Test ID | VTS0908 |
|---|---|
| Head HIC-15 | 308 |
| Neck | |
| Tension (kN) | 1.3 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 32 |
| Lateral force (kN) | 1.8 |
| Torso | |
| Maximum deflection (mm) | 34 |
| Average deflection (mm) | 20 |
| Maximum deflection rate (m/s) | 3.30 |
| Maximum viscous criterion (m/s) | 0.58 |
| Pelvis | |
| Iliac force (kN) | 1.2 |
| Acetabulum force (kN) | 1.4 |
| Combined force (kN) | 2.5 |
| Left femur | |
| L-M force (kN) | 0.8 |
| L-M moment (Nm) | 92 |
| A-P moment (Nm) | 14 |
Head restraints & seats
Seat type: Manual - power seats with 2-way head restraint manufactured before Aug 2011
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual - power seats with 2-way head restraint manufactured before Aug 2011 |
|---|---|
| Geometry | |
| Backset (mm) | 12 |
| Distance below top of head (mm) | 30 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 12.5 |
| Head contact time (ms) | 66 |
| Force rating | 1 |
| Neck forces | |
| Max neck shear force (N) | 2 |
| Max neck tension (N) | 544 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
