Moderate overlap front: original test
Rating applies to 2003-06 models

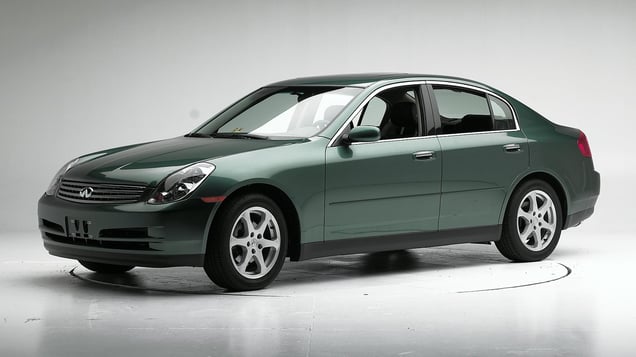

Tested vehicle: 2003 Infiniti G35 4-door
The Infiniti G35 was introduced in the 2003 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
The frontal airbag and both side airbags inflated for the driver dummy. Smeared greasepaint indicates where the dummy's head hit the side curtain airbag, its fabric cover, and the head restraint during rebound.
Forces on both legs and feet were low, indicating that significant injury was unlikely.
Measures of occupant compartment intrusion on driver side
Test ID | CEF0307 |
---|---|
Footwell intrusion | |
Footrest (cm) | 10 |
Left (cm) | 11 |
Center (cm) | 13 |
Right (cm) | 8 |
Brake pedal (cm) | 11 |
Instrument panel rearward movement | |
Left (cm) | 2 |
Right (cm) | 4 |
Steering column movement | |
Upward (cm) | 9 |
Rearward (cm) | -1 |
A-pillar rearward movement (cm) | 2 |
Driver injury measures
Test ID | CEF0307 |
---|---|
Head | |
HIC-15 | 289 |
Peak gs at hard contact | 80 |
Neck | |
Tension (kN) | 1.3 |
Extension bending moment (Nm) | 21 |
Maximum Nij | 0.35 |
Chest maximum compression (mm) | 25 |
Legs | |
Femur force - left (kN) | 6.0 |
Femur force - right (kN) | 3.7 |
Knee displacement - left (mm) | 4 |
Knee displacement - right (mm) | 2 |
Maximum tibia index - left | 0.38 |
Maximum tibia index - right | 0.56 |
Tibia axial force - left (kN) | 1.3 |
Tibia axial force - right (kN) | 1.5 |
Foot acceleration (g) | |
Left | 81 |
Right | 49 |
Head restraints & seats
Seat type: All seats AHR manufactured after Aug 2004
Overall evaluation | |
---|---|
Dynamic rating | |
Seat/head restraint geometry |
Seat type | All seats AHR manufactured after Aug 2004 |
---|---|
Geometry | |
Backset (mm) | 32 |
Distance below top of head (mm) | 58 |
Seat design parameters | |
Pass/fail | Fail |
Max T1 acceleration (g) | 9.7 |
Head contact time (ms) | 105 |
Force rating | 3 |
Neck forces | |
Max neck shear force (N) | 220 |
Max neck tension (N) | 782 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
