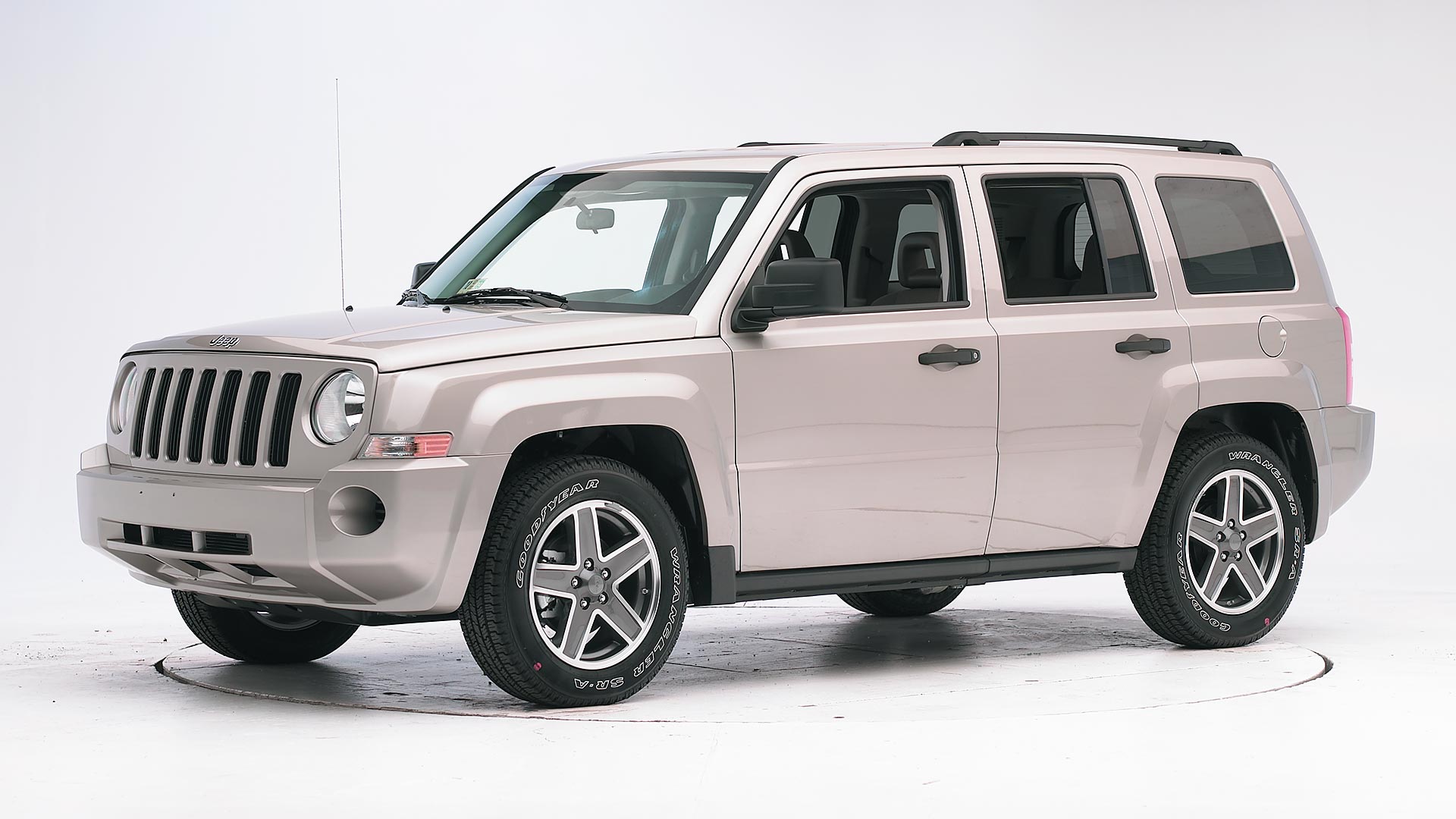

2009 Jeep Patriot
small SUV / 4-door SUV
Small overlap front: driver-side
Rating applies to 2007-17 models
Tested vehicle: 2012 Jeep Patriot Sport 4-door 4wd
The Jeep Patriot was introduced in the 2007 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Hip/thigh | |
| Lower leg/foot | |
| Driver restraints and dummy kinematics The dummy’s head barely contacted the frontal airbag before sliding off the left side as the steering column moved 21 cm upward and 15 cm to the right, resulting in little airbag cushioning for the chest and leaving the head vulnerable to contact with forward side structure. Additionally, the seat belt allowed excessive forward excursion of the dummy’s head and torso, and the driver's seat tipped forward and toward the B-pillar. The side curtain airbag did not deploy, leaving the dummy's head vulnerable to contacts with side structure and outside objects. |
Action shot taken during the small overlap frontal crash test.
The dummy's position in relation to the door frame, steering wheel, and instrument panel after the crash test indicates that the driver's survival space wasn't maintained well.
During the crash, the dummy's head barely contacted the airbag before sliding off to the left, and the seat belt allowed the dummy to move too far forward, as is evident from the gap between the seat back and the dummy's torso.
Extensive intrusion of the door hinge pillar and instrument panel contributed to a high risk of injury to the left lower leg and a moderate risk to the left thigh and right lower leg.
Measures of occupant compartment intrusion on driver side
| Test ID | CEN1226 |
|---|---|
| Lower occupant compartment | |
| Lower hinge pillar max (cm) | 29 |
| Footrest (cm) | 27 |
| Left toepan (cm) | 19 |
| Brake pedal (cm) | 13 |
| Parking brake (cm) | 0 |
| Rocker panel lateral average (cm) | 9 |
| Upper occupant compartment | |
| Steering column | 9 |
| Upper hinge pillar max (cm) | 23 |
| Upper dash (cm) | 25 |
| Lower instrument panel (cm) | 20 |
Driver injury measures
| Test ID | CEN1226 |
|---|---|
| Head | |
| HIC-15 | 81 |
| Peak gs at hard contact | no contact |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 15 |
| Maximum Nij | 0.28 |
| Chest maximum compression (mm) | 27 |
| Femur (kN) | |
| Left | 6.7 |
| Right | 2.0 |
| Knee displacement (mm) | |
| Left | 7 |
| Right | 1 |
| Knee-thigh-hip injury risk (%) | |
| Left | 9 |
| Right | 0 |
| Maximum tibia index | |
| Left | 1.42 |
| Right | 0.82 |
| Tibia axial force (kN) | |
| Left | 2.8 |
| Right | 4.2 |
| Foot acceleration (g) | |
| Left | 62 |
| Right | 140 |
Moderate overlap front: original test
Rating applies to 2007-17 models
Tested vehicle: 2008 Jeep Patriot Sport 4-door 4wd
The Jeep Patriot was introduced in the 2007 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
A high head acceleration occurred when the dummy's head hit the steering wheel through the airbag.
Intrusion into the driver's space was minimal, and all leg and foot injury measures were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0808 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 7 |
| Left (cm) | 11 |
| Center (cm) | 11 |
| Right (cm) | 9 |
| Brake pedal (cm) | 3 |
| Instrument panel rearward movement | |
| Left (cm) | 2 |
| Right (cm) | 2 |
| Steering column movement | |
| Upward (cm) | 5 |
| Rearward (cm) | -2 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | CEF0808 |
|---|---|
| Head | |
| HIC-15 | 494 |
| Peak gs at hard contact | 78 |
| Neck | |
| Tension (kN) | 1.5 |
| Extension bending moment (Nm) | 23 |
| Maximum Nij | 0.39 |
| Chest maximum compression (mm) | 25 |
| Legs | |
| Femur force - left (kN) | 1.7 |
| Femur force - right (kN) | 2.4 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 0 |
| Maximum tibia index - left | 0.65 |
| Maximum tibia index - right | 0.78 |
| Tibia axial force - left (kN) | 1.5 |
| Tibia axial force - right (kN) | 3.6 |
| Foot acceleration (g) | |
| Left | 70 |
| Right | 86 |
Side: original test
Rating applies to 2007-13 models
Tested vehicle: 2008 Jeep Patriot Sport 4-door 4wd with standard front and rear head curtain airbags and optional front seat-mounted torso airbags
The Jeep Patriot was introduced in the 2007 model year.
The side impact crash test ratings also apply to Jeep Compass, a vehicle similar to the Patriot but with a different roofline, beginning with 2007 models.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbags and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag (side torso airbag is hidden behind the curtain airbag).
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0824 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -16.5 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES0824 |
|---|---|
| Head HIC-15 | 179 |
| Neck | |
| Tension (kN) | 1.5 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 59 |
| Lateral force (kN) | 2.2 |
| Torso | |
| Maximum deflection (mm) | 43 |
| Average deflection (mm) | 36 |
| Maximum deflection rate (m/s) | 4.52 |
| Maximum viscous criterion (m/s) | 0.77 |
| Pelvis | |
| Iliac force (kN) | 1.0 |
| Acetabulum force (kN) | 2.8 |
| Combined force (kN) | 3.5 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 114 |
| A-P moment (Nm) | 44 |
Passenger injury measures
| Test ID | CES0824 |
|---|---|
| Head HIC-15 | 292 |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 0.8 |
| Shoulder | |
| Lateral deflection (mm) | 60 |
| Lateral force (kN) | 3.7 |
| Torso | |
| Maximum deflection (mm) | 48 |
| Average deflection (mm) | 32 |
| Maximum deflection rate (m/s) | 4.97 |
| Maximum viscous criterion (m/s) | 0.98 |
| Pelvis | |
| Iliac force (kN) | 0.2 |
| Acetabulum force (kN) | 2.6 |
| Combined force (kN) | 2.6 |
| Left femur | |
| L-M force (kN) | 0.3 |
| L-M moment (Nm) | 131 |
| A-P moment (Nm) | -48 |
Rating applies to 2007-13 models
Tested vehicle: 2008 Jeep Patriot Sport 4-door 4wd with standard front and rear head curtain airbags
The Jeep Patriot and Compass were introduced in the 2007 model year.
The side impact crash test ratings also apply to Jeep Compass, a vehicle similar to the Patriot but with a different roofline, beginning with 2007 models.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbag and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side airbags.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0825 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | -15.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES0825 |
|---|---|
| Head HIC-15 | 318 |
| Neck | |
| Tension (kN) | 1.3 |
| Compression (kN) | 0.0 |
| Shoulder | |
| Lateral deflection (mm) | 66 |
| Lateral force (kN) | 6.8 |
| Torso | |
| Maximum deflection (mm) | 51 |
| Average deflection (mm) | 45 |
| Maximum deflection rate (m/s) | 7.06 |
| Maximum viscous criterion (m/s) | 1.87 |
| Pelvis | |
| Iliac force (kN) | 1.7 |
| Acetabulum force (kN) | 3.1 |
| Combined force (kN) | 4.2 |
| Left femur | |
| L-M force (kN) | 0.5 |
| L-M moment (Nm) | 154 |
| A-P moment (Nm) | 64 |
Passenger injury measures
| Test ID | CES0825 |
|---|---|
| Head HIC-15 | 234 |
| Neck | |
| Tension (kN) | 0.0 |
| Compression (kN) | 0.8 |
| Shoulder | |
| Lateral deflection (mm) | 58 |
| Lateral force (kN) | 1.9 |
| Torso | |
| Maximum deflection (mm) | 44 |
| Average deflection (mm) | 27 |
| Maximum deflection rate (m/s) | 4.46 |
| Maximum viscous criterion (m/s) | 0.79 |
| Pelvis | |
| Iliac force (kN) | 0.8 |
| Acetabulum force (kN) | 2.5 |
| Combined force (kN) | 3.0 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 99 |
| A-P moment (Nm) | -35 |
Roof strength
Rating applies to 2007-17 models
Tested vehicle: 2009 Jeep Patriot Sport 4-door 2wd
(Curb weight from 2008 Jeep Patriot Sport 4-door 4wd)
| Overall evaluation | |
|---|---|
| Curb weight | 3,393 lbs |
| Peak force | 14,419 lbs |
| Strength-to-weight ratio | 4.25 |
Head restraints & seats
Seat type: Manual cloth seats
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Manual cloth seats |
|---|---|
| Geometry | |
| Backset (mm) | 48 |
| Distance below top of head (mm) | 48 |
| Seat design parameters | |
| Pass/fail | Pass |
| Max T1 acceleration (g) | 10.6 |
| Head contact time (ms) | 62 |
| Force rating | 2 |
| Neck forces | |
| Max neck shear force (N) | 192 |
| Max neck tension (N) | 575 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
