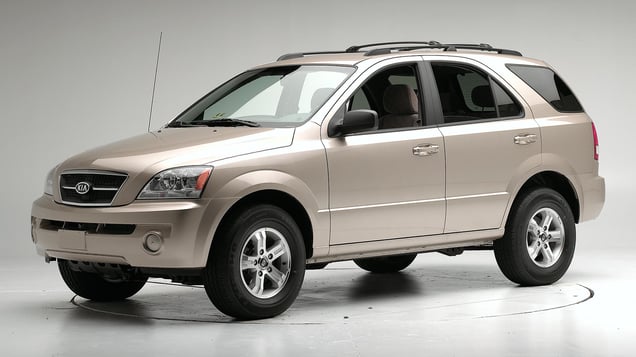

2005 Kia Sorento
midsize SUV / 4-door SUV
Moderate overlap front: original test
Rating applies to 2003-06 models
Tested vehicle: 2003 Kia Sorento LX 4-door 4wd
The Kia Sorento was introduced in the 2003 model year. Kia has made seat belt and frontal airbag modifications and added a knee airbag beginning with 2007 models, so these ratings do not apply to vehicles built after the 2006 model year.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Chest | |
| Leg/foot, left | |
| Leg/foot, right | |
| Driver restraints and dummy kinematics Dummy movement was reasonably well controlled. During rebound, the dummy's head hit the B-pillar. Plus the driver's seat tipped toward the door. |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained well.
A high head acceleration occurred when the dummy's head bottomed out the airbag and hit the steering wheel.
Intrusion into the driver's space was minimal, and forces on the legs and feet were low.
Measures of occupant compartment intrusion on driver side
| Test ID | CEF0318 |
|---|---|
| Footwell intrusion | |
| Footrest (cm) | 13 |
| Left (cm) | 10 |
| Center (cm) | 8 |
| Right (cm) | 7 |
| Brake pedal (cm) | 5 |
| Instrument panel rearward movement | |
| Left (cm) | 0 |
| Right (cm) | 1 |
| Steering column movement | |
| Upward (cm) | 0 |
| Rearward (cm) | -4 |
| A-pillar rearward movement (cm) | 2 |
Driver injury measures
| Test ID | CEF0318 |
|---|---|
| Head | |
| HIC-15 | 552 |
| Peak gs at hard contact | 87 |
| Neck | |
| Tension (kN) | 2.2 |
| Extension bending moment (Nm) | 55 |
| Maximum Nij | 0.42 |
| Chest maximum compression (mm) | 37 |
| Legs | |
| Femur force - left (kN) | 3.6 |
| Femur force - right (kN) | 3.8 |
| Knee displacement - left (mm) | 0 |
| Knee displacement - right (mm) | 3 |
| Maximum tibia index - left | 0.34 |
| Maximum tibia index - right | 0.34 |
| Tibia axial force - left (kN) | 2.1 |
| Tibia axial force - right (kN) | 3.8 |
| Foot acceleration (g) | |
| Left | 127 |
| Right | 109 |
Side: original test
Rating applies to 2003-09 models
Tested vehicle: 2008 Kia Sorento LX 4-door 4wd with standard front and rear head curtain airbags
The Kia Sorento was introduced in the 2003 model year. Although engineering changes were made to improve frontal crashworthiness beginning with 2007 models, these changes were not expected to affect side-impact performance.
| Overall evaluation | |
|---|---|
| Structure and safety cage | |
| Driver injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Driver head protection | |
| Rear passenger injury measures | |
| Head/neck | |
| Torso | |
| Pelvis/leg | |
| Rear passenger head protection | |
View of the vehicle and barrier just after the crash test.
View of the vehicle after the crash with doors removed, showing the side airbag and damage to the occupant compartment.
Smeared greasepaint shows where the driver dummy's head was protected from being hit by hard structures by the side curtain airbag.
Smeared greasepaint shows where the rear passenger dummy’s head was protected by the side airbag.
Measures of occupant compartment intrusion on driver side
| Test ID | CES0747 |
|---|---|
| B-pillar to longitudinal centerline of driver's seat (cm) | 0.0 |
| Negative numbers indicate the amount by which the crush stopped short of the seat centerline. | |
Driver injury measures
| Test ID | CES0747 |
|---|---|
| Head HIC-15 | 344 |
| Neck | |
| Tension (kN) | 2.1 |
| Compression (kN) | 0.1 |
| Shoulder | |
| Lateral deflection (mm) | 61 |
| Lateral force (kN) | 2.2 |
| Torso | |
| Maximum deflection (mm) | 45 |
| Average deflection (mm) | 33 |
| Maximum deflection rate (m/s) | 7.11 |
| Maximum viscous criterion (m/s) | 1.33 |
| Pelvis | |
| Iliac force (kN) | 6.4 |
| Acetabulum force (kN) | 2.7 |
| Combined force (kN) | 7.0 |
| Left femur | |
| L-M force (kN) | 0.6 |
| L-M moment (Nm) | 98 |
| A-P moment (Nm) | 18 |
Passenger injury measures
| Test ID | CES0747 |
|---|---|
| Head HIC-15 | 493 |
| Neck | |
| Tension (kN) | 0.1 |
| Compression (kN) | 1.0 |
| Shoulder | |
| Lateral deflection (mm) | 15 |
| Lateral force (kN) | 1.0 |
| Torso | |
| Maximum deflection (mm) | 23 |
| Average deflection (mm) | 16 |
| Maximum deflection rate (m/s) | 3.07 |
| Maximum viscous criterion (m/s) | 0.25 |
| Pelvis | |
| Iliac force (kN) | 2.1 |
| Acetabulum force (kN) | 1.0 |
| Combined force (kN) | 2.9 |
| Left femur | |
| L-M force (kN) | 0.7 |
| L-M moment (Nm) | 92 |
| A-P moment (Nm) | -38 |
Head restraints & seats
Seat type: Seats with head restraint tilt lock
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Seats with head restraint tilt lock |
|---|---|
| Geometry | |
| Backset (mm) | 38 |
| Distance below top of head (mm) | 75 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 9.6 |
| Head contact time (ms) | 96 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 237 |
| Max neck tension (N) | 745 |
Seat type: Seats without head restraint tilt lock
| Overall evaluation | |
|---|---|
| Dynamic rating | |
| Seat/head restraint geometry |
| Seat type | Seats without head restraint tilt lock |
|---|---|
| Geometry | |
| Backset (mm) | 85 |
| Distance below top of head (mm) | 65 |
| Seat design parameters | |
| Pass/fail | Fail |
| Max T1 acceleration (g) | 11.1 |
| Head contact time (ms) | 106 |
| Force rating | 3 |
| Neck forces | |
| Max neck shear force (N) | 186 |
| Max neck tension (N) | 987 |
About the head restraint & seat test
Currently, IIHS tests apply only to front seats.
