Moderate overlap front: original test
Rating applies to 1995-2002 models

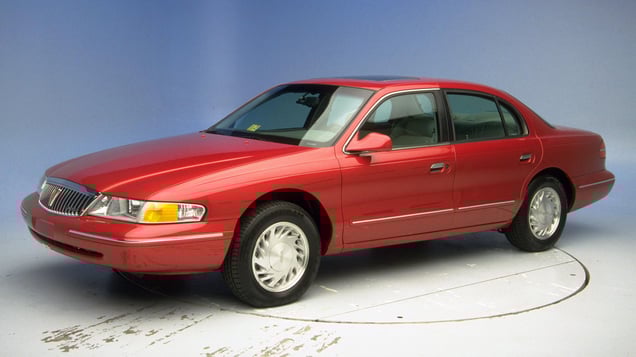

Tested vehicle: 1997 Lincoln Continental 4-door
The Lincoln Continental was redesigned for the 1995 model year.
Overall evaluation | |
---|---|
Structure and safety cage | |
Driver injury measures | |
Head/neck | |
Chest | |
Leg/foot, left | |
Leg/foot, right | |
Driver restraints and dummy kinematics |
Action shot taken during the frontal offset crash test.
The dummy's position in relation to the steering wheel and instrument panel after the crash test indicates that the driver's survival space was maintained reasonably well.
The forces on the dummy's left lower leg would be sufficient to break a driver's leg.
Forces on the neck were moderately high as the dummy rebounded, indicating the possibility of injury.
Technical measurements for this test
Measures of occupant compartment intrusion on driver side
Test ID | CF97006 |
---|---|
Footwell intrusion | |
Footrest (cm) | 17 |
Left (cm) | 23 |
Center (cm) | 25 |
Right (cm) | 22 |
Brake pedal (cm) | 23 |
Instrument panel rearward movement | |
Left (cm) | 13 |
Right (cm) | 12 |
Steering column movement | |
Upward (cm) | 6 |
Rearward (cm) | 8 |
A-pillar rearward movement (cm) | 11 |
Driver injury measures
Test ID | CF97006 |
---|---|
Head | |
HIC-15 | 248 |
Peak gs at hard contact | no contact |
Neck | |
Tension (kN) | 1.6 |
Extension bending moment (Nm) | 40 |
Maximum Nij | 0.32 |
Chest maximum compression (mm) | 33 |
Legs | |
Femur force - left (kN) | 9.0 |
Femur force - right (kN) | 2.3 |
Knee displacement - left (mm) | 5 |
Knee displacement - right (mm) | 0 |
Maximum tibia index - left | 1.61 |
Maximum tibia index - right | 0.84 |
Tibia axial force - left (kN) | 2.6 |
Tibia axial force - right (kN) | 1.5 |
Foot acceleration (g) | |
Left | 79 |
Right | 50 |
